Hi-Fi A85S/Hi-Fi A75S
19

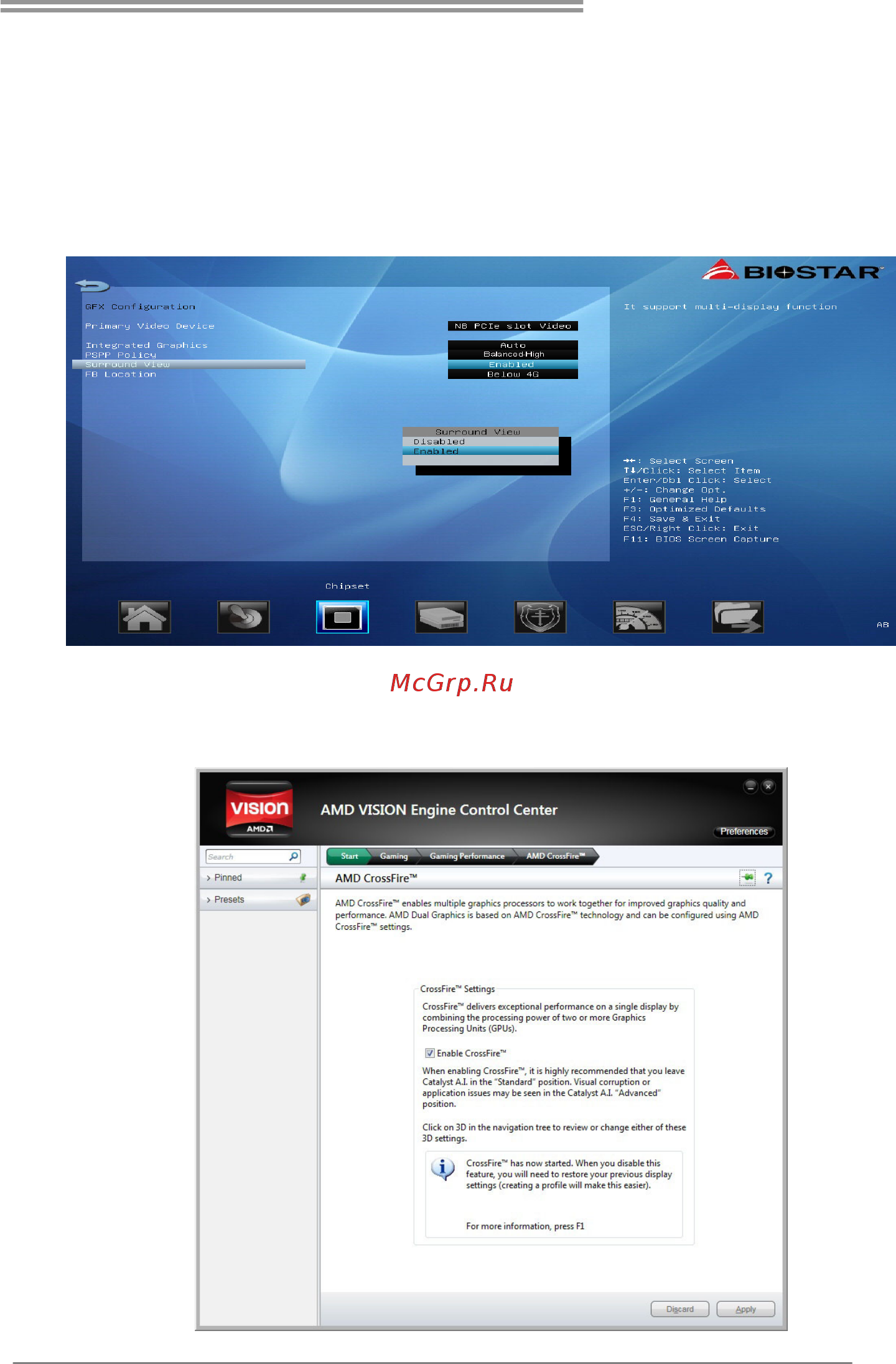

4.3 AMD DUAL GRAPHICS SETUP
Step 1: Insert Dual Graphics-Ready graphics card into PEX16_1 slot.
Step 2: Set the BIOS setting as follows:
[Chipset]→[North Bridge]→[GFX Configuration]→[Surround View]→
[Enabled]
Step 3: Install Driver DVD Chipset Driver, and reboot the system. Activate AMD
VISION Engine Control Center to make sure CrossFire has been
enabled.
