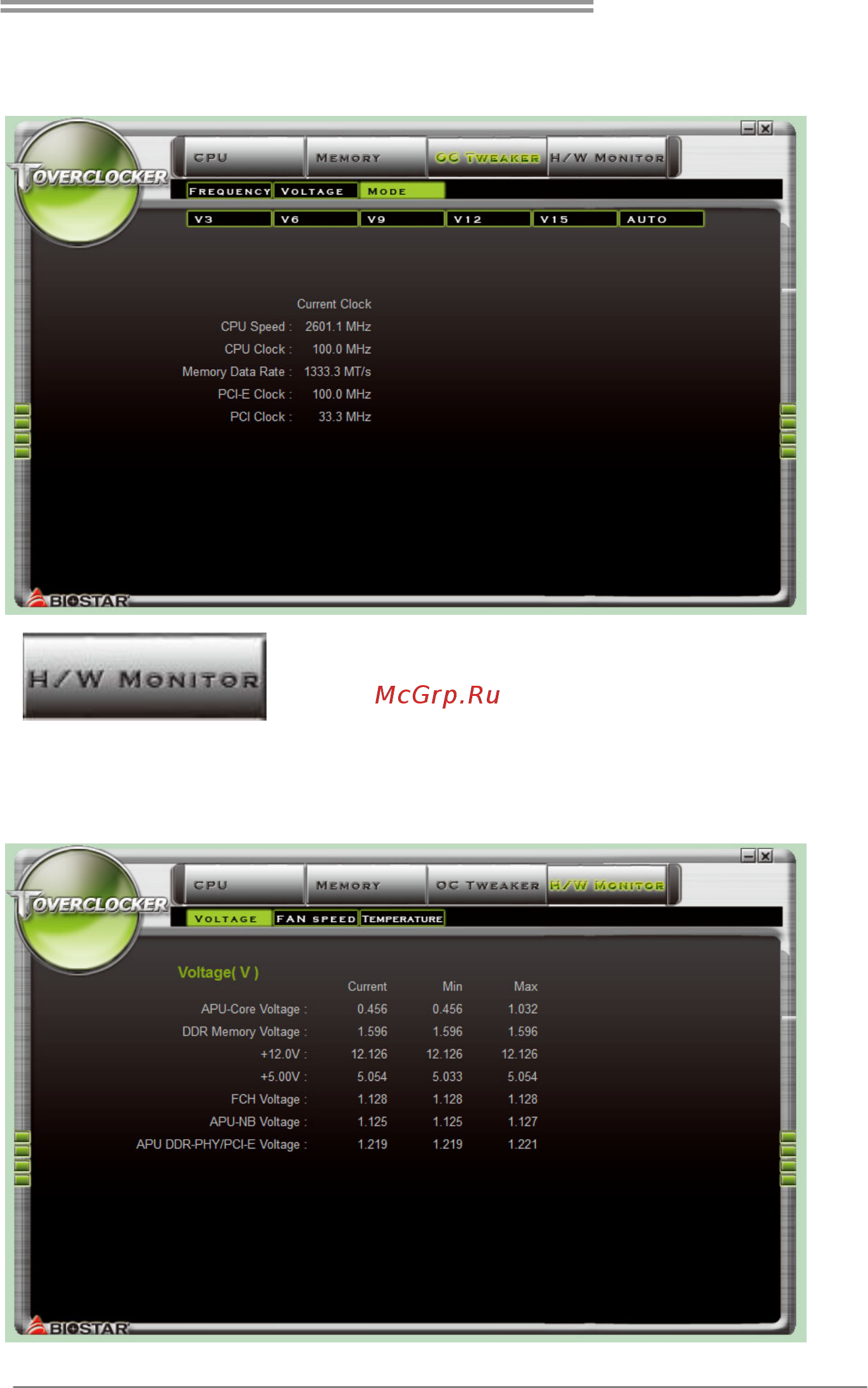

Hi-Fi A85S/Hi-Fi A75S
29
Six Pre-set Modes: V3, V6, V9, V12, V15, AUTO for different overclocking
experience. (The screenshot below is for reference only)
The HW Monitor tab allows you to monitor hardware voltage, fan speed, and
temperature. Besides, you also can set related values for CPU Smart Fan.
(The screenshot below is for reference only)
