Motherboard Manual
6

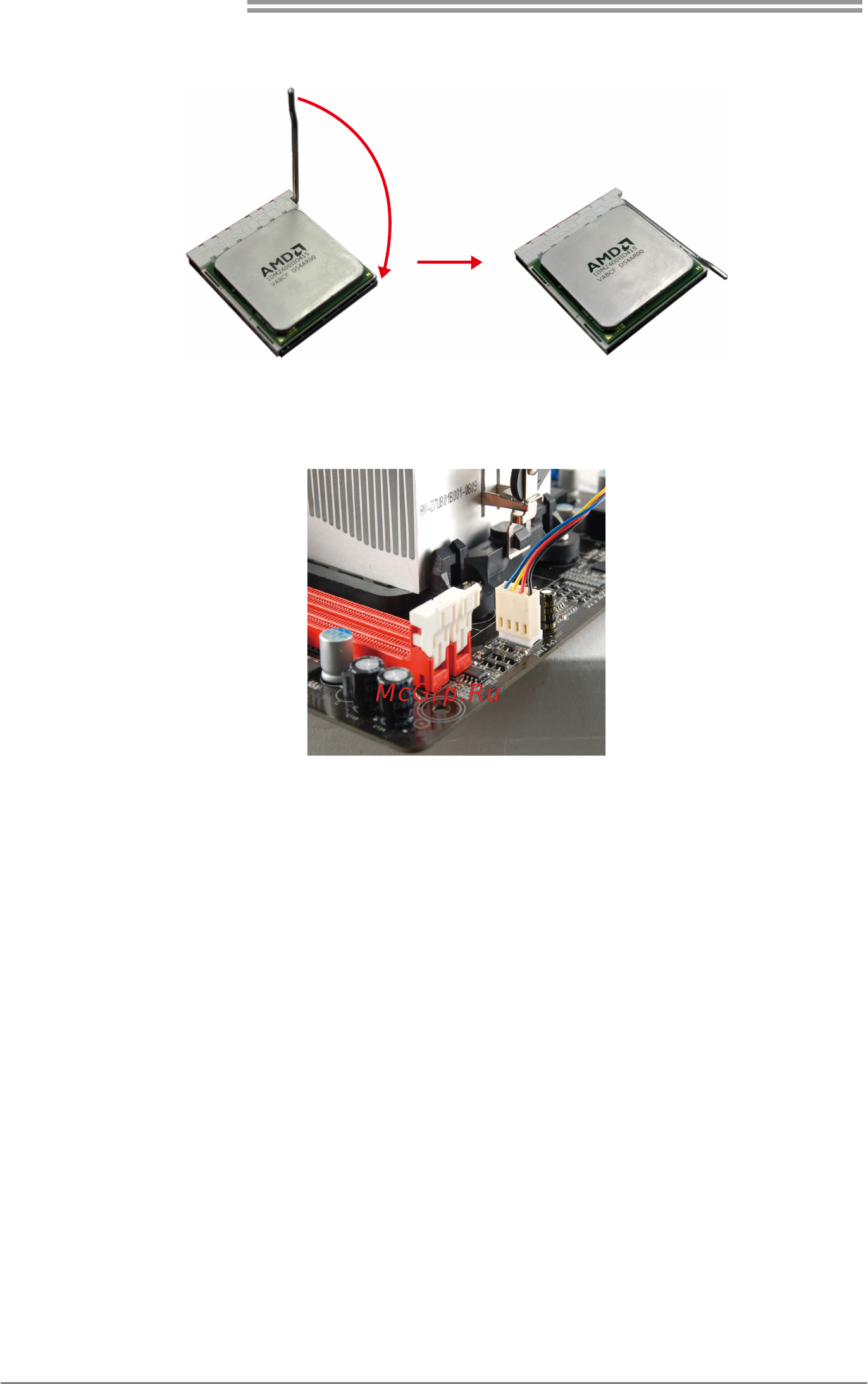

Step 3: Hold the CPU down firmly, and then close the lever to locked the
position
Step 4: Put the CPU Fan on the CPU and buckle it. Connect the CPU FAN
power cable to the CPU_FAN1. This completes the installation.
