TPP 15A-D Series, 15 Watt
www.tracopower.com
© Copyright 2018 Traco Electronic AG Specifications can be changed without notice!
Page 4 of 4
Rev. October 31, 2018

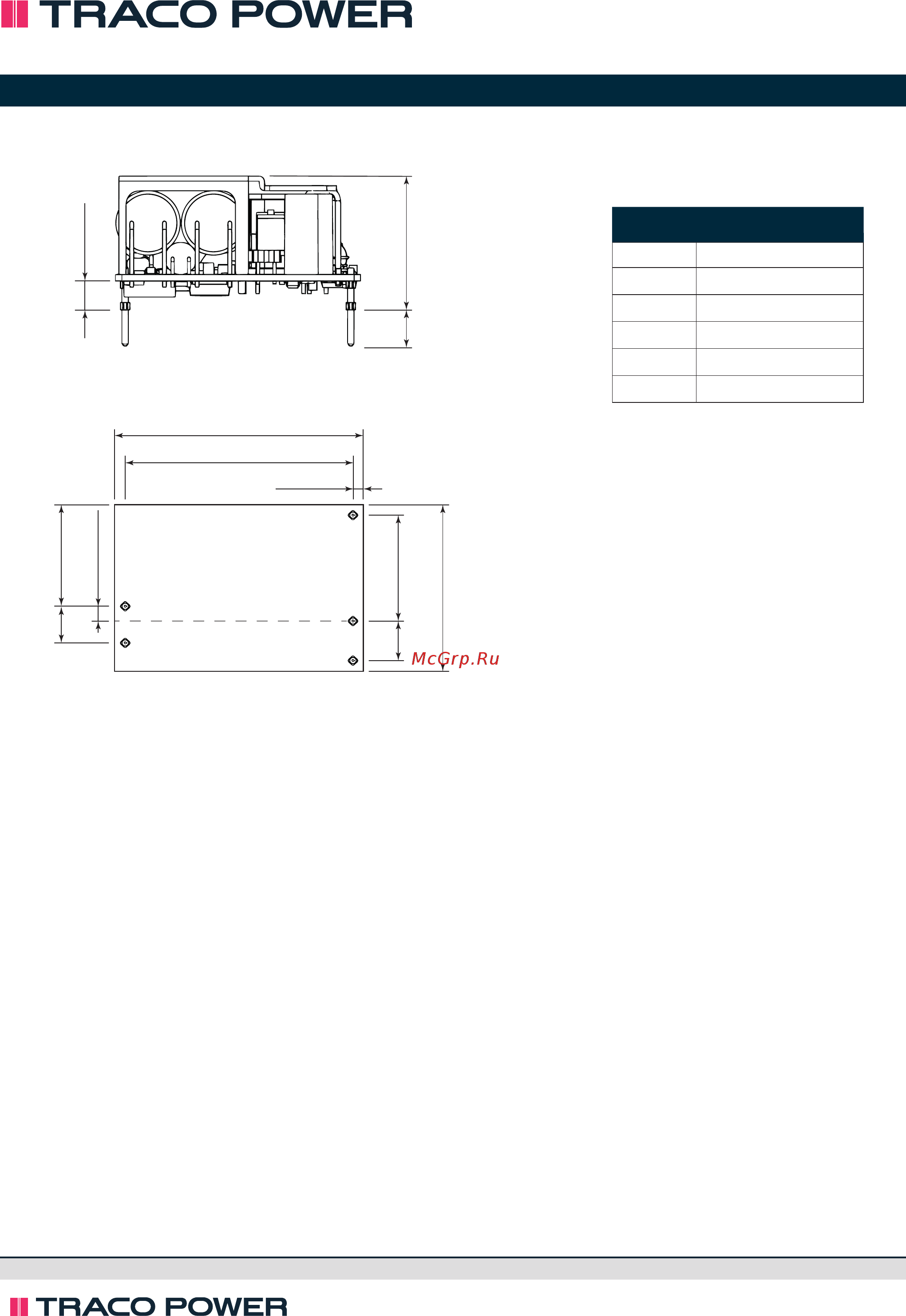

Outline Dimensions
38.1 (1.50)
Bottom view
35.05 (1.38)
25.4 (1.0)
16.24 (0.64)
6.12
1.5 (0.06)
2.24 (0.088)
(0.241)
5.59
15.5 (0.61)
(0.22)
20.8 (0.82)
4.5 (0.18)
5.6
(0.22)
1
2
3
4
5
Pin Single
1
Neutral
2
Line
3
Trim
4
–Vout
5
+Vout
PCB Pinout
Dimension in mm, () = inch
Tolerances: x.x ±0.5 (±0.02)
x.xx ±0.25 (±0.01)
Pin pitch tolerance: ±0.25 (±0.010)
Pin dimension tolerance: ±0.10 (±0.004)
3.3, 5 & 9 Vout models - with heatsink
