Planet FGSW-2620CS [21/68] Password setting

- 21 -

4.2.3 Password Setting

This section provides change the Username and Password, the screen in Figure 4-7 appears.

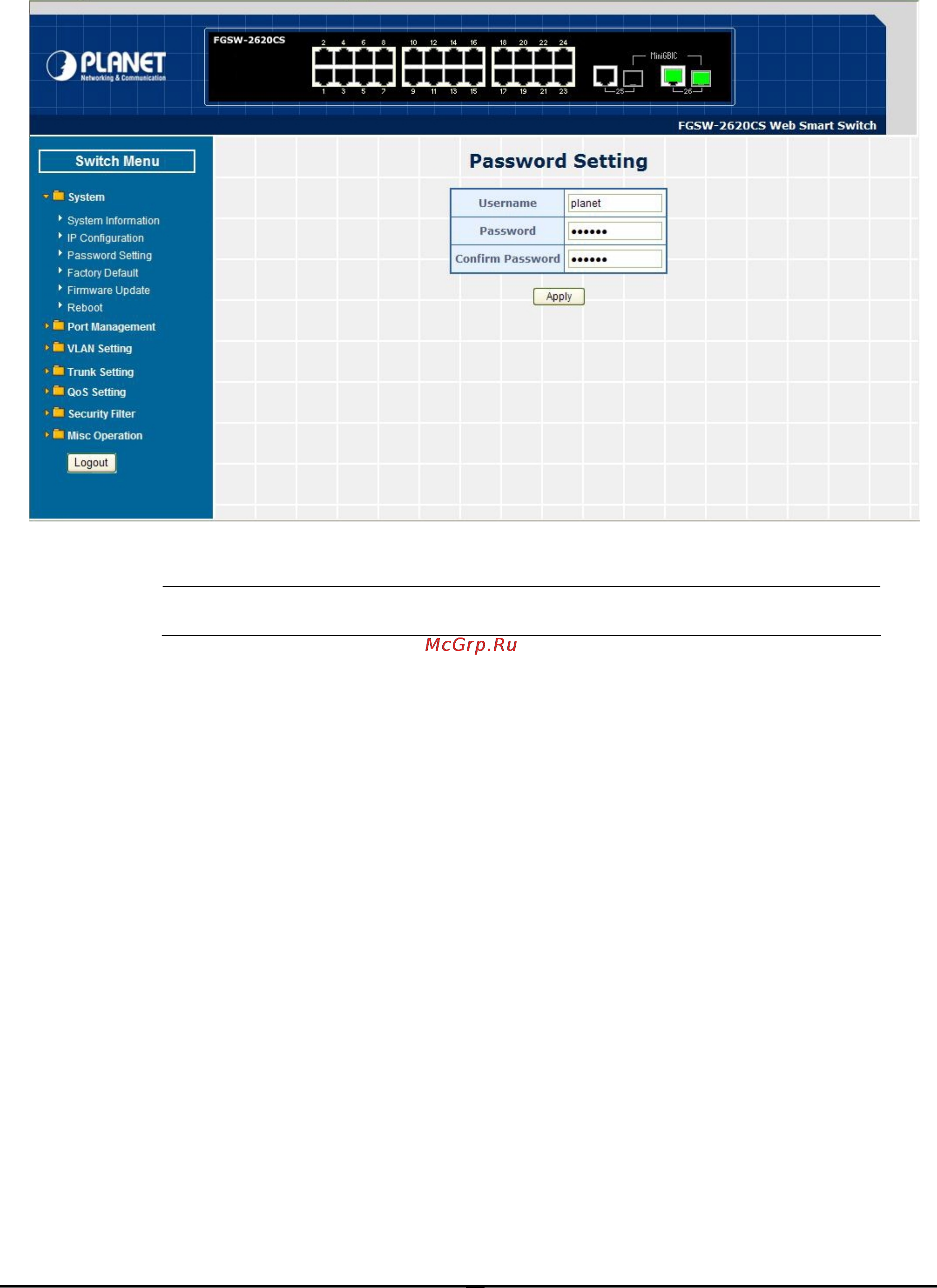

Figure 4-7 Password Setting Web Page Screen

#Notice:

Up to 8 characters is allowed for the username and password assign.
