Planet FGSW-2620CS [28/68] Port configuration

- 28 -

4.3.1 Port Configuration

This section introduces detail settings of per port on Web Smart Switch; the screen in Figure 4-19 & 4-20 appears and

Table 4-3 & 4-4 descriptions the Port Configuration objects of Web Smart Switch.

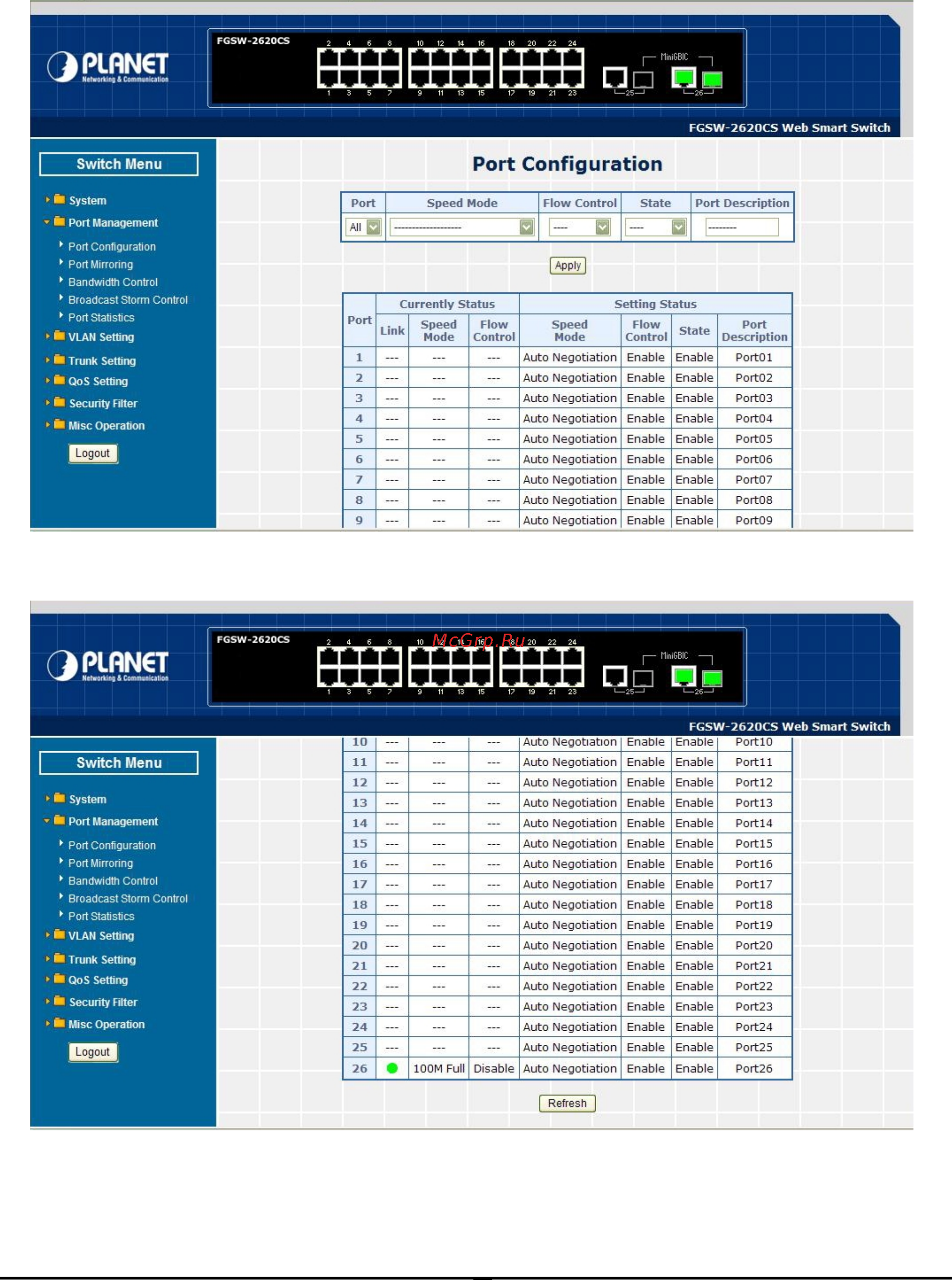

Figure 4-19 Port Configuration Web Page Screen

Figure 4-20 Port Configuration Web Page Screen
