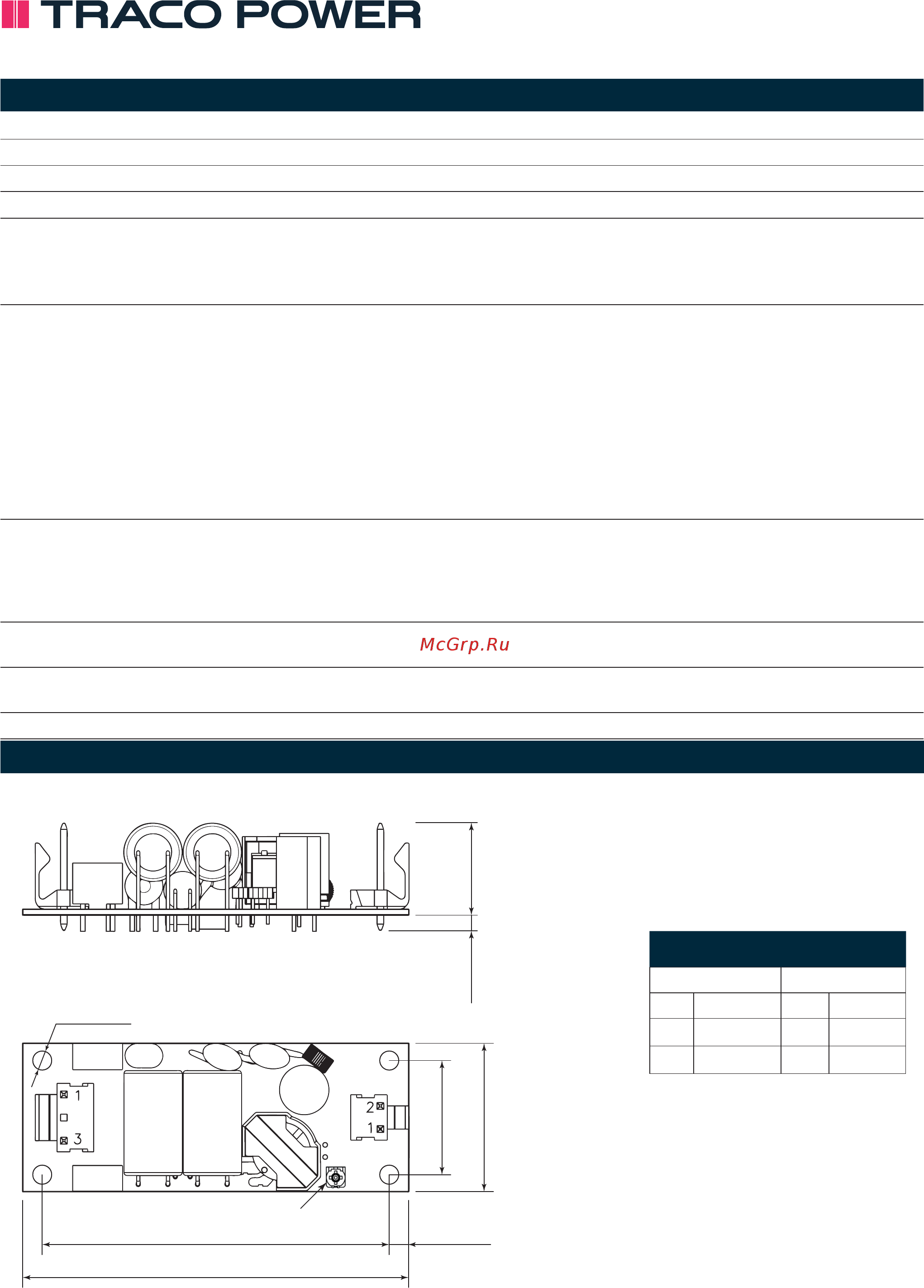

TRACO POWER TPP 15-115A-J [3/4] Tpp 15a j series 15 watt

TPP 15A-J Series, 15 Watt

www.tracopower.com Page 3 of 4

All speciﬁcations valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.

General Specifications (continued)

Leakage current (at 264 VAC / 60Hz) 75 µA max.

Isolation resistance (at 500 VDC) 100 MOhm min.

Reliability – calculated MTBF at +25°C acc. to MIL-HDBK-217F 3‘063‘000 h

Weight 19 g (0.67 oz)

EMI emission – Conducted & Radiated input suppression EN 55011 limits to IEC 60601-1-2 4th edition

EN 55032 class B (internal filter)

– Harmonic current emissions IEC / EN 61000-3-2, class A

– Voltage flicker IEC / EN 61000-3-3, (class tba.)

EMC immunity EN 55024, EN 60601-1-2 4th edition

– ESD (electrostatic discharge) EN 61000-4-2, air ±15 kV, contact ±8 kV,

perf. criteria A

– Radiated immunity EN 61000-4-3, 20 V/m, perf. criteria A

– Fast transient EN 61000-4-4, ±2 kV, perf. criteria A

– Surge EN 61000-4-5, ±1 kV perf. criteria A

– Conducted immunity EN 61000-4-6, 20 Vrms, perf. criteria A

– Magnetic field immunity EN 61000-4-8, 30 A/m, perf. criteria A

– Voltage dip and interruptions EN 61000-4-11, 1 cycle perf. criteria A,

250 cycle perf. criteria B

Safety standards and certification UL/IEC/EN 60950-1, UL/IEC/EN 62368-1

UL/IEC/EN 60601-1 3rd edition

ANSI/AAMI ES60601-1:2005(R)2012

IEC/EN 60335-1, IEC/EN 61558

– Certification documents www.tracopower.com/overview/tpp15a-j

Shock and vibration Vibration acc. IEC 60068-2-6

Shock acc. IEC 60068-2-27

Environmental compliance – Reach www.tracopower.com/info/reach-declaration.pdf

– RoHS RoHS directive 2011/65/EU

Protection class class II prepared

Outline Dimensions

66.2 (2.61)

3.35 (0.13)59.5 (2.34)

25.4 (1.00)

19.56 (0.77)

15.70 (0.62)2.8 (0.11)

Output

Input

3.2 (0.13)

Voltage Adj.

12, 15, 24, 36 & 48 Vout models - without heatsink

Input Output

Pin Single Pin Dual

Line

–Vout

Neutral

+Vout

Pin connectors

Input: JST series

mates with JST crimp terminal: SVH-21T-P1.1

and terminal housing: VHR-3N

Output: JST series

mates with JST crimp terminal: SVH-21T-P1.1

and terminal housing: VHR-2N

Each one of the 4 srew holes can be used

as a PE connection for class I applications

Print thickness: 1.0 mm (0.04 inch)

Dimension in mm, () = inch

Tolerances: x.x ±0.5 (±0.02)

x.xx ±0.25 (±0.01)
