TPP 15A-J Series, 15 Watt

www.tracopower.com

Page 4 of 4

Rev. August 3, 2018

Input Output

Pin Single Pin Dual

Line

–Vout

Neutral

+Vout

Pin connectors

Input: JST series

mates with JST crimp terminal: SVH-21T-P1.1

and terminal housing: VHR-3N

Output: JST series

mates with JST crimp terminal: SVH-21T-P1.1

and terminal housing: VHR-2N

Each one of the 4 srew holes can be used

as a PE connection for class I applications

Dimension in mm, () = inch

Tolerances: x.x ±0.5 (±0.02)

x.xx ±0.25 (±0.01)

66.2 (2.61)

3.35 (0.13)59.5 (2.34)

25.4 (1.00)

19.56 (0.77)

16.3 (0.64)2.8 (0.11)

3.2 (0.13)

Input

Output

Voltage Adj.

3.3, 5 & 9 Vout models - with heatsink

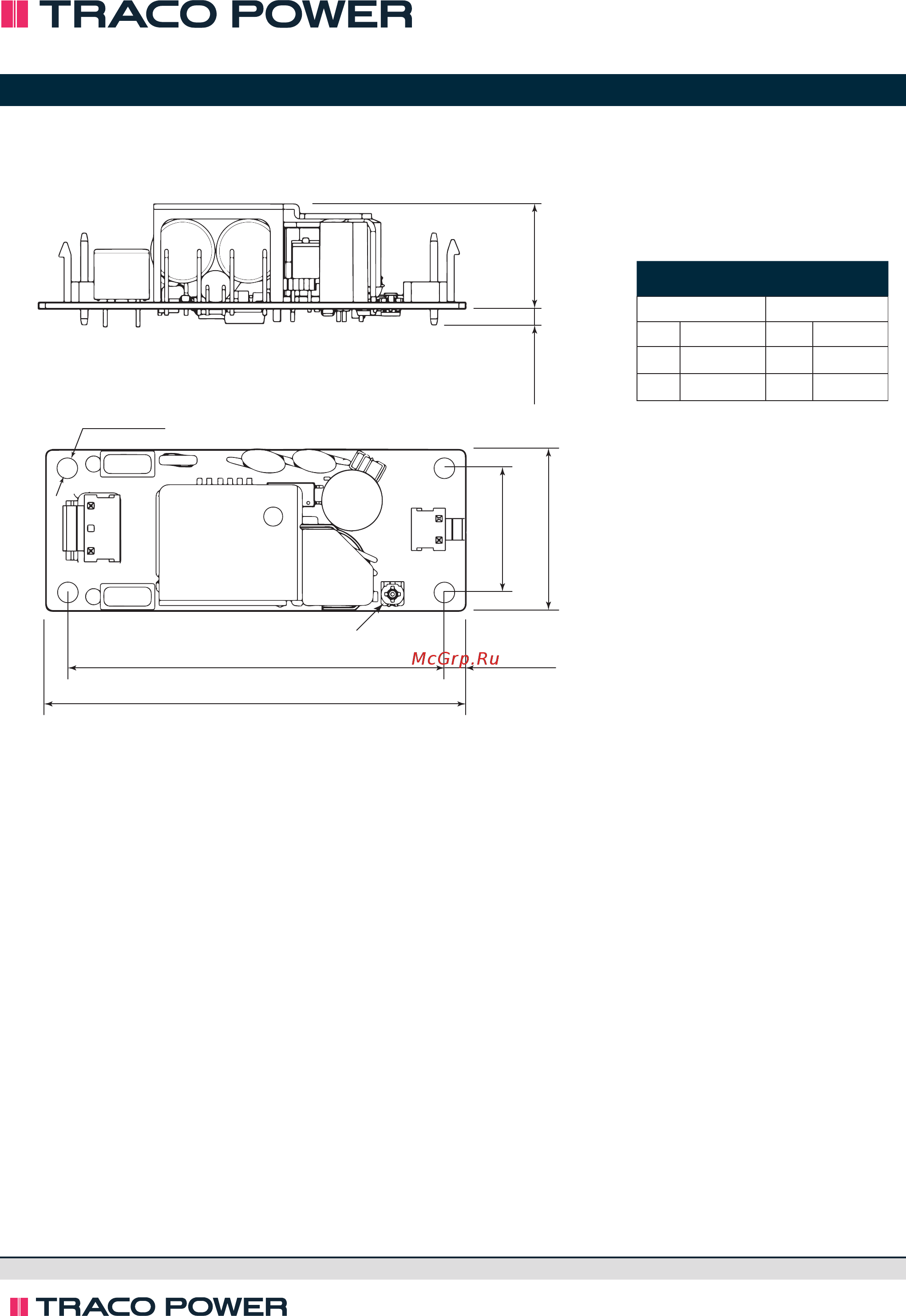

Outline Dimensions
