TPP 65A Series, 65 Watt
www.tracopower.com
© Copyright 2018 Traco Electronic AG Specifications can be changed without notice!
Page 3 of 3
Rev. October 31, 2018

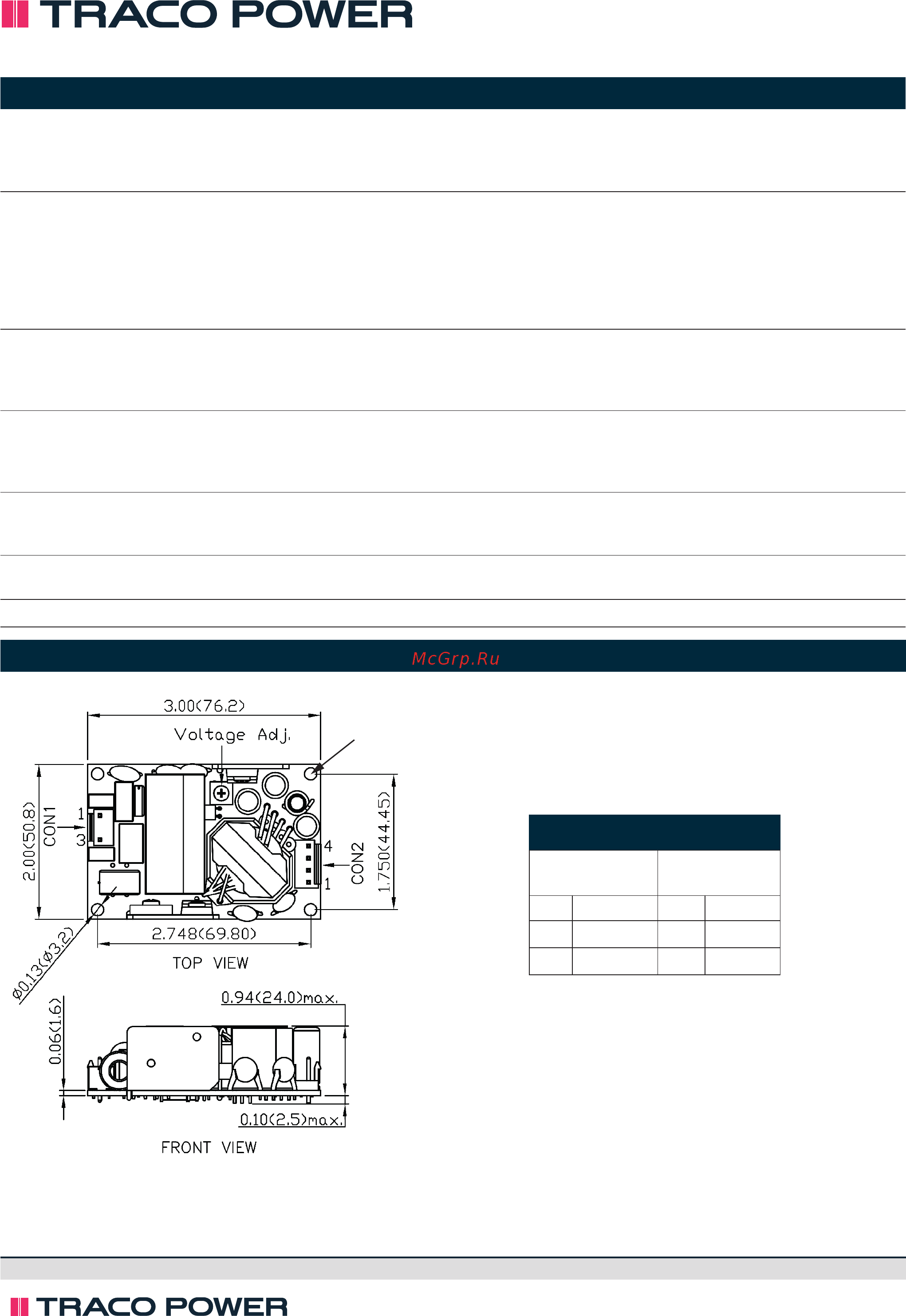

Outline Dimensions
Input
(Con 1)
Output
(Con 2)
Pin Single Pin* Dual
1
Line
1,2
–Vout
3
Neutral
3,4
+Vout
Screw Terminal
*Terminal rated for 7 A max.
(at higher current connection has to be split)
Weight: 114 g (4.02 oz)
CON 1: JST series
mates with JST crimp terminal: BVH-21T-P1.1
and terminal housing: VHR-3N
CON 2: JST series
mates with JST crimp terminal: BVH-21T-P1.1
and terminal housing: VHR-4N
each one of the 4 srew holes can be used
as a PE connection for class I applications
Dimensions in inch, () = mm
Tolerances: x.xx±0.02 (x.x±0.5) x.xxx±0.01 (x.xx±0.25)
General Specifications (continued)
Electromagnetic compatibility – Conducted & Radiated input suppression EN 55011 limits to IEC 60601-1-2 4th editon
(EMC), emissions EN 55032 class B (internal filter)
– Harmonic current emissions IEC / EN 61000-3-2, class B
– Voltage flicker IEC / EN 61000-3-3, class B
Electromagnets compatibility (EMC), immunity IEC / EN 60601-1-2
– Electrostatic discharge ESD IEC / EN 61000-4-2, 8kV/15kV perf. criteria A
– RF field immunity IEC / EN 61000-4-3, 20V/m perf. criteria A
– Electrical fast transients/burst immunity IEC / EN 61000-4-4, ± 2kV perf. criteria A
– Surge IEC / EN 61000-4-5, ± 1kV/± 2kV perf. criteria A
– Conducted RF IEC / EN 61000-4-6, 20 Vrms perf. criteria A
– Magnetic field (only for single output models) IEC / EN 61000-4-8, 10A/m perf. criteria A
Voltage dip and interruptions according to EN 60601-1-2 30%, 500ms perf. criteria A
reference: 100 VAC / 50Hz 60%, 100ms perf. criteria B
> 95%, 10ms perf. criteria A
> 95%, 5000ms perf. criteria B
Safety standards and certification IEC/EN 60601-1 3rd edition,
ANSI/AAMI ES60601-1:2005(R)2012
www.ul.com file e188913
– Certification documents www.tracopower.com/overview/tpp65a
Environment – Vibration acc. IEC 60068-2-6 3 axis, sine sweep, 10–55Hz, 1g, 1oct/min
– Shock acc. IEC 60068-2-27 3 axis, 10g half sine, 11msShock
20 G (3 directions each 3 times)
Environmental compliance – Reach www.tracopower.com/info/reach-declaration.pdf
– RoHS RoHS directive 2011/65/EU
Connection screw terminal / pin connector
