Planet SW-504 [10/16] Installing the switch

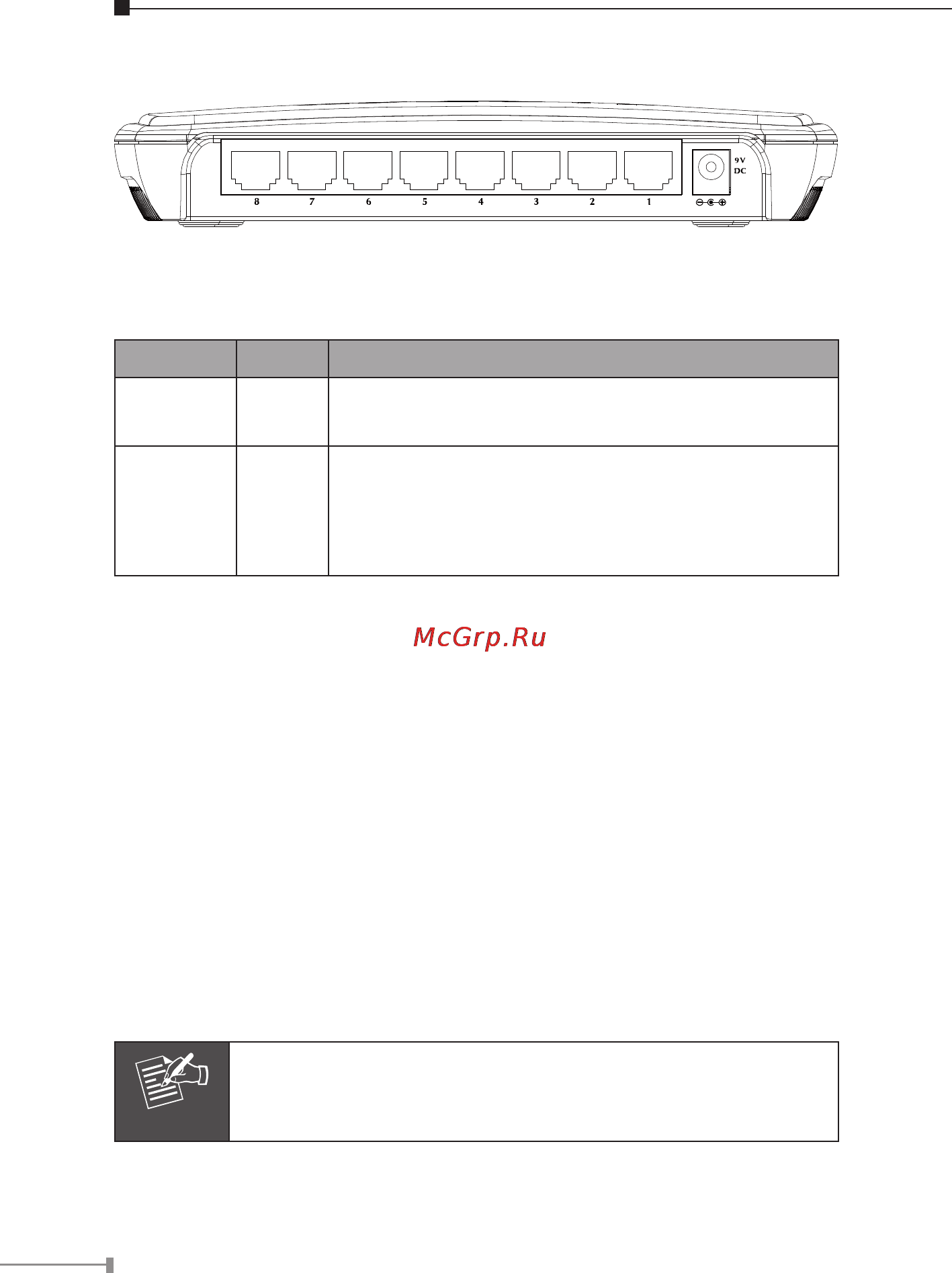

Figure 2-4 SW-804 rear panel

2.1.3 LED Indicators

LED Color Function

PWR Green

Lights to indicate that the Switch is powered

on.

LNK/ACT Green

Lit: indicate the link through that port is

successfully established.

Blink: indicate that the Switch is actively

sending or receiving data over that port.

Power Notice:

1. The device is a power-required device, it means, it will not work till

it is powered. If your networks should active all the time, please

consider using UPS (Uninterrupted Power Supply) for your device. It

will prevent you from network data loss or network downtime.

2. In some area, installing a surge suppression device may also help

to protect your Switch from being damaged by unregulated surge or

current to the Switch or the power adapter.

2.2 Installing the Switch

This part describes how to install your Desktop Fast Ethernet Switch

and make connections to it. Please read the following topics and

perform the procedures in the order being presented.

Note

This Switch does not need software configuration.
