Biostar H310MHD3 Версия V7.x [6/60] Motherboard layout

6 | Chapter 1: Introducon

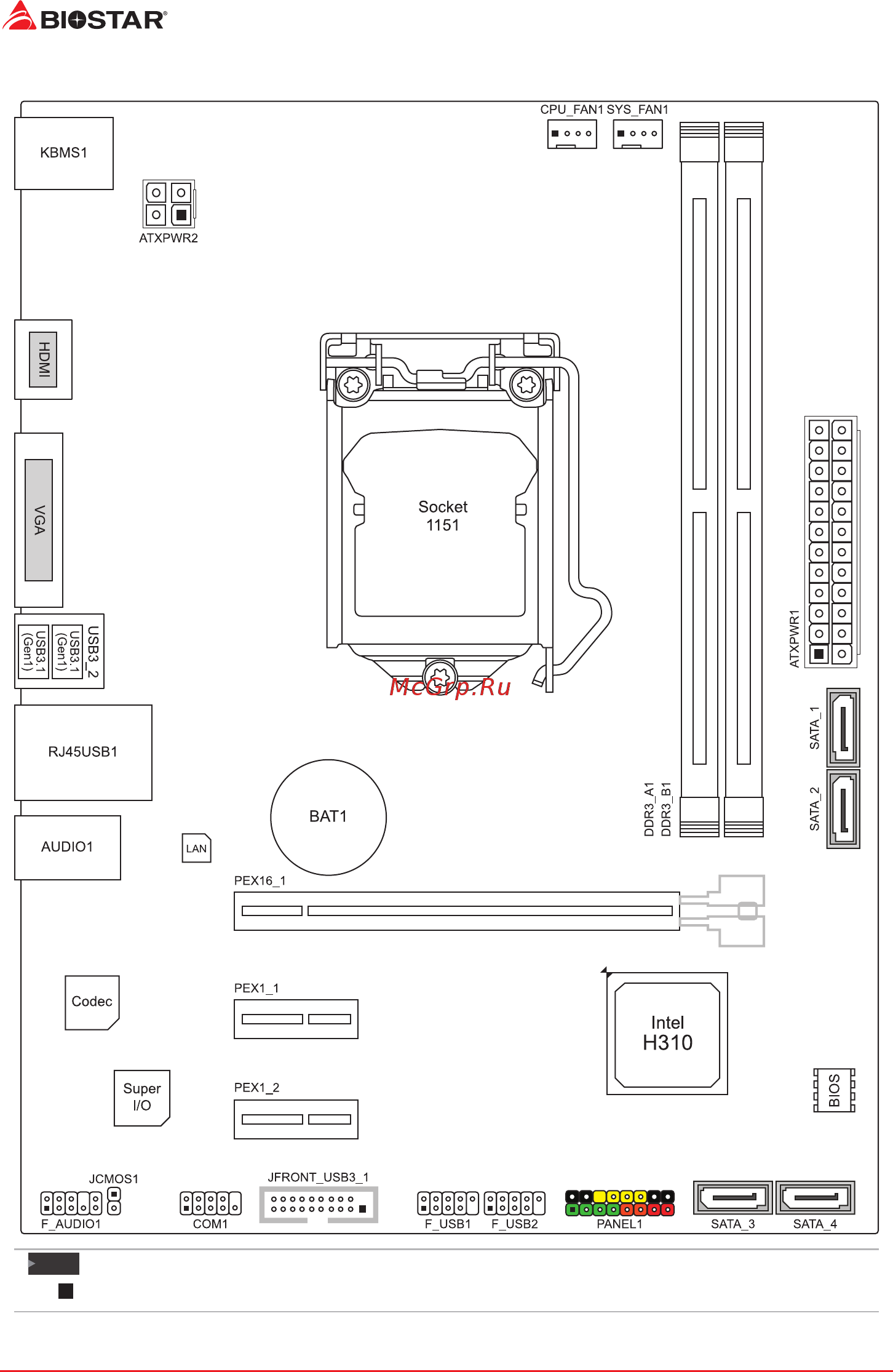

1.5 Motherboard Layout

Note



representsthe1stpin.

Содержание

Fcc information and copyright 1
Appendix i specifications in other languages 28 2
Chapter 1 introduction 3 2
Chapter 2 hardware installation 7 2
Chapter 3 uefi bios software 17 2
Chapter 4 useful help 24 2
Fcc information and copyright 1 2
Table of contents 2
1 before you start 3
Chapter 1 introduction 3
Package checklist 3
3 specifications 4
Chapter 1 introduction 4
Chapter 1 introduction 5 5
H310mhd3 5
Hdmi vgaportsonlyworkwithanintel integratedgraphicsprocessor maximumresolution hdmi 4096x2160 24hz compliantwithhdmi1 vga 1920x1200 60hz whenusingthefronthdaudiojackandplugintheheadset microphone therearsoundwillbe automaticallydisabled themainboardsupportstwoonboarddisplayoutputsatsametimeandthedisplayoutput configurationcanbeselectedinintelgraphicsdriverutility toconfigure7 channelaudio youhavetouseachassiswithhdfrontpanelaudiomoduleand enablethemulti channelaudiofeaturethrougho s audioutility 5
Rear panel connectors 5
The 2 4 5 7 channel configuration 5
Chapter 1 introduction 6
Motherboard layout 6
Chapter 2 hardware installation 7
Chapter 2 hardware installation 7 7
H310mhd3 7
Install central processing unit cpu 7
Step 1 locate the cpu socket on the motherboard 7
Step 2 pull the socket locking lever out from the socket and then raise the lever up 7
Step 3 remove the pin cap 7
Install a heatsink 9
Chapter 2 hardware installation 10
Connect cooling fans 10
Cpu_fan1 cpu fan header 10
Cpu_fan1 sys_fan1support4 pinand3 pinheadconnectors whenconnectingwithwiresonto connectors pleasenotethattheredwireisthepositiveandshouldbeconnectedtopin 2 andthe blackwireisgroundandshouldbeconnectedtopin 1 gnd 10
Ddr3l modules 10
Install system memory 10
Sys_fan1 system fan header 10
These fan headers support cooling fans built in the computer the fan cable and connector may be different according to the fan manufacturer 10
Chapter 2 hardware installation 11 11
Dual channel memory installation 11
H310mhd3 11
Memory capacity 11
O means memory installed x means memory not installed 11
Please refer to the following requirements to activate dual channel function install memory module of the same density in pairs shown in the table 11
Step 1 unlock a dimm slot by pressing the retaining clips outward align a dimm on the slot such that the notch on the dimm matches the break on the slot 11
Step 2 insert the dimm vertically and firmly into the slot until the retaining clips snap back in place and the dimm is properly seated 11
Expansion slots 12
Install an expansion card 12
Pex16_1 pci express gen3 x16 slot 12
Pex1_1 pex1_2 pci express gen2 x1 slots 12
Jcmos1 clear cmos jumper 13
Jumper switch setting 13
Atxpwr1 atx power source connector 14
Atxpwr2 atx power source connector 14
Beforeyoupoweronthesystem pleasemakesurethatbothatxpwr1andatxpwr2connectors havebeenplugged in insufficientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunctioning properly useofapsuwithahigherpoweroutputisrecommendedwhenconfiguringasystemwith morepower consumingdevices 14
Chapter 2 hardware installation 14
For better compatibility we recommend to use a standard atx 24 pin power supply for this connector make sure to find the correct orientation before plugging the connector 14
Headers connectors 14
The connector provides 12v to the cpu power circuit 14
Chapter 2 hardware installation 15 15
H310mhd3 15
Jfront_usb3_1 header for usb 3 gen1 ports at front panel 15
Panel1 front panel header 15
Sata_1 _2 _3 _4 serial ata connectors 15
These connectors connect to sata hard disk drives via sata cables 15
This 16 pin header includes power on reset hdd led power led and speaker connection 15
This header allows user to add additional usb ports on the pc front panel and also can be connected with a wide range of external peripherals 15
Chapter 2 hardware installation 16
Com1 serial port header 16
F_audio1 front panel audio header 16
F_usb1 2 header for usb 2 ports at front panel 16
Itisrecommendedthatyouconnectahigh definitionfrontpanelaudiomoduletothisconnectorto availofthemotherboard shighdefinitionaudiocapability pleasetrytodisablethe frontpaneljackdetection ifyouwanttouseanac 97frontaudiooutput cable thefunctioncanbefoundviao s audioutility 16
The motherboard has a serial port header for connecting rs 232 port 16
This header allows user to add additional usb ports on the pc front panel and also can be connected with a wide range of external peripherals 16
This header allows user to connect the chassis mount front panel audio i o which supports hd and ac 97 audio standards 16
Bios update 17
Chapter 3 uefi bios software 17
Uefi bios setup 17
Installing software 21
Launching software 21
Software 21
Chapter 3 uefi bios software 23 23
Enter the file name and then click save your system information will be saved to a txt file 23
H310mhd3 23
Open the saved txt file you will see your system information including motherboard bios cpu video device os information this information is also concluded in the sent mail 23
Chapter 4 useful help 24
Driver installation 24
Ami bios beep code 25
Ami bios post code 25
Boot block beep codes 25
Chapter 4 useful help 25 25
H310mhd3 25
Post bios beep codes 25
Chapter 4 useful help 26
After confirmed please follow steps below to relief the cpu protection function 1 remove the power cord from power supply for seconds 2 wait for seconds 3 plug in the power cord and boot up the system 27
Chapter 4 useful help 27 27
Cpu overheated if the system shutdown automatically after power on system for seconds that means the cpu protection function has been activated 27
H310mhd3 27
In this case please double check 1 the cpu cooler surface is placed evenly with the cpu surface 2 cpu fan is rotated normally 3 cpu fan speed is fulfilling with the cpu speed 27
Or you can 1 clear the cmos data see close cmos header jcmos1 section 2 wait for seconds 3 power on the system again 27
Troubleshooting 27
When the cpu is over heated the motherboard will shutdown automatically to avoid a damage of the cpu and the system may not power on again 27
Appendix i specifications in other languages 28
Arabic 28
Appendix i specifications in other languages 29 29
German 29
H310mhd3 29
Appendix i specifications in other languages 30
Russian 30
Спецификации 30
Appendix i specifications in other languages 31 31
H310mhd3 31
Spanish 31
Appendix i specifications in other languages 32
Fcc条款 33
免责说明 33
防静电操作规则 33
目录 34
第一章主板介绍 3 34
第三章 uefi bios和软件 17 34
第二章硬件安装 7 34
第四章帮助信息 24 34
附录i 产品中有毒有害物质或元素的名称及含量 28 34
1 前言 35
第一章主板介绍 35
3 主板特性 36
第一章主板介绍 36
4 5 1 7 1 声道模式配置 37
4 后置面板接口 37
H310mhd3 37
仅intel集成显卡处理器支持hdmi vga端口最高分辨率 hdmi 4096 x 2160 24hz 符合hdmi 1 规范 vga 1920 x 1200 60hz 当使用前置hd音频插孔并插入耳机麦克风时后置声音将自动禁用主板同时支持2个板载显示端口输出显示输出的配置可以在英特尔图形驱动程序工具中进行选择配置8声道音频输出您必须使用hd前面板音频模块才能够通过o s 多声道音频功能音频工具 37
第一章主板介绍 5 37
5 主板布局图 38
第一章主板介绍 38
1 中央处理器 cpu 39
第二章硬件安装 39
2 散热片 41
H310mhd3 41
步骤1 请将cpu风扇组件置于cpu顶部确保四个钉钩对齐主板上的插孔调整其方位使风扇电线与cpu风扇接口间距最近确保钉钩插槽垂直指向散热片 41
步骤2 依次把对角2个钉钩同时向下按以固定风扇完成cpu安装 41
第二章硬件安装 9 41
3 风扇接头 42
4 系统内存 42
Cpu_fan1 cpu 风扇接头 42
Cpu_fan1 sys_fan1支持4针脚和3针脚接口接线时请注意红线是正极需接到第二个针脚黑线接地需接到gnd针脚 42
Ddr3l内存模组 42
Sys_fan1 系统风扇接头 42
此风扇接头支持电脑内置的冷却风扇风扇引线和插头可能因制造商而异 42
第二章硬件安装 42
H310mhd3 43
O 表示内存已安装 x 表示内存未安装 43
为激活主板双通道功能使用内存模组必须符合以下要求成对安装相同密度的内存模组如下表所示 43
内存容量 43
双通道内存安装 43
步骤1 向外推开固定夹打开dimm插槽将dimm按顺序放在插槽上 dimm上的切口须与插槽凹口匹配 43
步骤2 垂直插入dimm并固定好直到固定夹跳回原位 dimm就位 43
第二章硬件安装 11 43
5 扩展槽 44
Pex16_1 pci express gen3 x16 插槽 44
Pex1_1 pex1_2 pci express gen2 x1 插槽 44
安装扩展卡 44
6 跳线设置 45
Jcmos1 清空cmos 跳线 45
7 接口和插槽 46
Atxpwr1 atx电源接口 46
Atxpwr2 atx电源接口 46
为了更好的兼容性我们建议使用标准的atx24 pin电源供应此接口的电源 46
开机前请确保atxpwr1和atxpwr2接口都已插上电源电压不足可能导致系统不稳或者外围设备不能正常运行当配置使用大功率设备的系统时建议您使用带有大功率输出的电源 46
此接口给cpu电路提供 12v电压 46
第二章硬件安装 46
H310mhd3 47
Jfront_usb3_1 前置面板usb 3 1 gen1 接头 47
Panel1 前置面板接头 47
Pc前置面板支持附加的usb数据线也可连接即插即用外围设备 47
Sata_1 _2 _3 _4 串行ata接口 47
此16针脚接口包含开机重启硬盘指示灯电源指示灯和扬声器接口 47
此接口通过sata数据线连接sata硬盘 47
第二章硬件安装 15 47
Com1 串行端口 48
F_audio1 前置面板音频接头 48
F_usb1 2 前置面板usb 2 0接头 48
Pc前置面板支持附加的usb数据线也可连接即插即用外围设备 48
建议您连接前置高清音频插孔享用主板高清音频功能如果要连接ac 97前置音频输出数据线请关闭前置面板插孔检测功能此功能在系统音频工具中可见 48
此主板有一串行端口可连接至rs 232端口 48
此接头可连接音频输出数据线支持hd 高清音频和ac 97 48
第二章硬件安装 48
1 uefi bios设置 49
2 刷新bios 49
第三章 uefi bios和软件 49
3 软件 53
启动软件 53
安装软件 53
H310mhd3 55
打开已保存的文本文件显示相关系统信息包括主板 bios cpu 视频设备 os 这些信息当然也在已发送的邮件里 55
第三章 uefi bios和软件 23 55
输入文件名点击 save 系统信息将被保存至文本文件里 55
1 驱动程序安装注意事项 56
第四章帮助信息 56
2 ami bios 哔声代码 57
3 ami bios 开机自检代码 57
Bios 开机自检哔声代码 57
H310mhd3 57
引导模块哔声代码 57
第四章帮助信息 25 57
第四章帮助信息 58
4 问题解答 59
附录i 产品中有毒有害物质或元素的名称及含量 60
