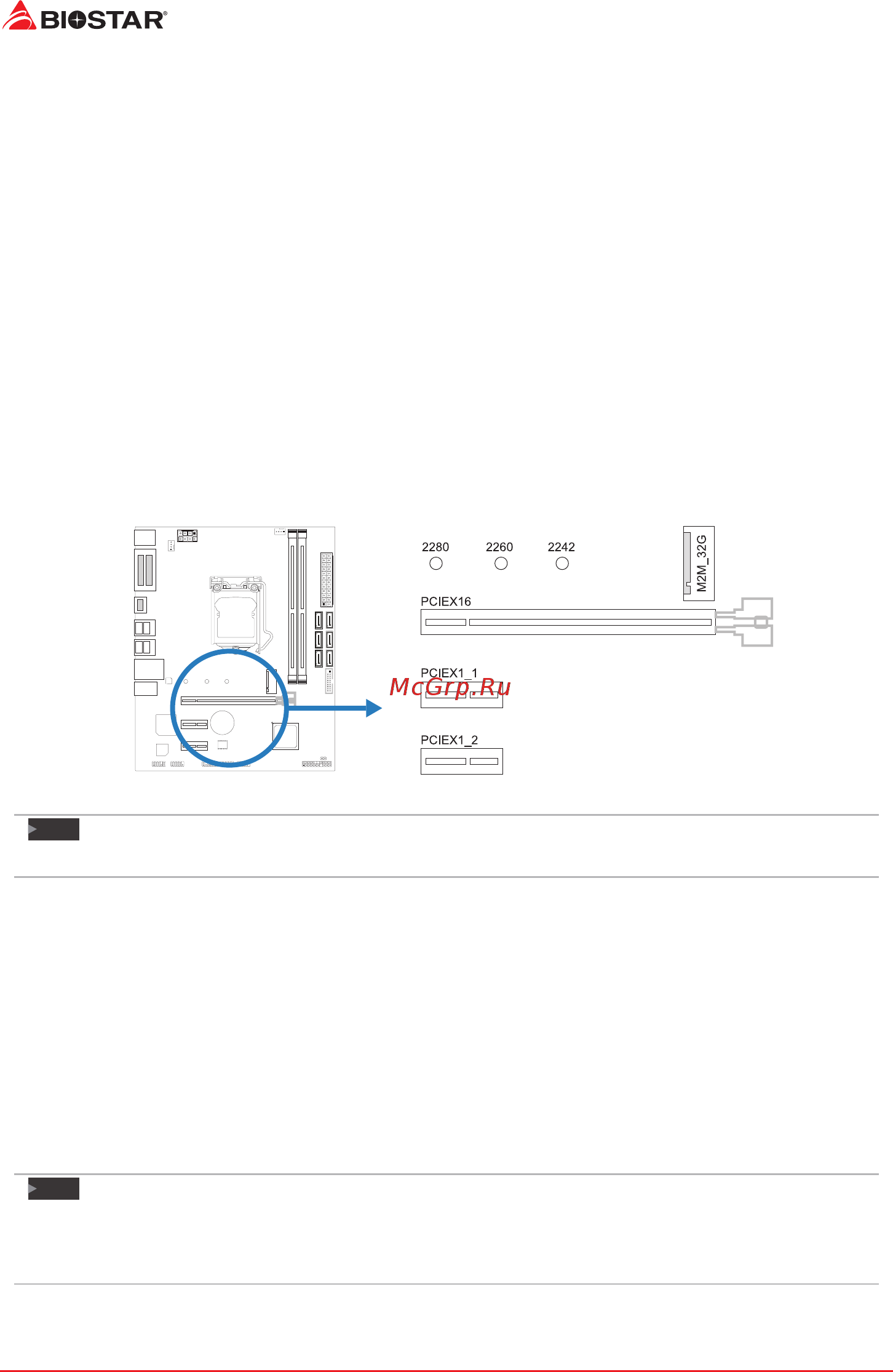

2.5 Expansion Slots

PCIEX16: PCI-Express Gen3 x16 Slot

• PCI-Express 3.0 compliant.

• Maximum theorecal realized bandwidth of 16GB/s simultaneously per direcon, for an

aggregate of 32GB/s totally.

PCIEX1_1/ PCIEX1_2: PCI-Express Gen3 x1 Slots

• PCI-Express 3.0 compliant.

• Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total

M2M_32G: M.2 (Key M) Slot

• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct posion.

• Supports M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x4

(32Gb/s).

• Support Intel® Optane Technology.

Note

»

WhenusingSATASSDmoduleonM2M_32Gslot,theSATA3_5connectorwillbedisabled.

Install an Expansion Card

You can install your expansion card by following steps:

• Read the related expansion card’s instrucon document before install the expansion card into the

computer.

• Remove your computer’s chassis cover, screws and slot bracket from the computer.

• Place a card in the expansion slot and press down on the card unl it is completely seated in the

slot.

• Secure the card’s metal bracket to the chassis back panel with a screw. (This step is only

for installing a VGA card.).

• Replace your computer’s chassis cover.

• Power on the computer, if necessary, change BIOS sengs for the expansion card.

• Install related driver for the expansion card.

Note



PleasebenotethatyouwillneedtouseM2typescrewdriverifyouwanttoinstalloruninstallthe

screw.Itisrecommendednottouseascrewdriverthatdoesnotmeetthespecicaons,otherwise

thescrewmaybedamaged.
