Biostar H110MHV3 Версия 7.x [11/32] Dual channel memory installation

Chapter 2: Hardware installaon | 11

H110MHV3 / H110MGV3 / H110MLV3

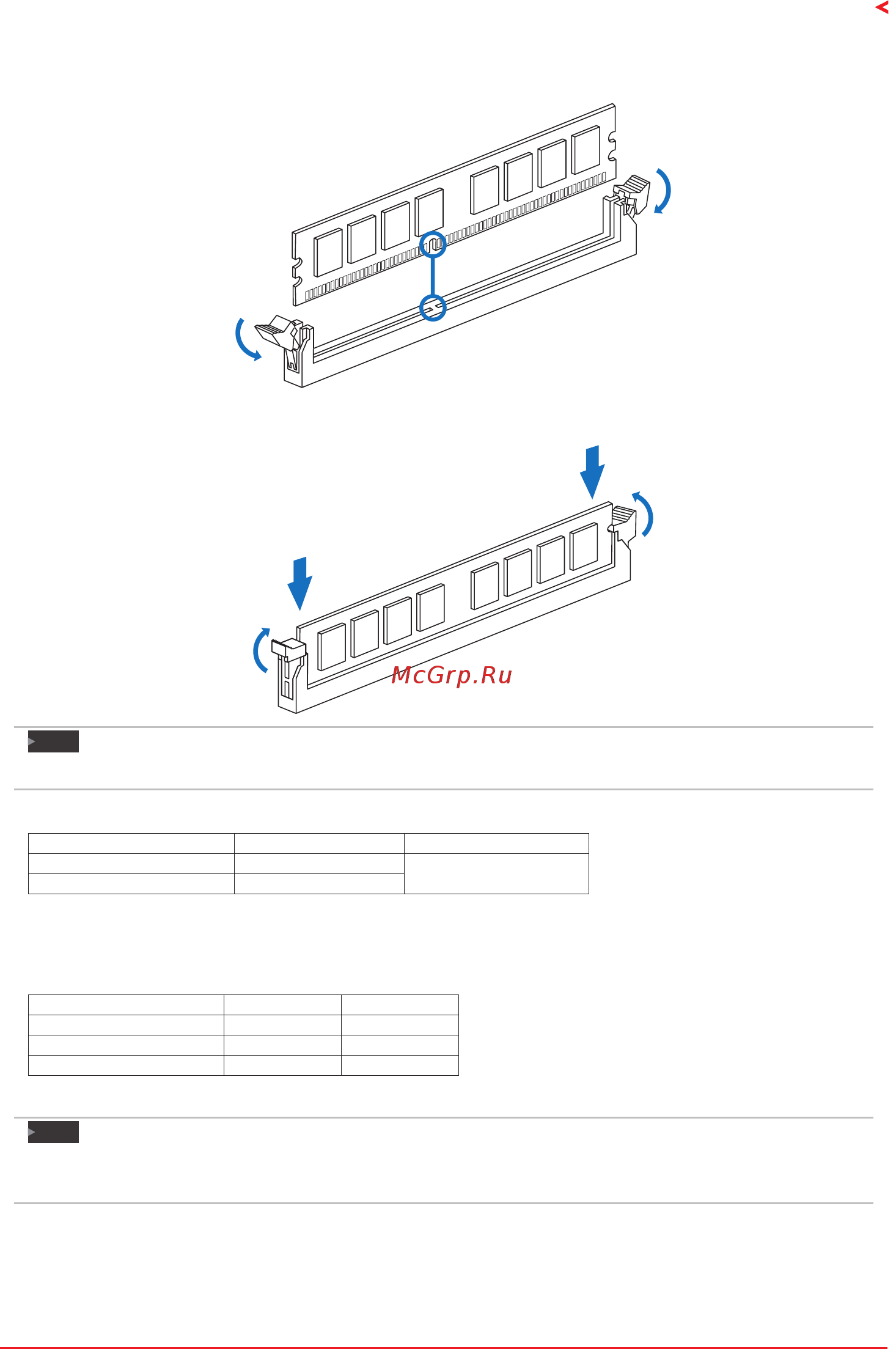

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot

such that the notch on the DIMM matches the break on the slot.

Step 2: Insert the DIMM vercally and rmly into the slot unl the retaining clips snap back in

place and the DIMM is properly seated.

Note

 IftheDIMMdoesnotgoinsmoothly,donotforceit.Pullitallthewayoutandtryagain.

Memory Capacity

DIMM Socket Locaon DDR3L Module Total Memory Size

DDR3_A1 4GB/8GB

Max is 16GB.

DDR3_B1 4GB/8GB

Dual Channel Memory Installaon

Please refer to the following requirements to acvate Dual Channel funcon:

Install memory module of the same density in pairs, shown in the table.

Dual Channel Status DDR3_A1 DDR3_B1

Disabled O X

Disabled X O

Enabled O O

(O means memory installed, X means memory not installed.)

Note

 Wheninstallingmorethanonememorymodule,werecommendtousethesamebrandand

capacitymemoryonthismotherboard.
