B85MG
19

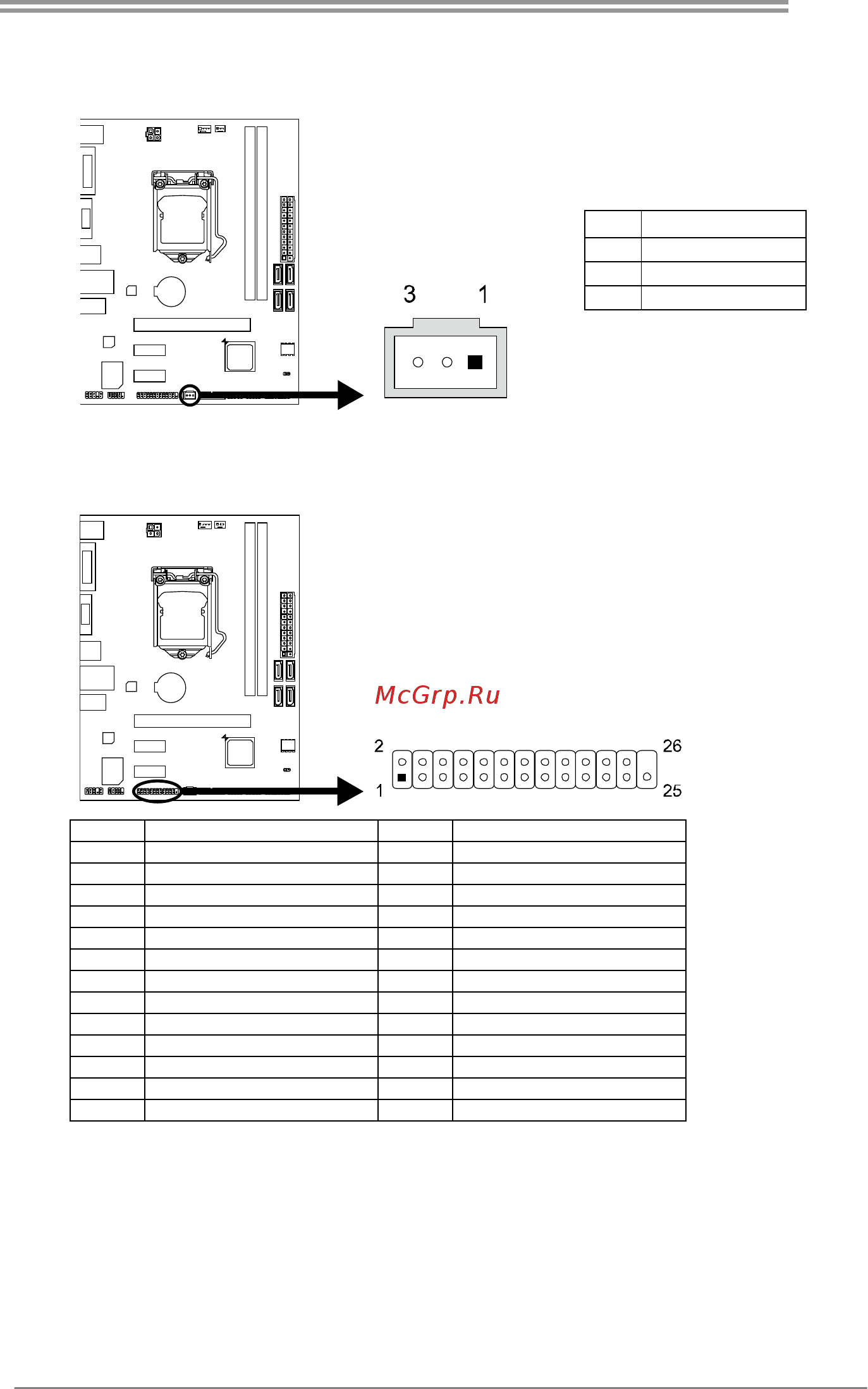

JSPDIFOUT1: Digital Audio-out Connector
The connector is for connecting the S/PDIF output bracket.
Pin Assignment
1 +5V
2 SPDIF_OUT
3 Ground
J_PRINT1: Printer Port Header
This header allows user to connect a printer to the PC.
Pin Assignment Pin
A
ssignment
1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy
9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key
