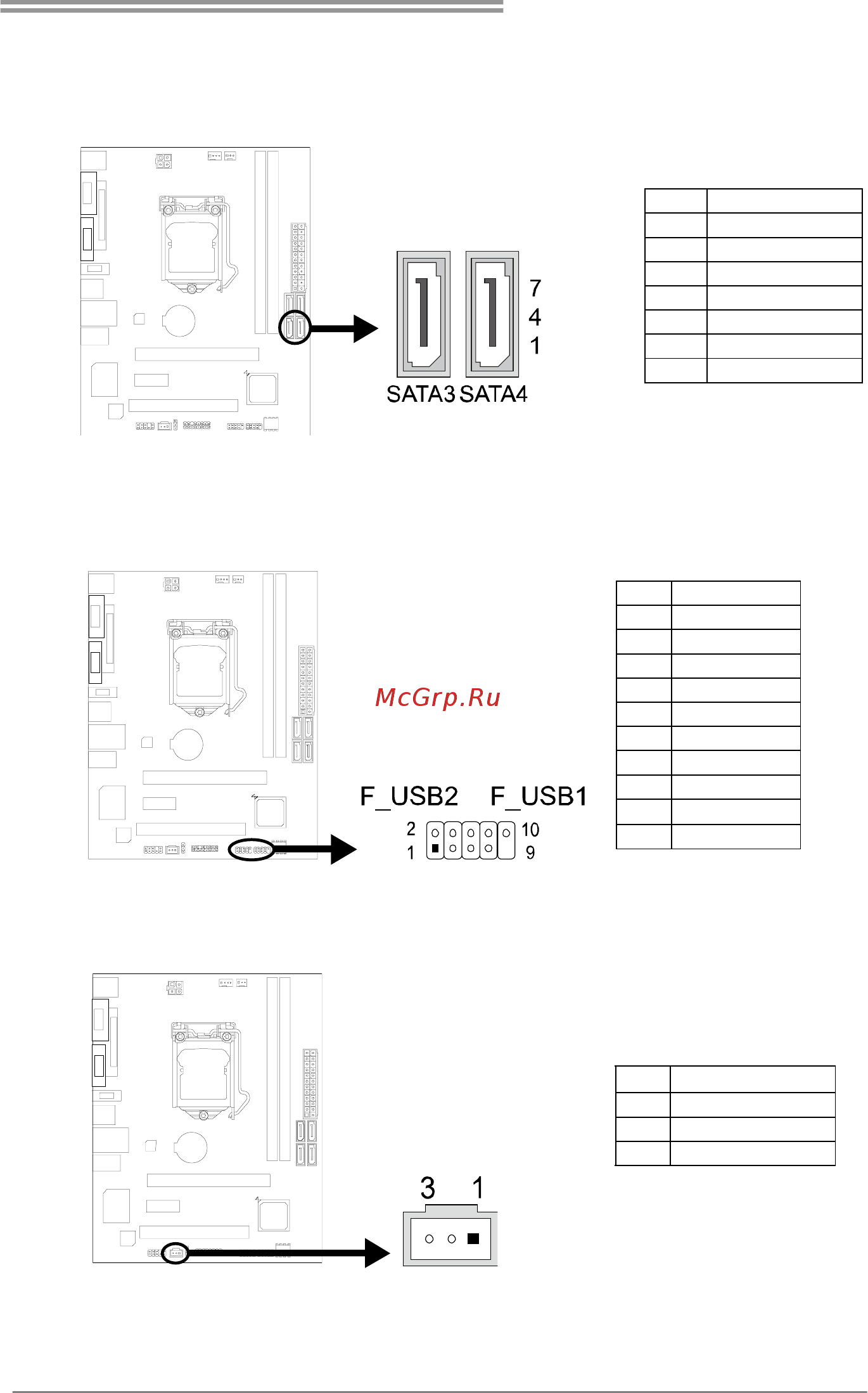

H81MHP2/H81MGP2/H81MLP2
15
SATA3~SATA4: Serial ATA 2.0 Connectors
These connectors connect to SATA hard disk drives via SATA cables. It satisfies
the SATA 2.0 specification and with transfer rate of 3.0Gb/s.
Pin Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
F_USB1/2: Header for USB 2.0 Ports at Front Panel
This header allows user to add additional USB ports on the PC front panel, and
also can be connected with a wide range of external peripherals.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 NC
10 Key
JSPDIFOUT1: Digital Audio-out Connector
The connector is for connecting the S/PDIF output bracket.
Pin Assignment
1 +5V
2 SPDIF_OUT
3 Ground
