Motherboard Manual
4

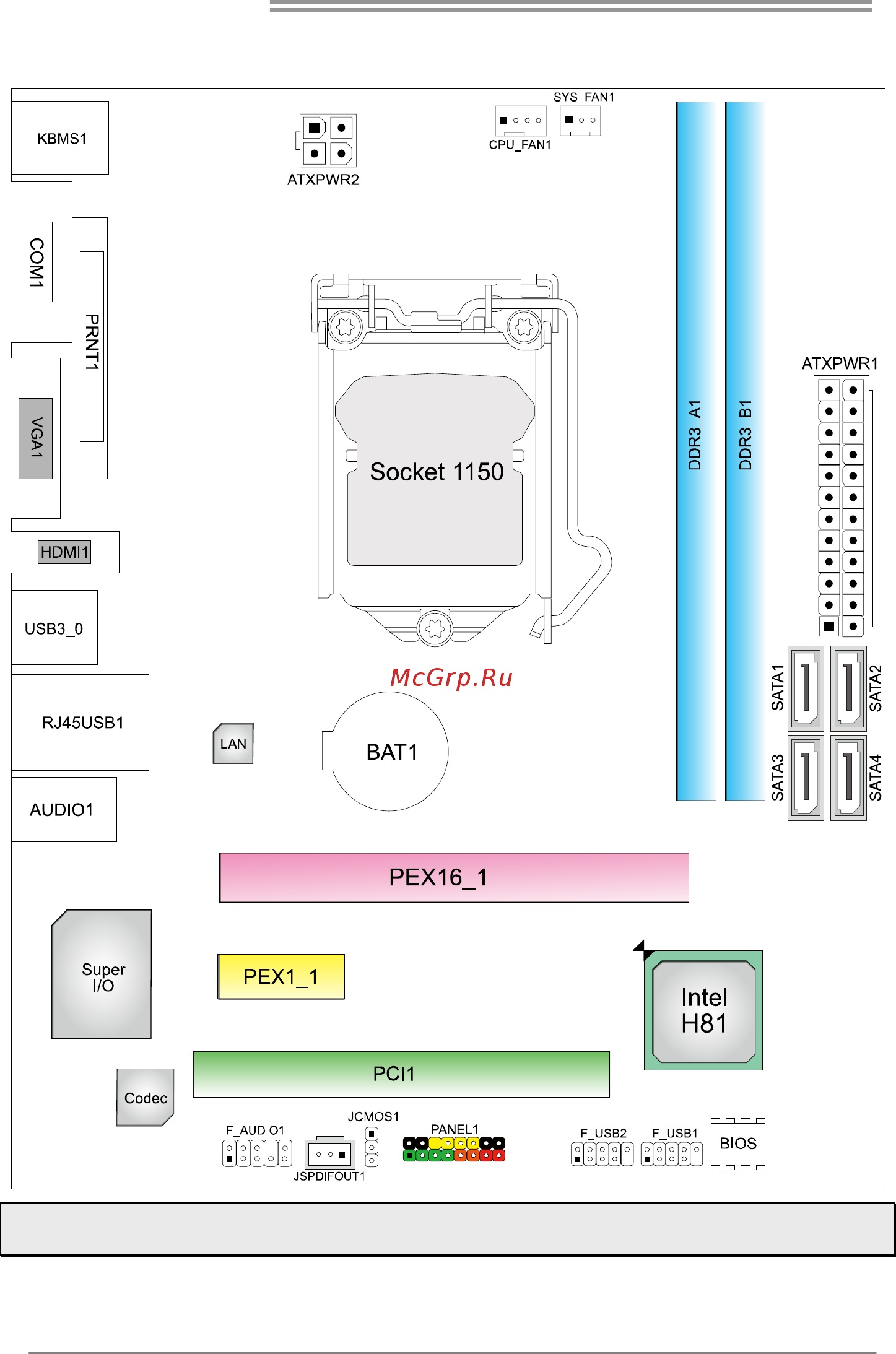

1.5 Motherboard Layout
Note1: ■ represents the 1
st
pin.
Note2: The HDMI connector is only for H81MHP2.
