H81MDV5
3

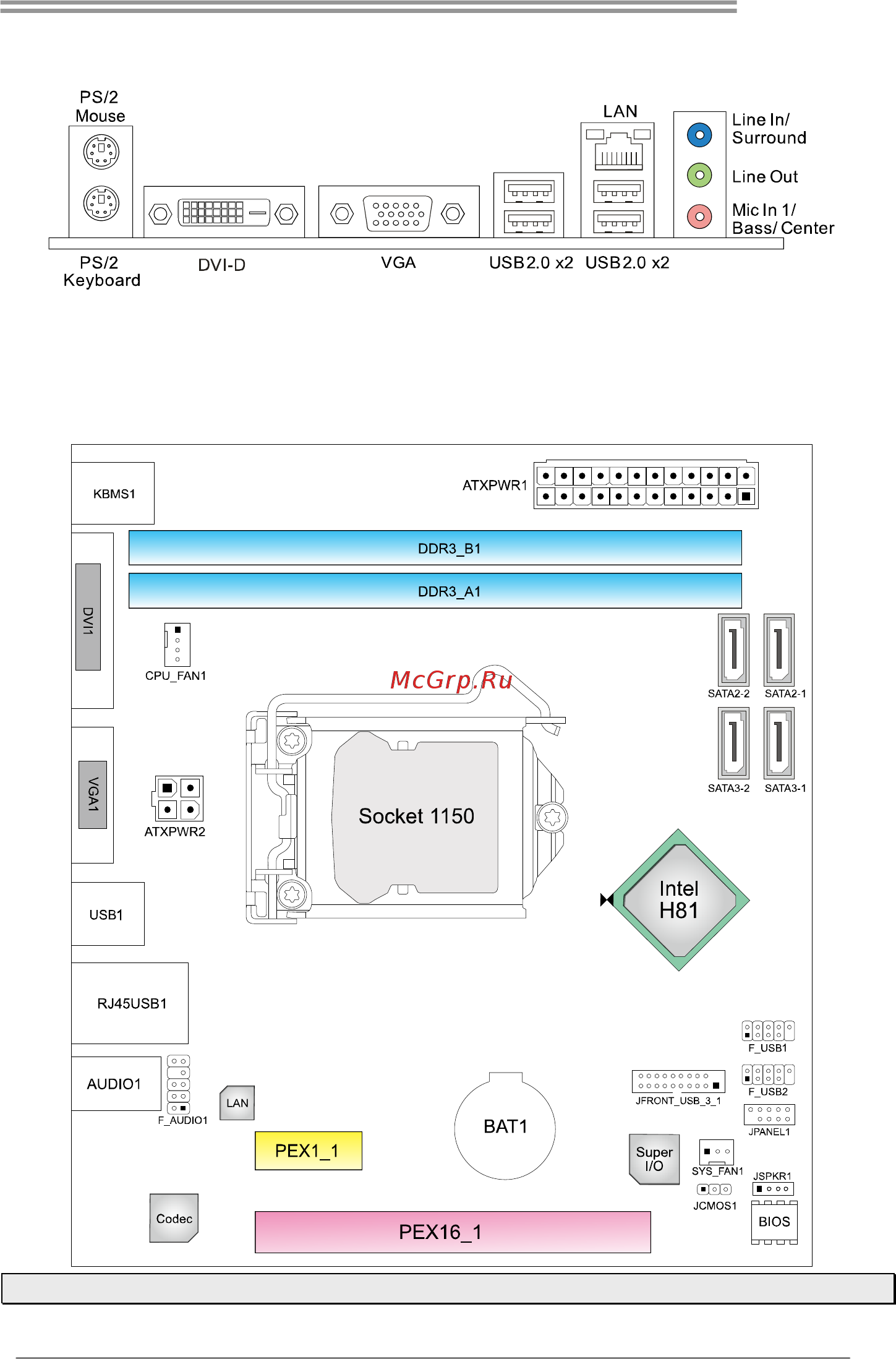

1.4 Rear Panel Connectors
Note1: DVI & VGA ports only work with an Intel® integrated Graphics Processor.
Note2: Maximum resolution:
DVI: 1920 x 1200 @60Hz
VGA: 1920 x 1200 @60Hz
1.5 Motherboard Layout
Note: ■ represents the 1
st
pin.
