Biostar H81MGC Версия 7.4 [11/37] Install system memory
![Biostar H81MLC Версия 7.3 [11/37] Install system memory](/views2/1708991/page11/bgb.png)
H81MLC/H81MHC/H81MDC/H81MGC
9

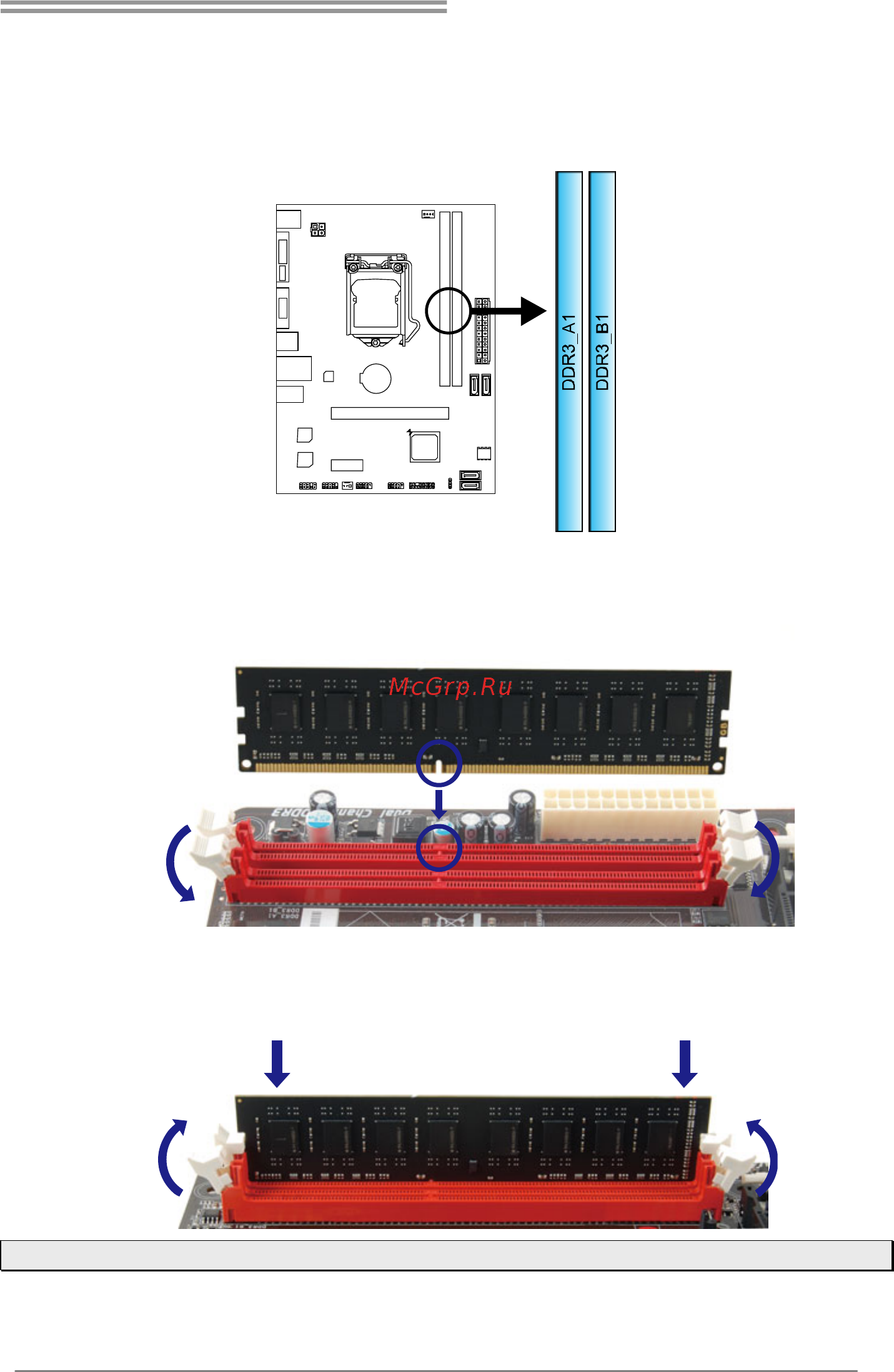

2.4 Install System Memory
DDR3 Modules
Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM
on the slot such that the notch on the DIMM matches the break on the slot.
Step 2: Insert the DIMM vertically and firmly into the slot until the retaining clips
snap back in place and the DIMM is properly seated.
Note: If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again.
