TZ77A/TZ75A
11
2.4 CONNECTORS AND SLOTS

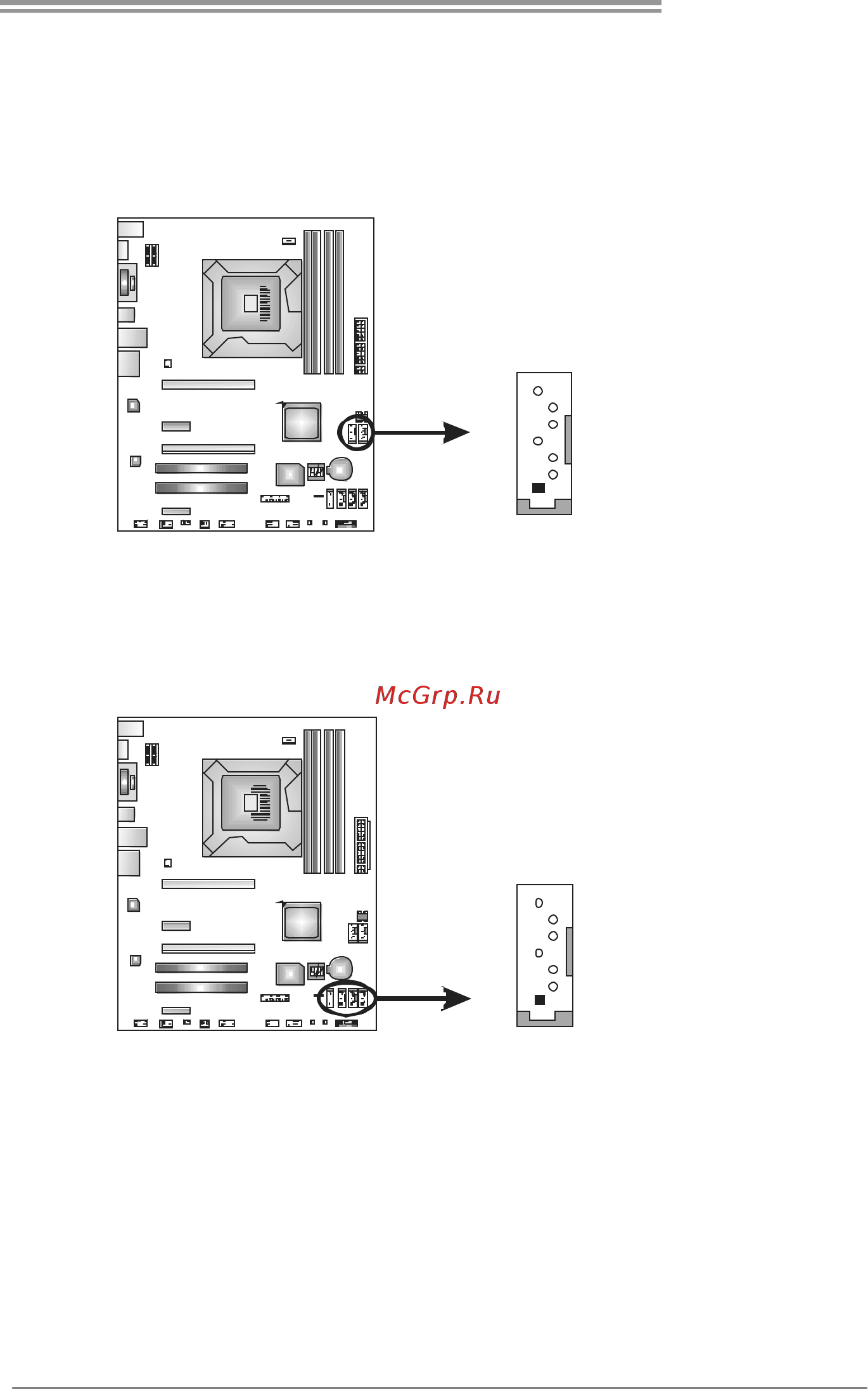

SATA1/SATA2: Serial ATA3.0 Connectors
The motherboard has a PCI to SATA Controller with 2 channels SATA interface,
it satisfies the SATA 3.0 spec and with transfer rate of 6.0Gb/s.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
1
4
7
SATA 1 S ATA 2
7 Ground
SATA3 ~ 6: Serial ATA2.0 Connectors
The motherboard has a PCI to SATA Controller with 4 channels SATA2 interface,
it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.
Pin
Assignment
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
1
4
7
SATA 6 S ATA 4
SATA5 SATA 3
7 Ground
