TH61 ITX
3
SPEC
USB3.0 Connector x1 Each connector supports 2 front panel USB3.0 ports
Consumer IR Connector x1 Supports infrared function
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
S/PDIF Out x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN port x1
USB2.0 Port x4
USB3.0 Port x2
Audio Jack x5
Connects to PS/2 Keyboard
Provides digital audio out function
Connects to HDMI cable
Connect to D-SUB monitor
Connect to DVI monitor
Connect to RJ-45 ethernet cable
Connect to USB2.0 devices
Connect to USB3.0 devices (by Asmedia ASM1042)
and USB2.0/USB1.X devices (by H61)
Provide Audio-In/Out and Mic. connection
Board Size
170 (W) x 170 (L) mm Mini-ITX
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove support
for any OS with or without notice

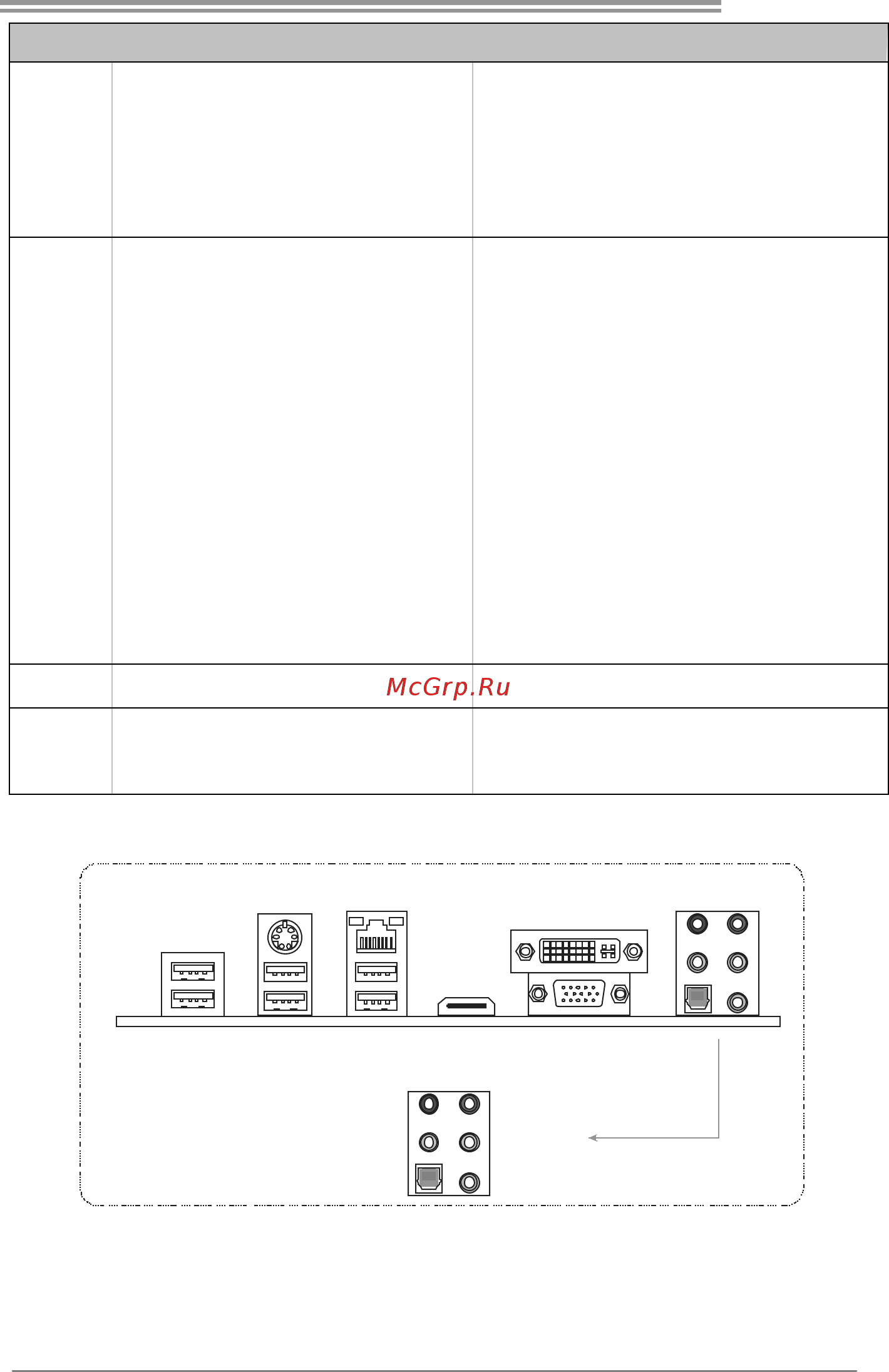

1.4 REAR PANEL CONNECTORS
Line In
Line Out
Mic In
Rear
Side
US B3.0X2
LAN
S/PDIF
Out
HDMI
DV I- D
VGA
PS/2
Keyboard
US B2.0X2USB2.0X2
NOTE: Any of 2 HDMI / DVI-D / VGA can provide video signals out-put function.
NOTE: USB3.0 ports are backward compatible with USB2.0/USB1.X devices. USB3.0 is
controlled by Asmedia ASM1042, but, USB2.0/USB1.X is controlled by H61.
