1. Introduction
1.1 Checklist
Thank you for purchasing our POE-400 IEEE 802.3af Power
over Ethernet Injector Hub, your Power over Ethernet
Injector Hub package shall contains following contents:
Check the contents of your package for following parts:
l Power over Ethernet Injector Hub x 1
l User’s Manual CD x 1
l Power Adapter x 1
l Power Cord x 1
If any of these pieces are missing or damaged, please
contact your dealer immediately, if possible, retain the
carton including the original packing material, and use them
against to repack the product in case there is a need to
return it to us for repair.
1.3 Features
u Complies with IEEE 802.3, IEEE 802.3u, 10/100Base-TX
u Complies with IEEE 802.3af, 48VDC power over unused
twisted-pair wires
u 4-Port IEEE 802.3af in-line mid-span power injector box
u Full power support for per POE port
u Circuit protection prevent power interference between
ports
u LED indicator power input indication
u Desktop palm size
2.2 POE-400 and POE-152S, the IEEE
802.3af Injector / Splitter and Equipment
Installation
For the places hard to nd the power inlet, the POE-400
provide the easiest way to power your Ethernet devices
such as PLANET IEEE 802.3af Power over Ethernet Splitter
(POE-152S) with Internet Camera (ICA-M220 ) or Wireless
Access Point (WAP-4060PE) installed in the small ofce.
To control the power system of your networking devices, the
POE-400 can directly co-work with PLANET ICA-M230 and
POE IP Phone VIP-351PT to build VoIP telephony network in
the ofce. Besides, the POE-400 can be directly deployed to
connect the third party IEEE 802.3af devices like Cisco AP
and POE switches installed 100 meters away.

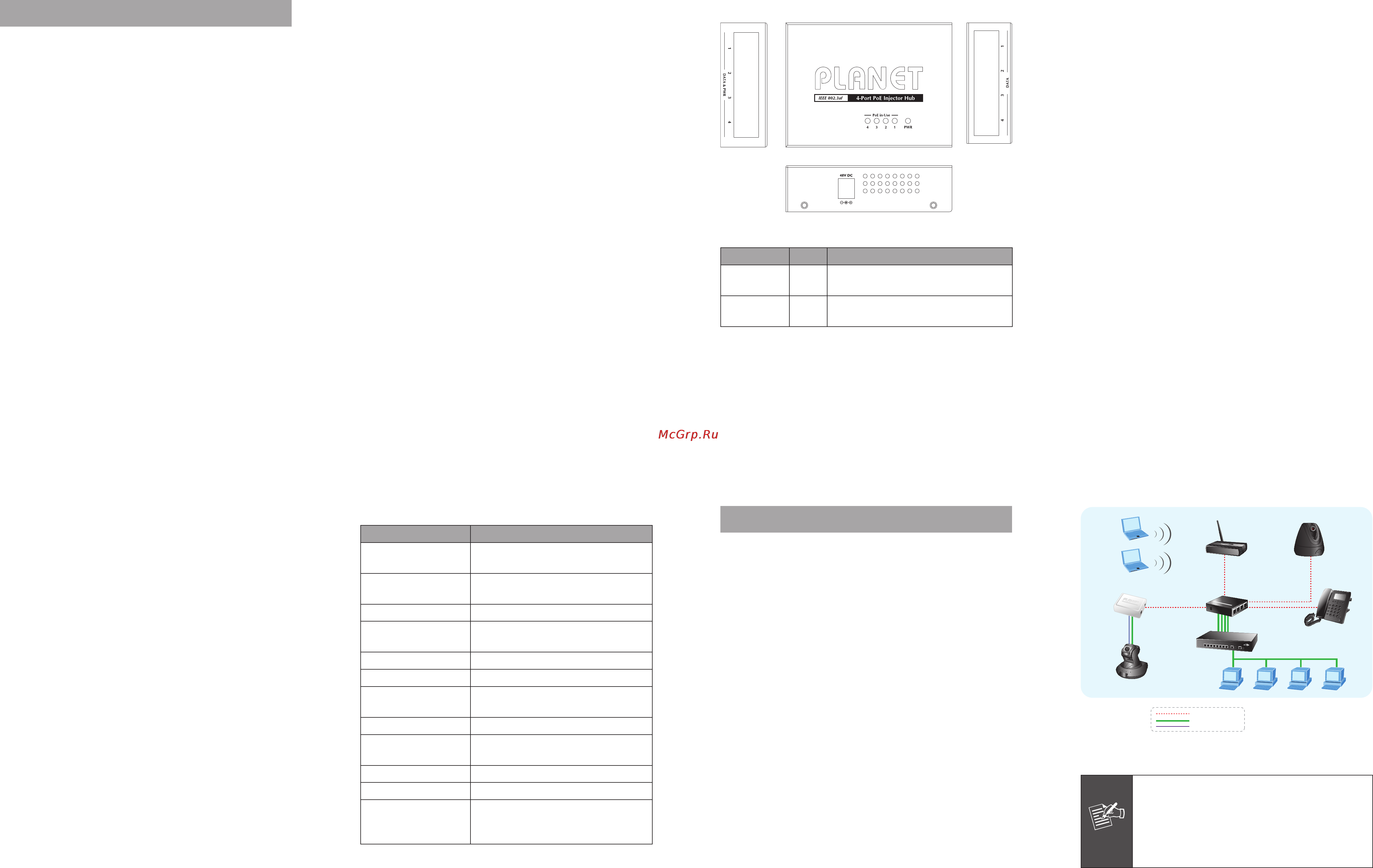

1.5 Product Outlook
LED denition:
LED Color Function
Power Green
Lights to indicate that the POE-400
has power.
PoE Ready /
In-Use
Green
Lights to indicate the port is
providing 48VDC in-line power.
1.2 About the Power over Ethernet Injector
Hub
The PLANET POE-400 is a 4-Port IEEE 802.3af Power over
Ethernet injector hub complied with IEEE 802.3, IEEE
802.3u and IEEE 802.3af standards. Equipped with 4
10/100Base-TX Fast Ethernet ports, the POE-400 supports
full 48VDC power for any remote IEEE 802.3af powered
device (PD) like Wireless LAN Access Point, IP Phone, and
LAN Camera. Supporting power supply of 70 Watts, POE-
400 provides sufcient power to the 4 remote devices.
There are 8 RJ-45 STP ports on POE-400. Half of the ports
on right panel function as "Data" and the other half on left
panel function as "Data and Power". Each of the "Data
and Power" port as an injector which inserts DC Voltage
into the CAT 5 cable allowing the cable between the Injector
and Splitter to transfer data and power simultaneously.
1.4 Specication
Model POE-400
Ethernet Connector
8-Port RJ-45 STP with 4-Port "Data"
and 4-Port "Data and Power"
Ethernet Data Rate
10/100Mbps (vary on Ethernet
device attached)
Input Voltage DC 48V, 1.5A
Number of Device
can be Power
4
Ethernet Cable TIA/EIA-568, Category 5/5e cable
LED Indicator 1 x power, 4 x POE ready / in-use
Operating
Environment
0~50 Degree C, 5%~90%RH
Storage Environment -20~70 Degree C, 5%~90%RH
Dimension
(H x W x D)
26 x 70 x 97mm
Weight 220g
Emission FCC Class B, CE mark
Standard Compliance
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3af Power over Ethernet
2. Hardware Installation
This product provides two different running speeds –
10Mbps, 100Mbps, in the same device and automatically
distinguishes the speed of incoming connection.
This section describes the hardware features of POE-400.
Before connecting any network device to the POE-400, read
this chapter carefully.
2.1. Before Installation
Before your installation, it is recommended to check your
network environment. If there is any IEEE 802.3af devices
need to power on, the POE-400 can provide you a way
to supply power for this Ethernet device conveniently and
easily. The POE-400 equips with an AC-DC adapter with
DC 48V input and injects this DC power into the pin of the
twisted pair cable (pair 4, 5 and pair 7, 8).
If there is very difcult to nd a power socket for AC-DC
Adapter of your non-IEEE 802.3af networked device, the
POE-400 and POE-152S can provide you a way to supply
DC power for this Ethernet device conveniently and easily.
The 10Mbps or 100Mbps speed, duplex mode from Data
port of POE-400 depends on which Ethernet device
attached.
Notebook
PC
ICA-M230
ICA-M220
POE-152S
SGSD-1022
POE-400
WAP-4060PE
VIP-351PT
Power+Data
Data
Power
Figure 1: Connection architecture over POE-400
Note
1. According to IEEE 802.3af standard, the
POE-400 will not inject power to the cable
if not connecting to IEEE 802.3af devices.
2. Due to the capability of IEEE 802.3af
standard, the POE-400 can directly connect
with any IEEE 802.3af end-nodes.
