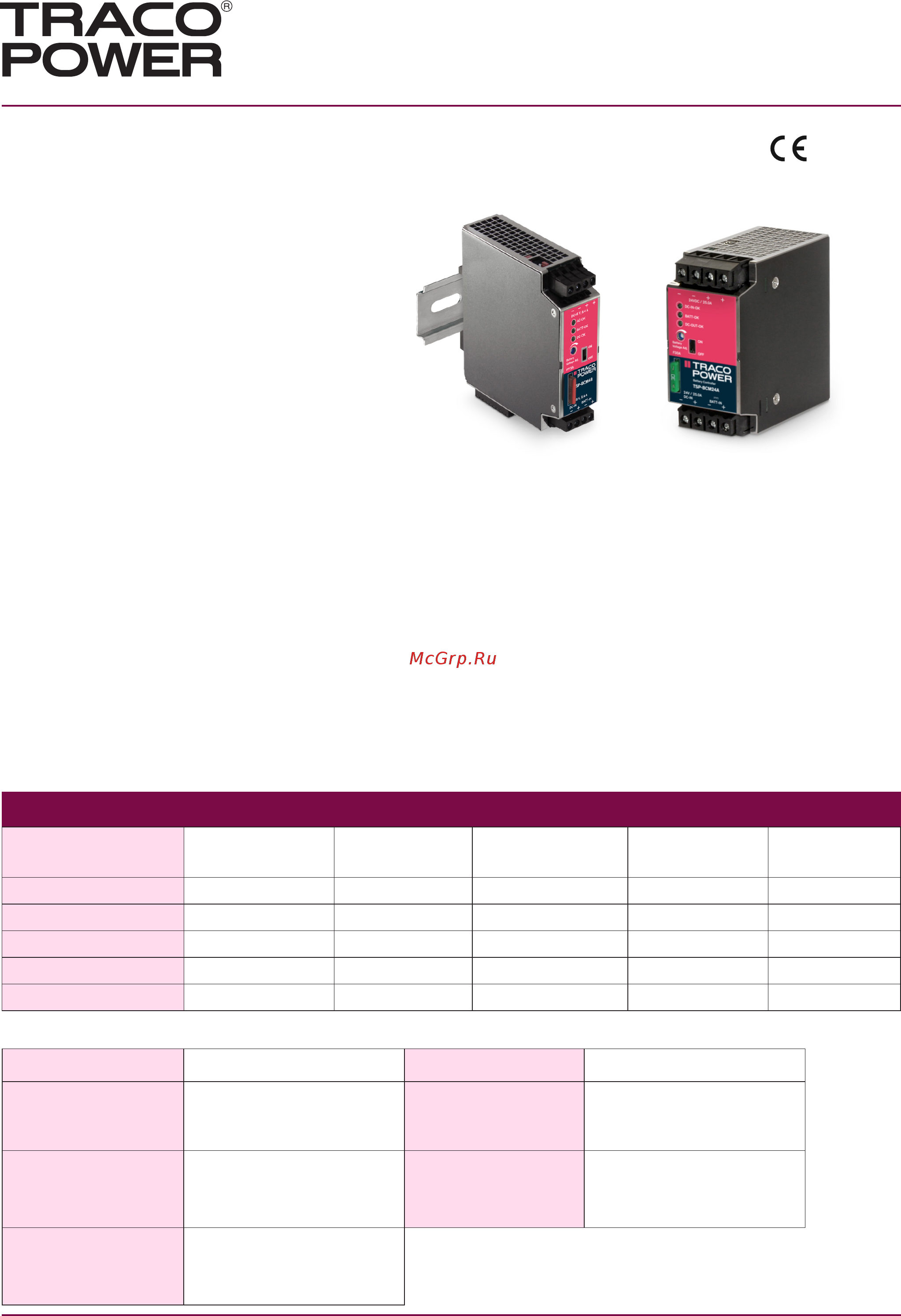

www.tracopower.com Page 1 of 6
Battery Controller Modules
TSP-BCM Series, 72–600 Watt
Features
◆ Battery protection for over voltage,
deep discharge, short circuit and
reverse connection
◆ Alarm outputs for input, output and
battery condition
◆ Remote On/Off for battery and power
supply
◆ Controlled end of charge voltage by
temperature sensor
◆ International safety approval package
◆ 3-year product warranty
Order Code Input
Max Power
per Input
Output Voltage
Output Current
max.*
Output Power
max.
TSP–BCM12
12 VDC
144 W 12 VDC 12.0 A 144 W
TSP–BCM24
24 VDC
360 W
24 VDC
15.0 A 360 W
TSP–BCM48
48 VDC
360 W
48 VDC
7.5 A 360 W
TSP–BCM24A
24 VDC
600 W
24 VDC
25.0 A 600 W
TSP–BCM48A
48 VDC
600 W
48 VDC
12.5 A 600 W
Models
* Maximum current at nominal Vout
IEC 60950-1
EMC
LVD
Battery Controler Module Possible TSP input source Battery Controler Module Possible TSP input source
TSP–BCM12
TSP 70-112
TSP 140-112
TSP–BCM24A
TSP 600-124
TSP–BCM24
TSP 90-124
TSP 180-124(-WR)
TSP 360-124(-WR)
TSP–BCM48A
TSP 600-148
TSP–BCM48
TSP 90-148
TSP 180-148
TSP 360-148
C B
Scheme
This module provides a professional battery management system to charge and
monitor an external lead-acid battery. Together with a power supply of the TSP
series, a perfect DC-UPS system can be configured. The connected battery will be
charged and held in charged mode by the power supply. In the event of a mains
power failure the battery will supply the output power until the battery is dischar-
ged. As a consequence, the output voltage of the system is equivalent to the battery
voltage. To avoid overcharging the battery, an external temperature sensor adjusts
the battery voltage automatically to the required end of charge voltage. This can
extend the battery life.
The battery is protected against deep discharge. Mains power and battery status
are monitored regularly and failures indicated by corresponding LED’s and alarm
outputs. The module also provides an external On/Off input to switch-off both,
power supply and battery.
