Connector Description
AUDIO OUT An external speaker can be plugged in.
AUDIO IN An external microphone can be plugged in.
PWR
Connect the supplied power adapter (12VDC 1.0A).
When this camera is obtained power from PoE, you
don’t have to attach the power adapter to the ICA-
510.
Video OUT Analog video output.
LAN (PoE)
Connect your Camera to a 10/100Base-TX hub or
switch. It is compliant with IEEE 802.3af PoE. Either
mid-span PSE or end-span PSE supported.
2.3 Physical Installation

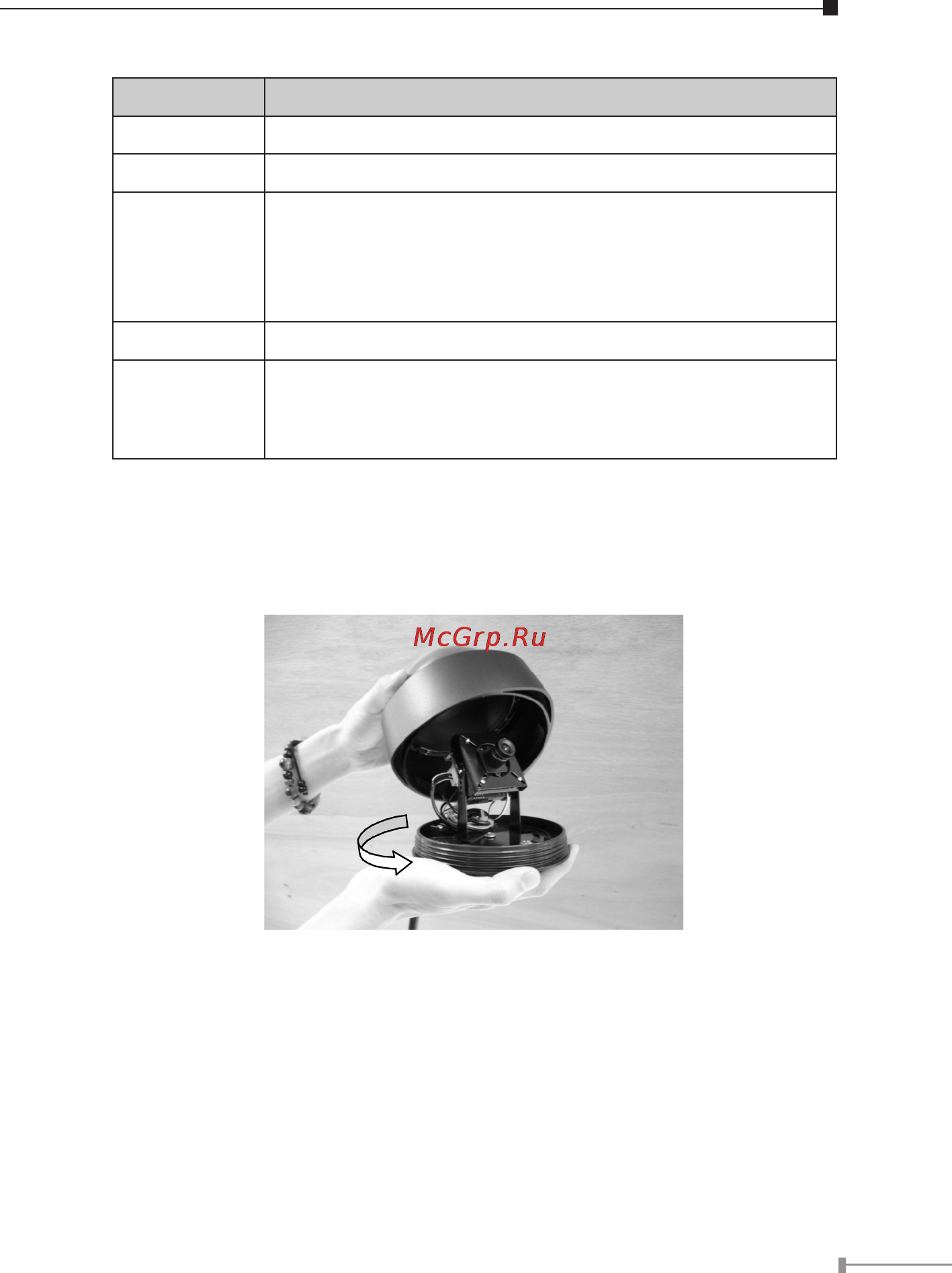

1. Hold the base and rotate the cover to open this camera.
