5. Connect the external power supply to IVS-110

Plug in power adapter and connect to power source. If there has a PoE switch in your

network, you can connect the IVS-110 LAN cable to this PoE switch to obtain power. The

power adapter is unnecessary when IVS-110 is connected to a PoE switch. After power on,

IVS-110 will start to operate. Once you have installed the IVS-110 well, the status LED will

turn green. It means the system is booting up successfully. Furthermore, if you have a proper

network connection, and access to the IVS-110, the LED will flash green.

6. Connect the power supply to one external camera (option)

The IVS-110 can provide 12V DC out to supply one external camera. The output current is

400mA maximum.

2.4 Initial Utility Installation

This chapter shows how to quick set up your IVS-110. The IVS-110 is with the default settings.

However to help you find the networked camera quickly the windows utility-IP Wizard can search

the cameras in the network that shall help you to configure some basic setting before you started

advanced management and monitoring.

1. Insert the bundled CD into the CD-ROM drive to launch the autorun program. Once completed,

a welcome menu screen will appear. Please click video server mode name to next page.

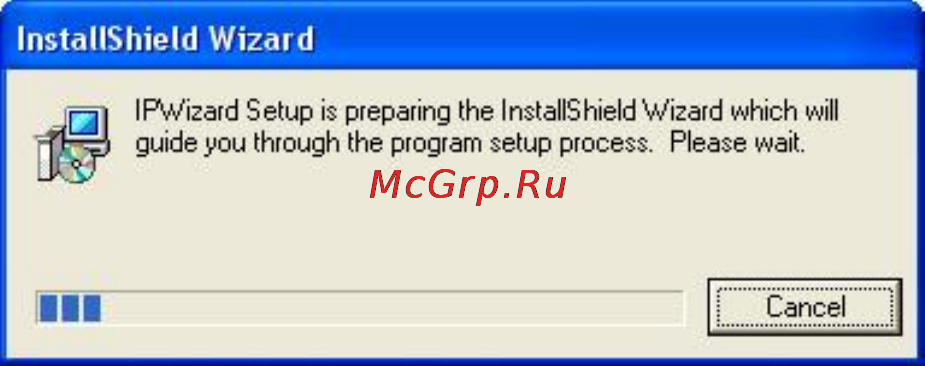

2. Click the “IP Wizard” hyperlink; you will see the InstallShield Wizard dialog box as below.

NOTE: If the welcome screen does not appear, click “Start” at the taskbar. Then, select

“Run” and type “D:\Utility\IPWizard\setup.exe”, assume D is your CD-ROM drive.
