H55 HD
3
SPEC
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard / Mouse x1
HDMI Port x1
VGA Port x1
DVI-D Port x1
LAN Port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard / Mouse
Connects to HDMI cable
Connect to D-SUB monitor
Connect to DVI monitor
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size
200(W) x 244 (L) mm
OS Support
Windows XP / Vista / 7
Biostar reserves the right to add or remove support for
any OS with or without notice

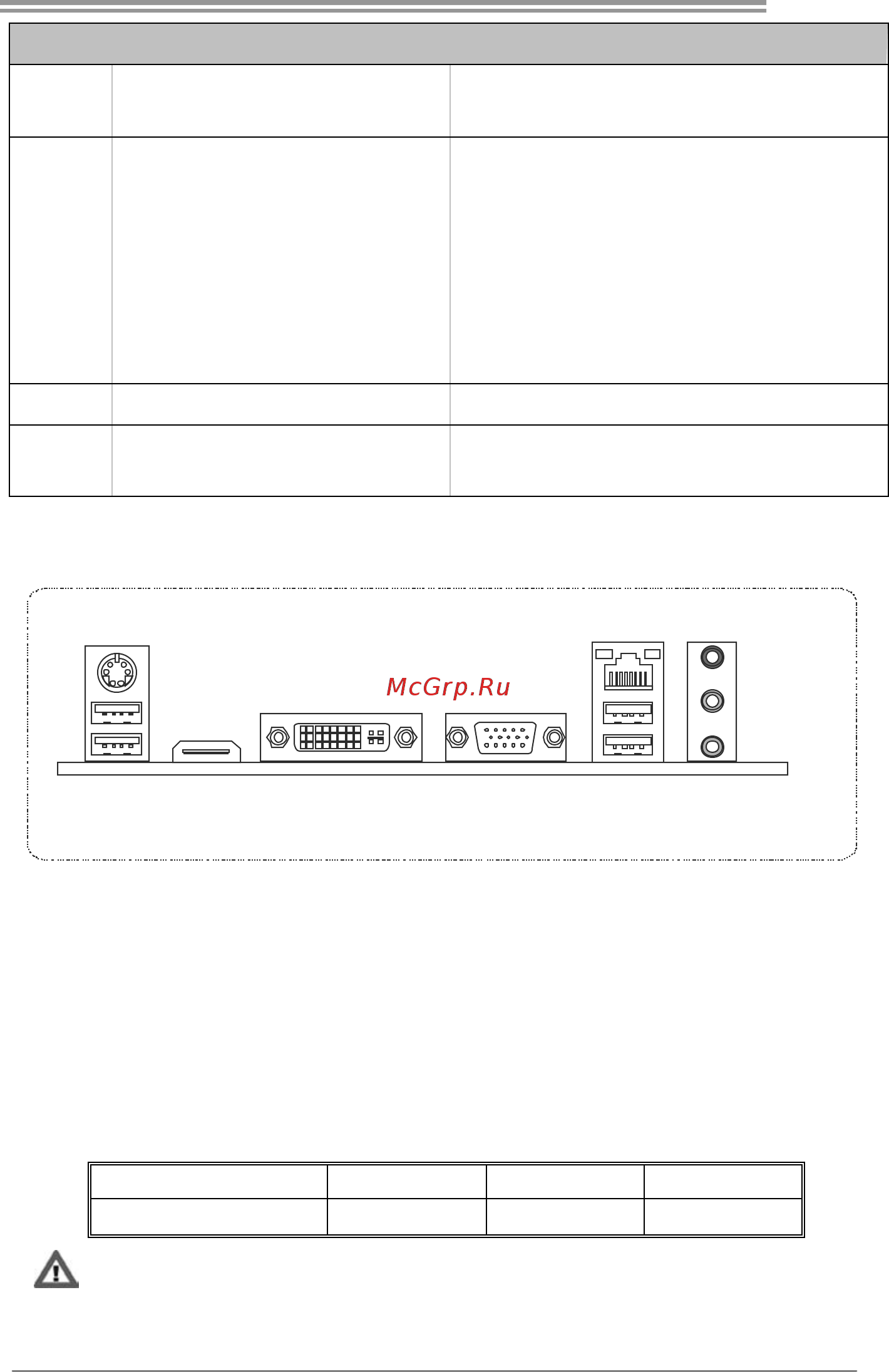

1.4 REAR PANEL CONNECTORS
USBX2
LAN
HDMI VGADVI-D
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
PS/2
Keyboard / Mouse
USBX2
NOTE: HDMI / DV I-D / VGA Output req uire an Intel Core family processor with Intel Graphics
Te c h no l o g y.
NOTE: Maximum resolution:
HDMI: 1920 x 1200 @60Hz
DVI: 1920 x 1200 @60Hz
VGA: 2048 x 1536 @75Hz
NOTE: This motherboard supports Multiple VGA output, and the configuration is as below:
(HDMI is not supported under DOS and BIOS setup.)
Display Devices
VGA + HDMI
VGA + DVI-D HDMI + DVI-D
Enabled O O X
Caution: HDMI / DVI-D can not be plugged at the same time, or there will be no video output.
