Biostar TP55 Версия 6.x [10/59] A memory modules

Motherboard Manual

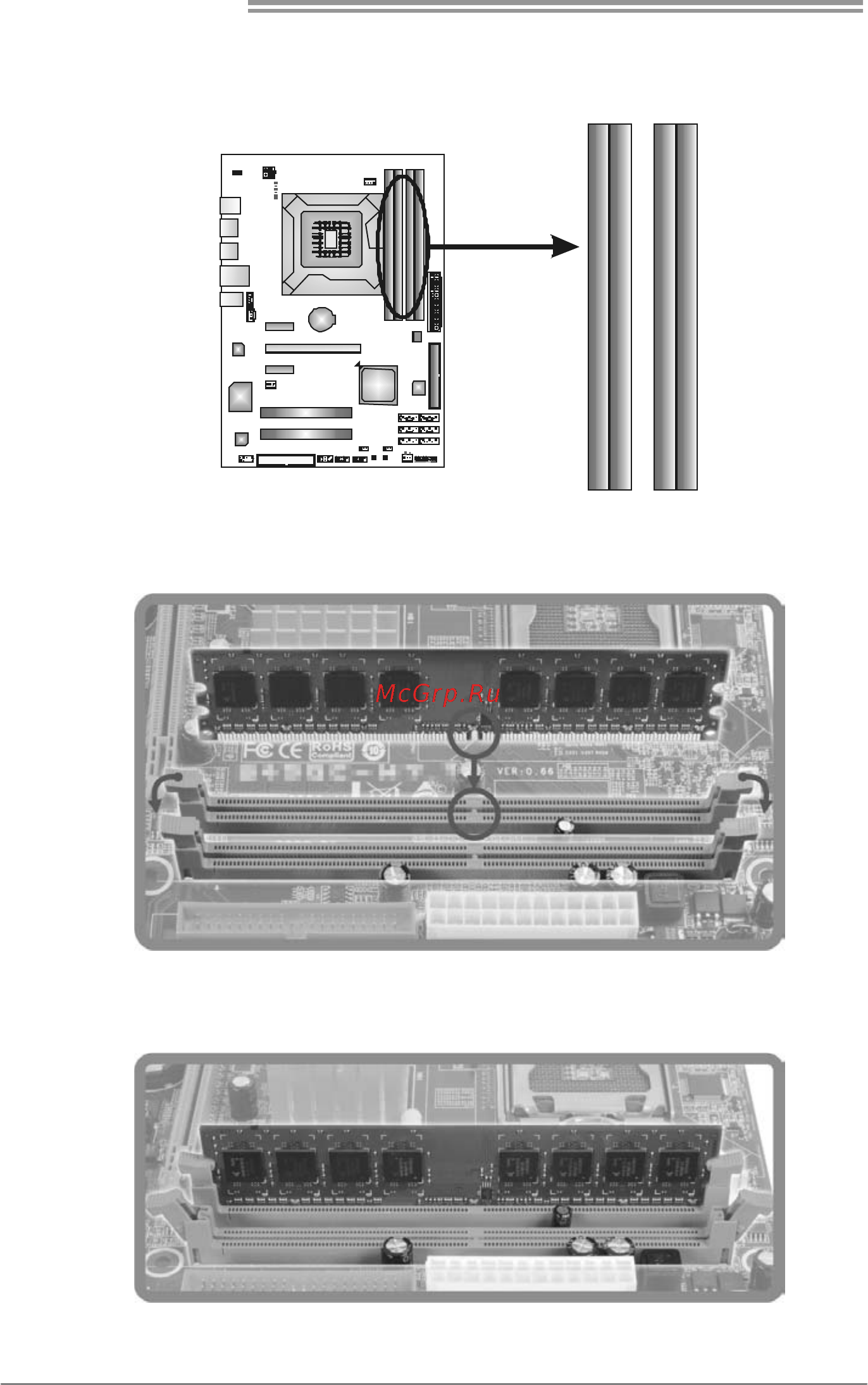

2.3 INSTALLING SYSTEM MEMORY

A. Memory Modules

DDR3 _A2

DDR3 _B2

DDR3 _A1

DDR3 _B1

1. Unlock a DIMM slot by pressing the retaining clips outward. Align a

DIMM on the slot such that the notch on the DIMM matches the

break on the Slot.

2. Insert the DIMM vertically and firmly into the slot until the retaining

chip snap back in place and the DIMM is properly seated.
