Biostar TP55 Версия 6.x [20/59] On board buttons

Motherboard Manual

On-Board LED Indicators

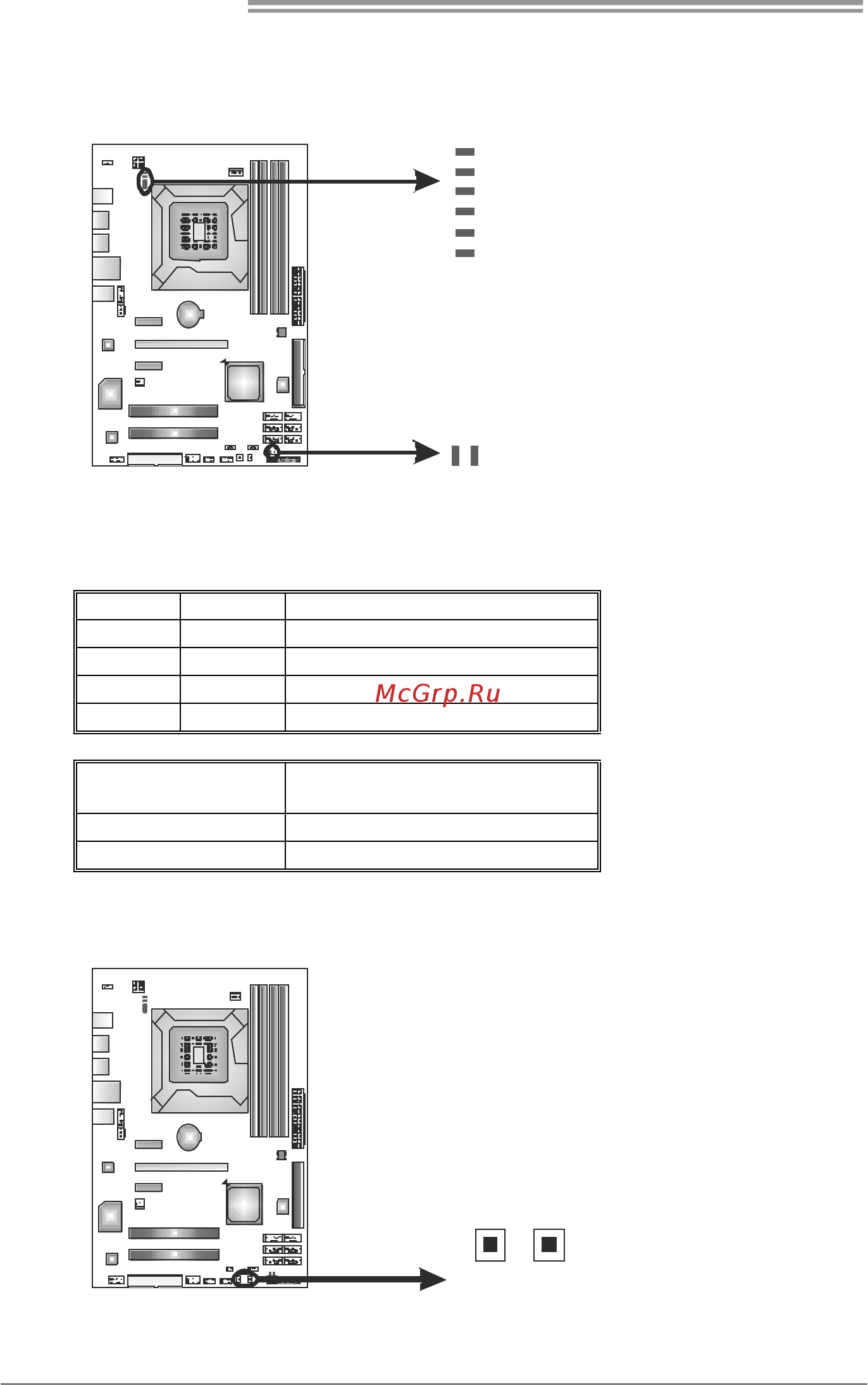

There are 8 LED indicators on the motherboard showing system status.

LED_D1

LED_D2

PH3_D3

PH4_D4

PH1_D1

PH2_D2

VTT_D2

VTT_D1

LED1 & LED2: Debug Indicators

PH1_D1 ~ PH4_D4/VTT_D1 ~ VTT_D2: Power Status Indicators

Please refer to the tables below for specific messages:

LED1 LED2 Message

ON ON Normal

ON OFF Memory Error

OFF ON VGA Error

OFF OFF Abnormal: CPU / Chipset error.

PH1_D1 ~ PH4_D4

VTT_D1 ~ VTT_D2

Phase Indicator

ON Phase Active

OFF Phase Inactive

On-Board Buttons

There are 2 on-board buttons.

SW_RST1

SW_PWR1

SW_RST1: Reset button.

SW_PWR1: Power Switch button.
