G41D3G
3
SPEC
Front Audio Connector x1 Supports front panel audio function
CD-in Connector x1 Supports CD audio-in function
S/PDIF out Connector x1 Supports digital audio out function
CPU Fan Header x1 CPU Fan power supply (with Smart Fan function)
System Fan Header x1 System Fan Power supply
Clear CMOS Header x1 Restore CMOS data to factory default
USB Connector x2 Each connector supports 2 front panel USB ports
Power Connector (24pin) x1 Connects to Power supply
Power Connector (4pin) x1 Connects to Power supply
Back Panel
I/O
PS/2 Keyboard x1
PS/2 Mouse x1
VGA port x1
DVI-D Port x1
LAN port x1
USB Port x4
Audio Jack x3
Connects to PS/2 Keyboard
Connects to PS/2 Mouse
Connect to D-SUB monitor
Connect to DVI monitor
Connect to RJ-45 ethernet cable
Connect to USB devices
Provide Audio-In/Out and microphone connection
Board Size
190(W) x 244 (L) mm
OS Support
Windows 2000 / XP / Vista 32 / Vista 64
Biostar reserves the right to add or remove support for
any OS with or without notice

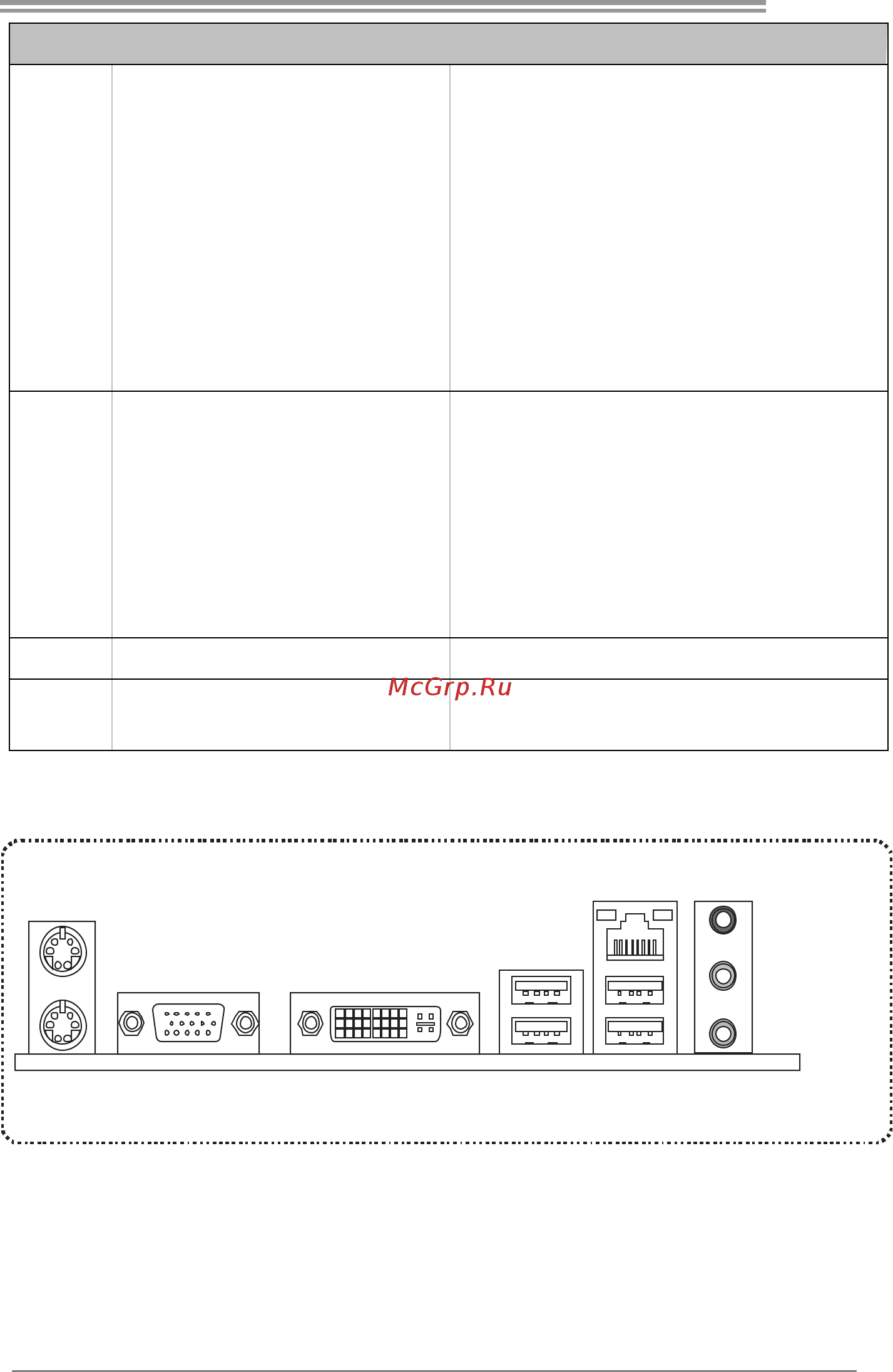

1.4 R
EAR PANEL CONNECTORS
PS/2
Mouse
PS/2
Keyboard
USBX2USBX2
LAN
VGA
Line In/
Surround
Line Out
Mic In 1/
Bass/ Center
DVI-D
1. Since the audio chip supports High Definition Audio Specification, the function of each
audio jack can be defined by software. The input / output function of each audio jack
listed above represents the default setting. However, when connecting external
microphone to the audio port, please use the Line In (blue) and Mic In (Pink) audio jack.
2. HDMI Audio is only available in Windows XP SP3 / Vista 32 / Vista 64
