Motherboard Manual
4

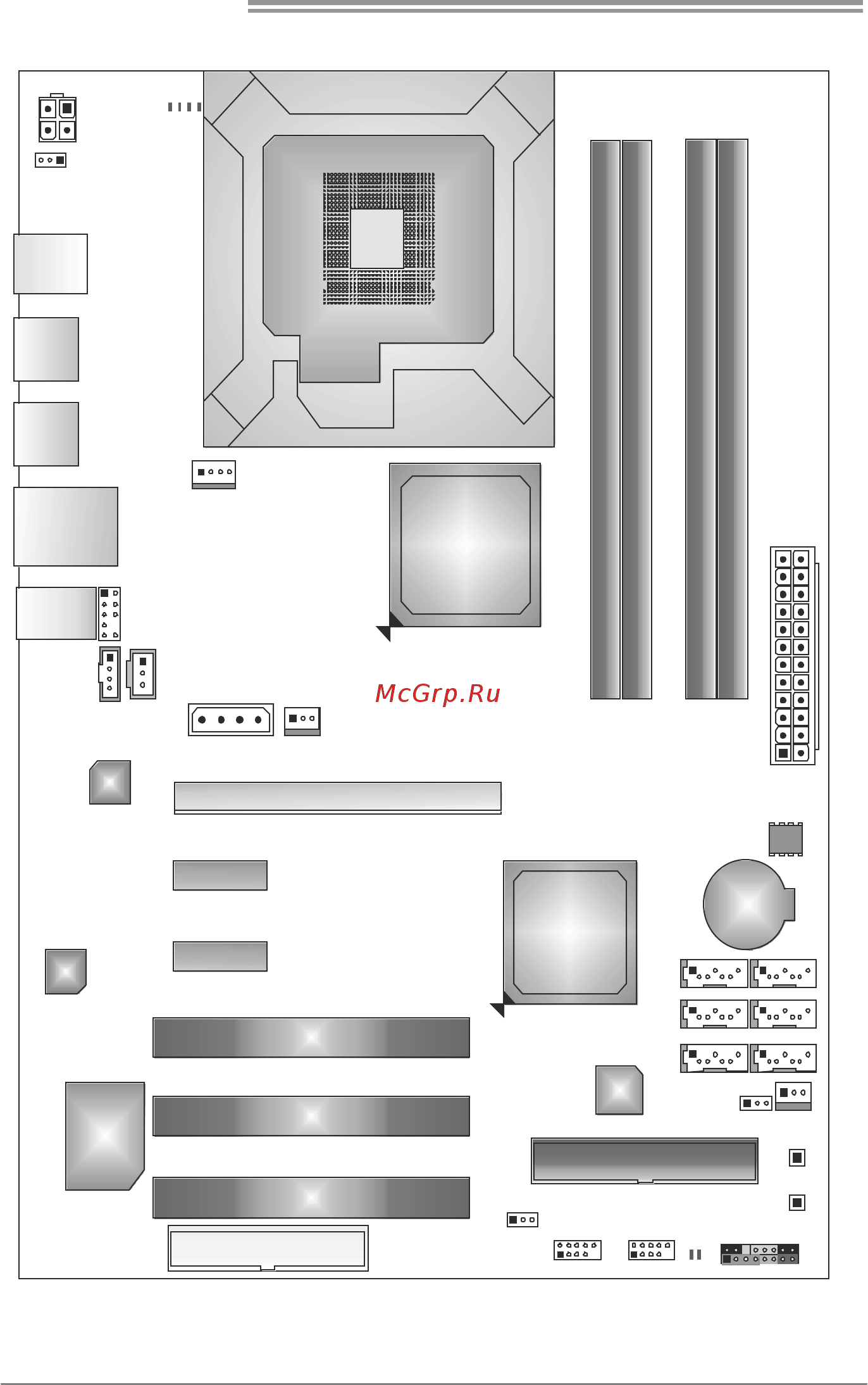

1.5 MOTHERBOARD LAYOUT
KBM S1
USB1
USB2
RJ45USB1
AUDIO1
CD_IN1
SPD I F 1
F_AUDIO1
LA N
CODEC
Super
I/O
FDD1
PCI1
PCI2
PCI3
PEX16_1
PEX1_2
PEX1_1
AUXPWR1
NB_FAN1
CPU_FAN1
JUSBV1
ATXPWR2
JUSBV2
F_ USB2 F_ USB1
LED1
LED2
JPANEL1
SW_RST1
SW_PWR1
IDE1
ATXPWR1
JCMOS1
SYS_FAN1
SATA1SATA2
SATA3SATA4
SATA5
SATA6
DDR 3_ A1
DDR3_A2
DDR 2_ B1
DDR2_B2
BIO S
IDE
BAT1
LGA775
CPU1
Intel
P45/P43
Intel
ICH10
PH 1
PH2
PH4
PH 3
Note: represents the 1■
st
pin.
