945GC-M7 TE
18
PATA IDE Mode
The Choices: Primary (default), Secondary.

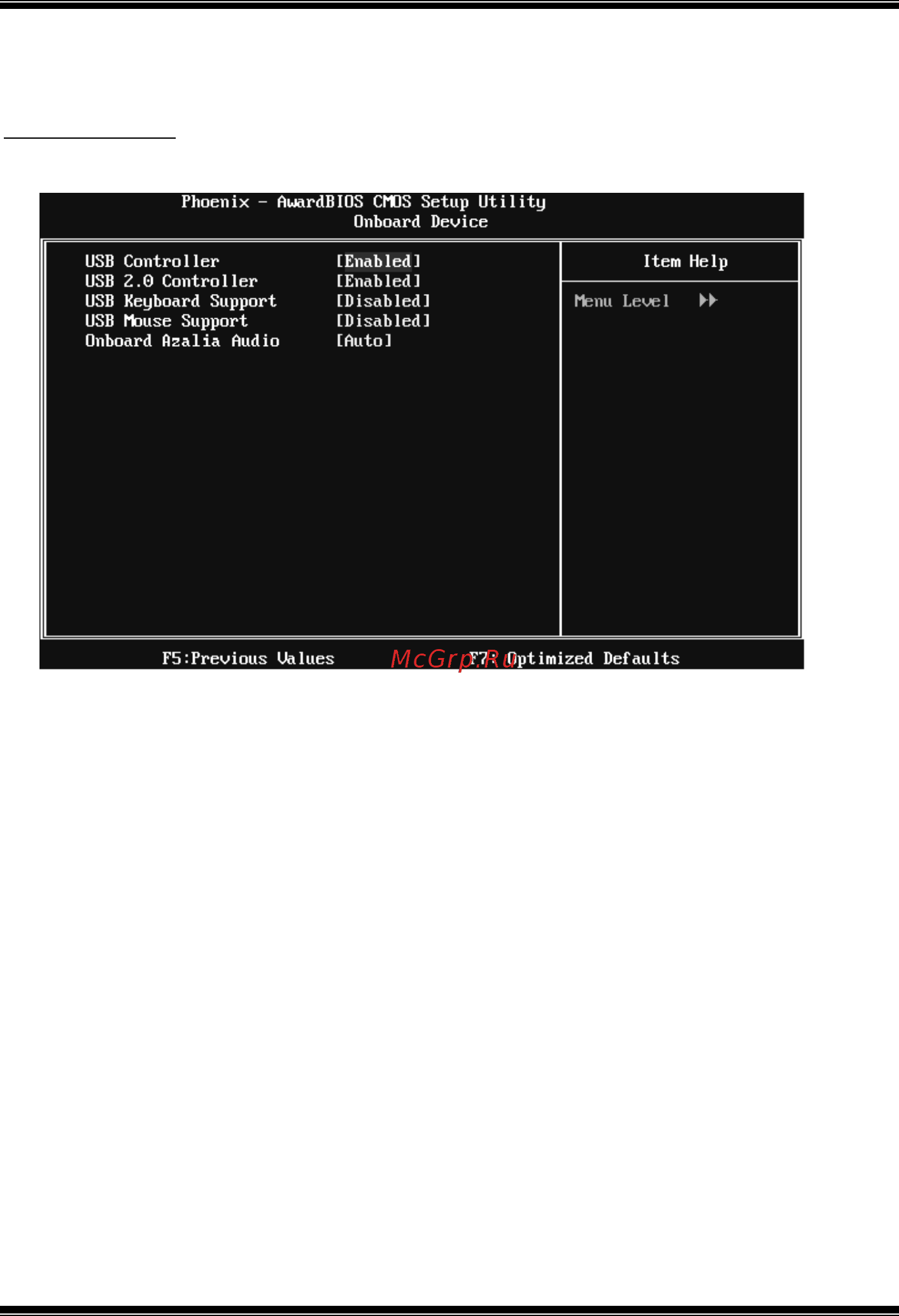

Onboard Device
If you highlight the literal “Press Enter” next to the “Onboard Device” label and
then press the enter key, it will take you a submenu with the following options:
USB Controller
Select Enabled if your system contains a Universal Serial Bus (USB) controller
and you have USB peripherals.
The Choices: Enabled (default), Disabled
USB 2.0 Controller
This entry is to enable or disable EHCI controller only. This BIOS itself may/ may
not have high speed USB support. If the BIOS has high speed USB support built in,
the support will automatically turn on, when high speed device were attached.
The Choices: Enabled (default), Disabled.
USB Ke yboa rd Support
This item allows you to enable or disable the USB Keyboard Legacy Support.
Enabled Enable USB Keyboard Support.
Disabled (default) Disable USB Keyboard Support.
