Biostar J1800NH3 Версия 6.x [13/28] F_audio1 front panel audio header

Chapter 2: Hardware installaon | 13

J1800NH3

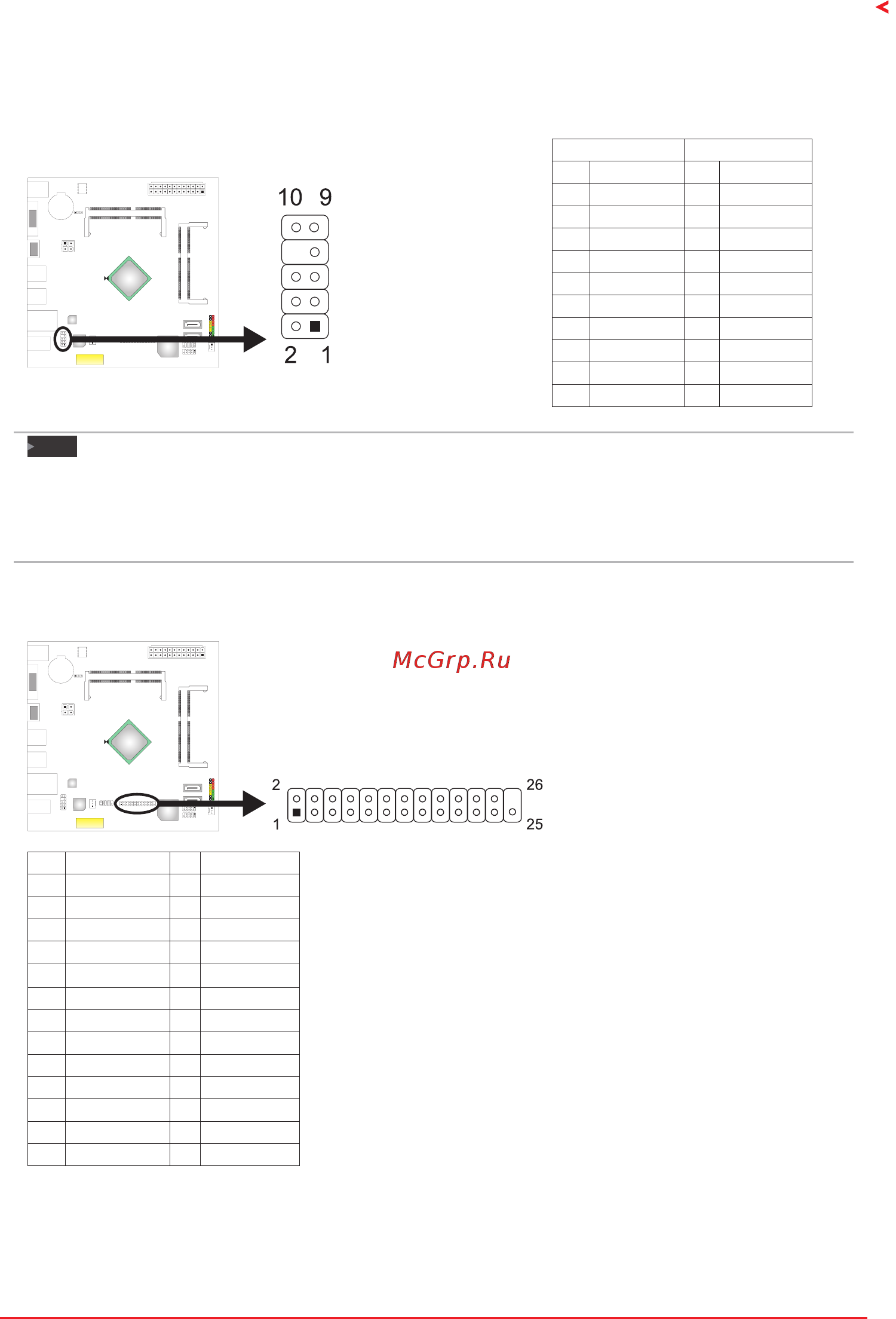

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD

and AC’97 audio standards.

HD Audio AC’97

Pin Assignment Pin Assignment

1 Mic Le in 1 Mic In

2 Ground 2 Ground

3 Mic Right in 3 Mic Power

4 GPIO 4 Audio Power

5 Right line in 5 RT Line Out

6 Jack Sense 6 RT Line Out

7 Front Sense 7 Reserved

8 Key 8 Key

9 Le line in 9 LFT Line Out

10 Jack Sense 10 LFT Line Out

Note

 Itisrecommendedthatyouconnectahigh-denionfrontpanelaudiomoduletothisconnectorto

availofthemotherboard’shighdenionaudiocapability.

 Pleasetrytodisablethe“FrontPanelJackDetecon”ifyouwanttouseanAC’97frontaudiooutput

cable.ThefunconcanbefoundviaO.S.AudioUlity.

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scln 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key
