Biostar B450MH Версия 6.3 [8/34] 2 advanced menu

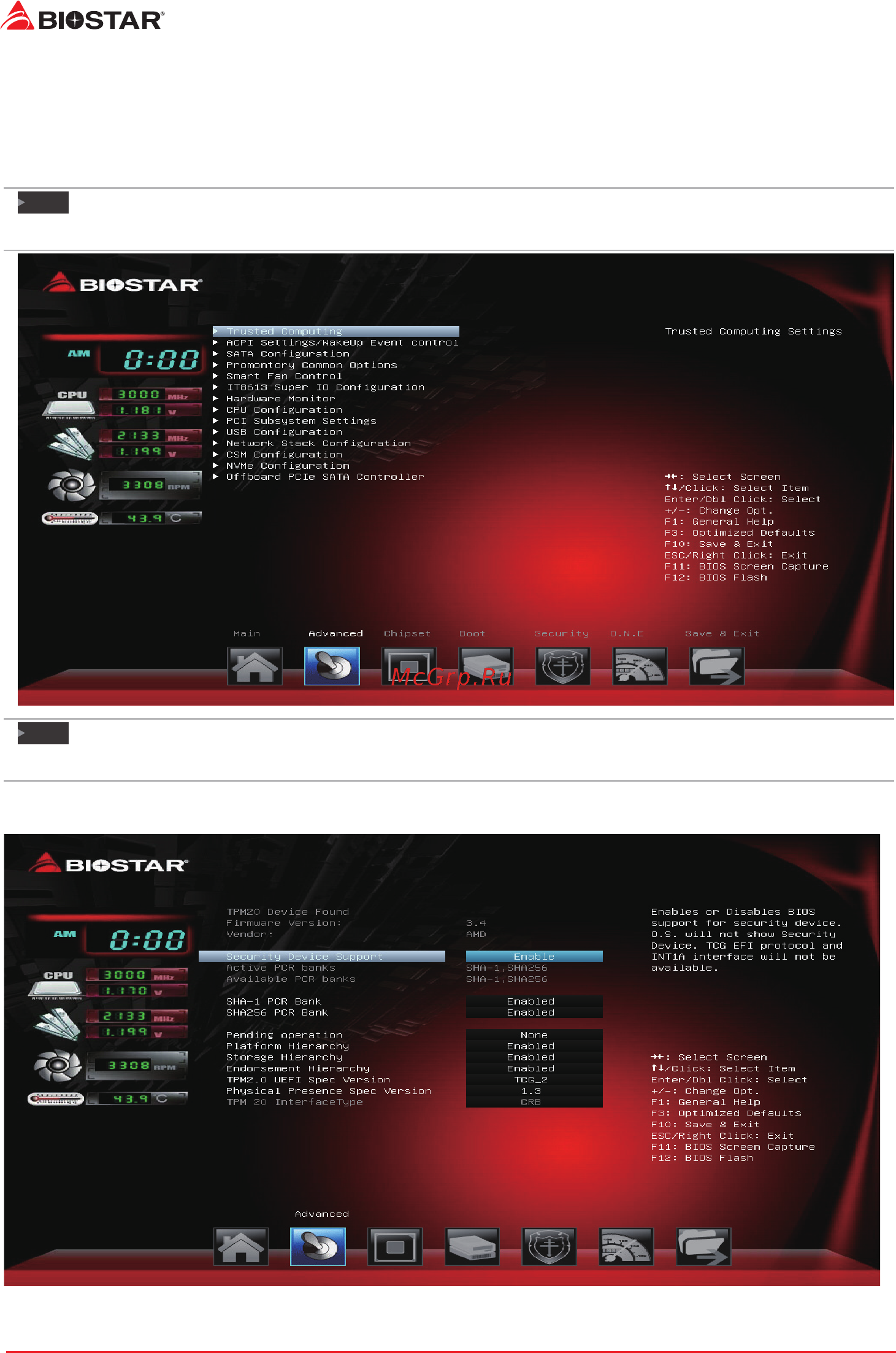

8 | 2. Advanced Menu

2� Advanced Menu

The Advanced Menu allows you to congure the sengs of CPU, Super I/O, Power Management,

and other system devices.

Note

Beware of that seng inappropriate values in items of this menu may cause system to malfuncon.

Note

The AMD CBS opon appears only with Summit Ridge/ Raven Ridge/ Pinnacle Ridge.

Trusted Computing
