Biostar B450MX Версия 6.0 [14/33] It8625 super io configuration

14 | 2. Advanced Menu

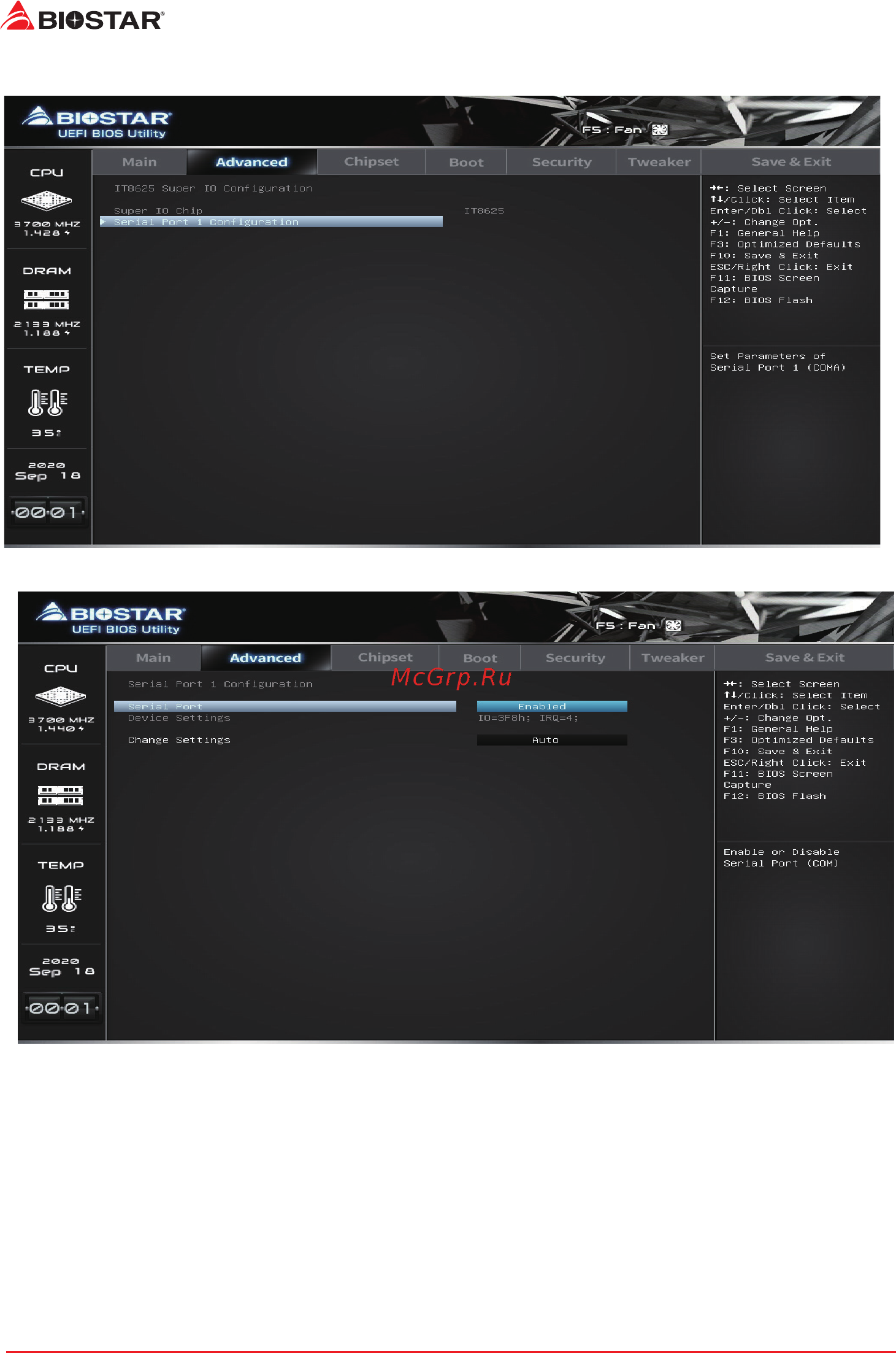

IT8625 Super IO Configuration

Serial Port Conguraon

Serial Port

This item enables or disables serial Port.

Opons: Enabled (Default) / Disabled

Change Sengs

This item allows you to select an opmal sengs for Super IO Device.

Opons: Auto (Default) / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 / IO=2F8h;

IRQ=3,4,5,6,7,9,10,11,12 / IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12 /

IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12
