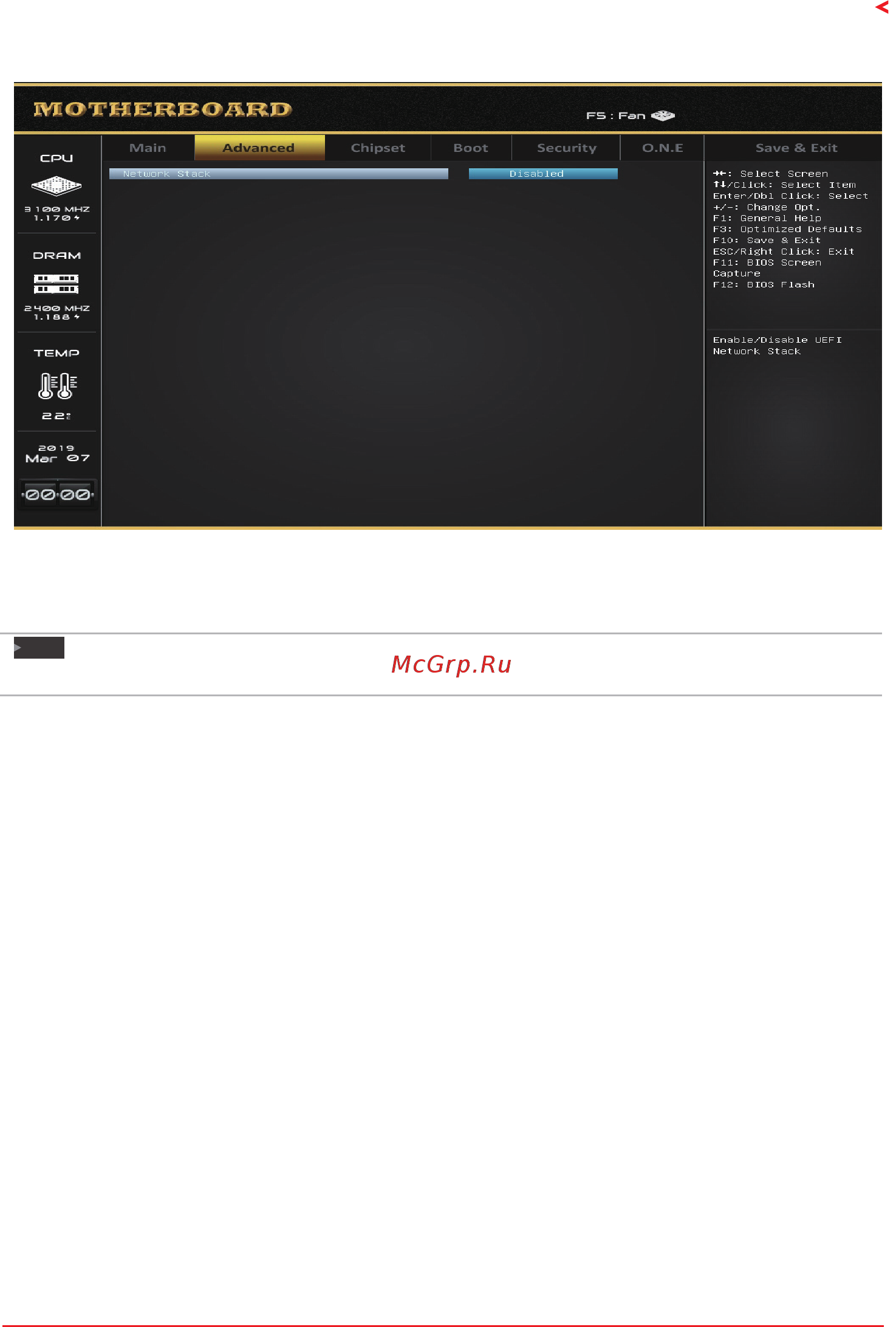

![Biostar A320MH Версия 6.7 [21/32] Network stack configuration](/views2/1710938/page21/bg15.png)
2. Advanced Menu | 21
A320MH
Network Stack Configuration
Network Stack
This item enables or disables UEFI network stack
Opons: Disabled (Default) / Enabled
Note
»
The following items appear only when you set the Network Stack funcon to [Enabled]
IPv4 PXE Support
This item enables or disables IPv4 PXE Boot Support. If disabled IPv4 PXE boot opon will not be
created.
Opons: Disabled (Default) / Enabled
IPv4 HTTP Support
This item enables or disables IPv4 HTTP Boot Support. If disabled IPV4 HTTP boot opon will not
be created.
Opons: Disabled (Default) / Enabled
IPv6 PXE Support
This item enables or disables IPv6 PXE Boot Support. If disabled IPv6 PXE boot opon will not be
created.
Opons: Disabled (Default) / Enabled
IPv6 HTTP Support
This item enables or disables IPv6 HTTP Boot Support. If disabled IPv6 HTTP boot opon will not
be created.
Opons: Disabled (Default) / Enabled
IPSEC Cercate
This item enables or disables IPSEC cercate for Ikev.
Opons: Enabled (Default) / Disabled
PXE boot wait me
Wait me to press ESC key to abort the PXE boot.
Media detect count
Number of mes presence of media will be checked.
