6 | Chapter 1: Introducon

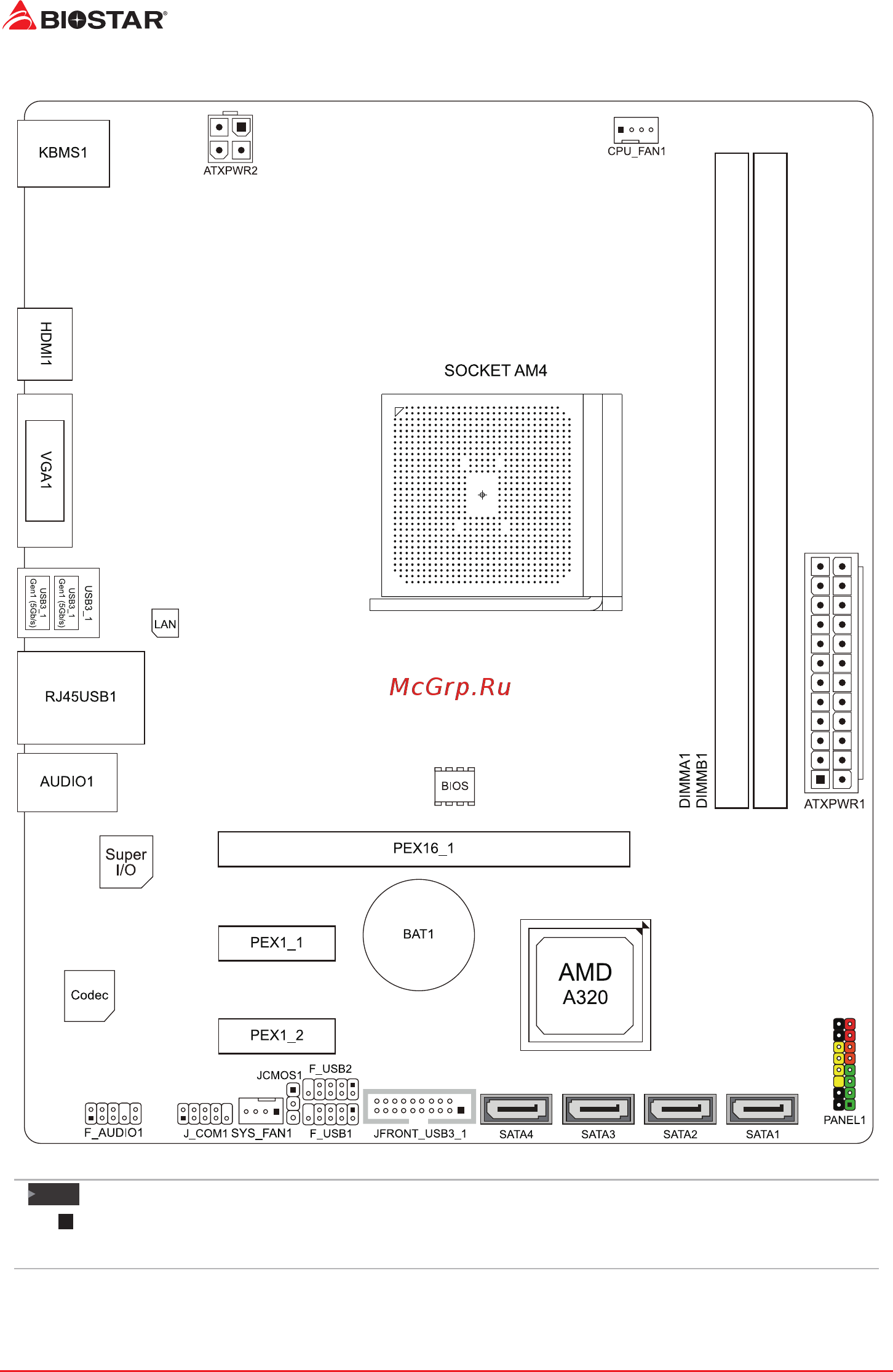

1.5 Motherboard Layout

Note



representsthe1stpin.



HDMIConnectoronlyforA320MHPRO/DVI-DConnectoronlyforA320MDPRO
