16 | 2. Advanced Menu
TPM2�0 UEFI Spec Version
This item select the TCG2 Spec Version support. TCG_1_2: the Compable mode for Win8/Win10
; TCG_2: Support new TCG2 protocol and event format for Win10 or later.
Opons: TCG_2 (Default) / TCG_1_2
Physical Presence Spec Version
This item select to tell O.S. to support PPI Spec Version 1.2 or 1.3 .
Opons: 1.3 (Default) / 1.2
»
some HCK tests might not support 1.3 .
Device Select
This item TPM1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM
2.0 devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2
devices if not found, TPM 1.2 devices will be enumerated.
Opons: Auto (Default) / TPM 1.2 / TPM 2.0

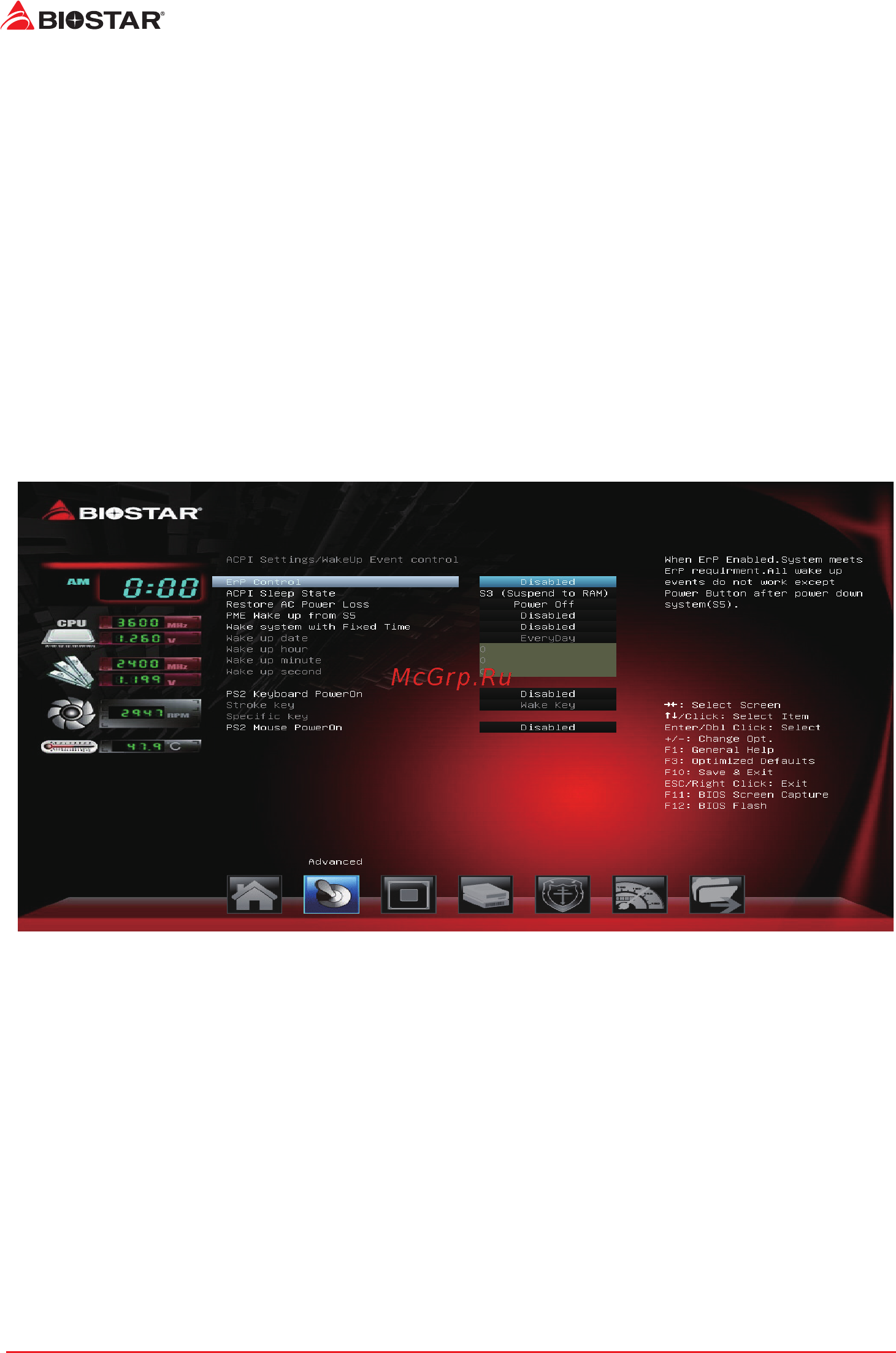

ACPI Settings/WakeUp Event control
ErP Control
This item enables or disables ErP Control funcon. When ErP Enabled, system meets ErP
requirment. All wake up events do not work except Power Buon aer power down system(S5).
Opons: Disabled (Default) / Enabled
ACPI Sleep State
This item select ACPI sleep state the system will enter when the SUSPEND buon is pressed.
Opons: S3 (Suspend to RAM) (Default) / Suspend Disabled
Restore AC Power Loss
The item specify what state to go to when power is re-applied aer a power failure.
Opons: Power O (Default) / Power On / Last State
PME Wake up from S5
The item enables the system to wake from S5 using PME event.
Opons: Disabled (Default) / Enabled
