Biostar TA320-BTC Версия 6.x [21/39] H w monitor

2. Advanced Menu | 21

TB350-BTC / TA320-BTC

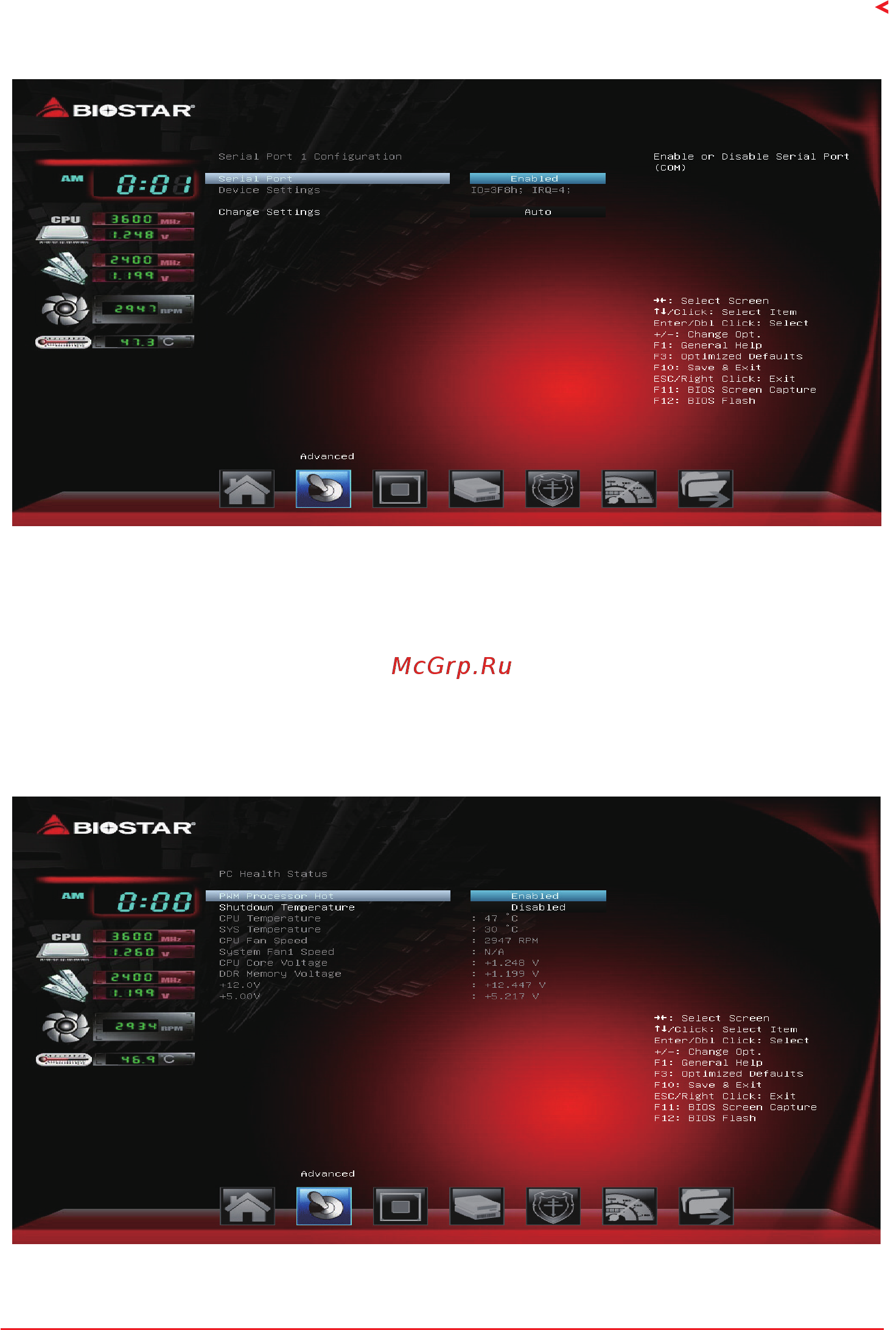

Serial Port 1 Conguraon

Serial Port

This item enabled or Disabled Serial Port (COM).

Opons: Enabled (Default) / Disabled

Change Sengs

This item select an opmal sengs for Super IO Device.

Opons: Auto (Default) / IO=3F8h; IRQ=4 / IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12 / IO=2F8h;

IRQ=3,4,5,6,7,9,10,11,12 / IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12 /

IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12

H/W Monitor

PWM Processor Hot

Opons: Enabled (Default) / Disabled
