A68MDP-LSP/A68MGP-LSP/A68MLP/A70MGP-LSP
3
Specifications
1x Serial Port Header
Form Factor microATX Form Factor, 226 mm x 174 mm
OS Support
Windows XP / 7 / 8 / 8.1 (*Some CPUs may not support Windows XP.)
Biostar reserves the right to add or remove support for any OS with or without
notice.

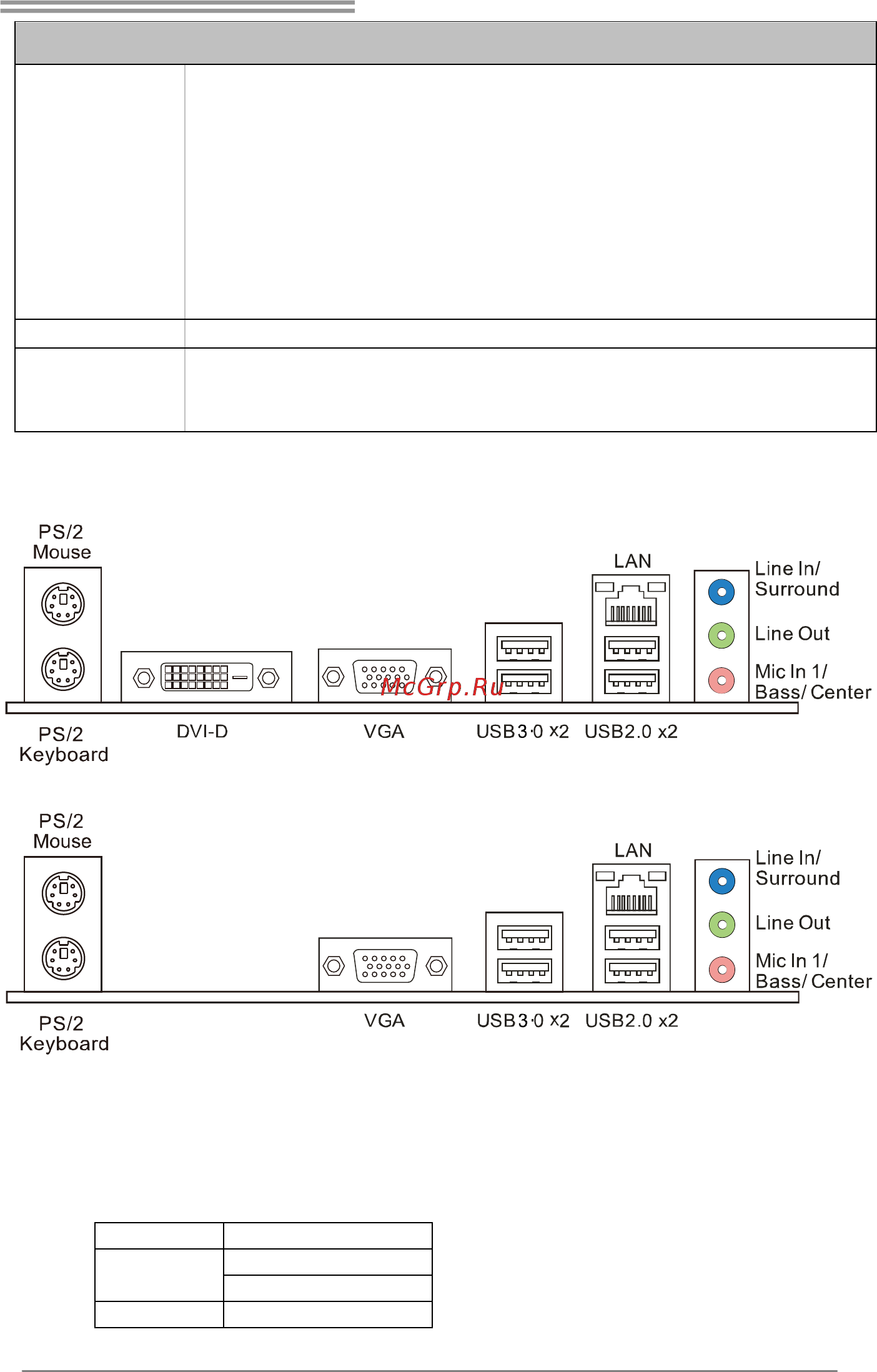

1.4 Rear Panel Connectors
A68MDP-LSP
A68MGP-LSP/A68MLP/A70MGP-LSP
Note 1: DVI-D / VGA output require an AMD family processor with intedrated graphics.
Note 2: Since the audio chip supports High Definition Audio Specification, the function of each
audio jack can be defined by software. The input / output function of each audio jack
listed above represents the default setting. However, when connecting external
microphone to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.
Note 3: Maximum resolution:
Outputs Maximum resolution
DVI-D
1920 x 1200 @60Hz
2560 x 1600 @60Hz
VGA 1920 x 1600 @60Hz
