Biostar A960D+V3 Версия 6.x [38/59] 5 主板布局图

6 | 第一章: 主板介绍

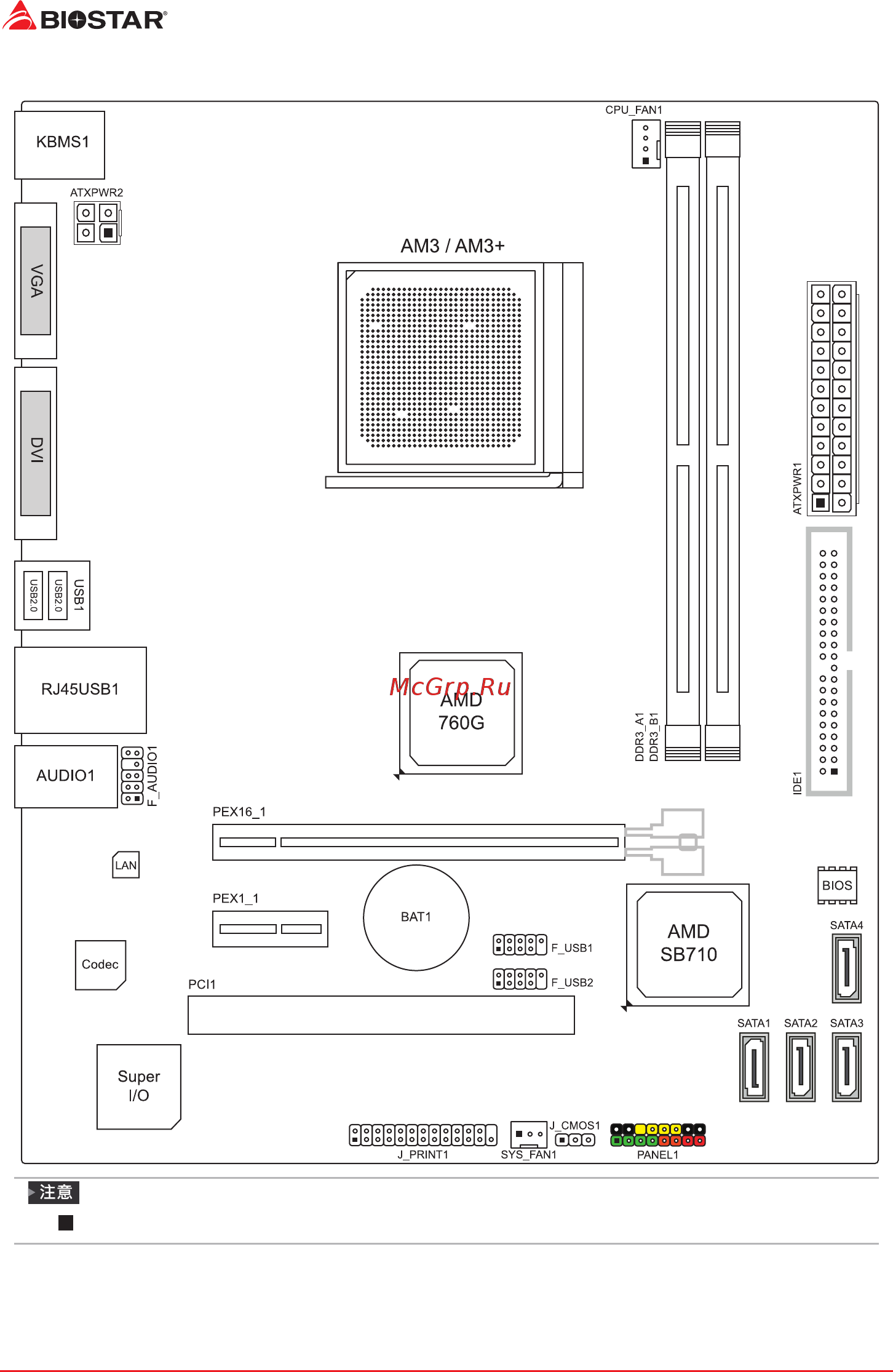

1�5 主板布局图

标示为针脚1

Содержание

Fcc information and copyright 1
Appendix i specifications in other languages 27 2
Chapter 1 introduction 3 2
Chapter 2 hardware installation 7 2
Chapter 3 uefi bios software 16 2
Chapter 4 useful help 23 2
Fcc information and copyright 1 2
Table of contents 2
1 before you start 3
Chapter 1 introduction 3
Package checklist 3
3 specifications 4
Chapter 1 introduction 4
A960d v3 5
Chapter 1 introduction 5 5
Rear panel connectors 5
Chapter 1 introduction 6
Motherboard layout 6
Chapter 2 hardware installation 7
Install central processing unit cpu 7
Chapter 2 hardware installation 8
Install a heatsink 8
Step 1 place the heatsink and fan assembly onto the retention frame match the heatsink clip with the socket mounting lug hook the spring clip to the mounting lug 8
Step 2 on the other side push the retention clip straight down to lock into the plastic lug on the retention frame and then press down the locker until it stops 8
Step 4 hold the cpu down firmly and then close the lever to locked the position 8
A960d v3 9
Chapter 2 hardware installation 9 9
Connect cooling fans 9
Cpu_fan1 cpu fan header 9
Cpu_fan1 sys_fan1support4 pinand3 pinheadconnectors whenconnectingwithwiresonto connectors pleasenotethattheredwireisthepositiveandshouldbeconnectedtopin 2 andthe blackwireisgroundandshouldbeconnectedtopin 1 gnd 9
Ddr3 modules 9
Install system memory 9
Sys_fan1 system fan header 9
These fan headers support cooling fans built in the computer the fan cable and connector may be different according to the fan manufacturer 9
Chapter 2 hardware installation 10
Dual channel memory installation 10
Memory capacity 10
O means memory installed x means memory not installed 10
Please refer to the following requirements to activate dual channel function install memory module of the same density in pairs shown in the table 10
Step 1 unlock a dimm slot by pressing the retaining clips outward align a dimm on the slot such that the notch on the dimm matches the break on the slot 10
Step 2 insert the dimm vertically and firmly into the slot until the retaining clips snap back in place and the dimm is properly seated 10
Expansion slots 11
Install an expansion card 11
Pci1 peripheral component interconnect slots 11
Pex16_1 pci express gen2 x16 slot 11
Pex1_1 pci express gen2 x1 slot 11
Jcmos1 clear cmos jumper 12
Jumper switch setting 12
A960d v3 13
Atxpwr1 atx power source connector 13
Atxpwr2 atx power source connector 13
Beforeyoupoweronthesystem pleasemakesurethatbothatxpwr1andatxpwr2connectors havebeenplugged in insufficientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunctioning properly useofapsuwithahigherpoweroutputisrecommendedwhenconfiguringasystemwith morepower consumingdevices 13
Chapter 2 hardware installation 13 13
For better compatibility we recommend to use a standard atx 24 pin power supply for this connector make sure to find the correct orientation before plugging the connector 13
Headers connectors 13
Panel1 front panel header 13
This 16 pin header includes power on reset hdd led power led and speaker connection 13
This connector will provide 12v to cpu power circuit 13
Chapter 2 hardware installation 14
F_audio1 front panel audio header 14
F_usb1 2 header for usb 2 ports at front panel 14
Itisrecommendedthatyouconnectahigh definitionfrontpanelaudiomoduletothisconnectorto availofthemotherboard shighdefinitionaudiocapability pleasetrytodisablethe frontpaneljackdetection ifyouwanttouseanac 97frontaudiooutput cable thefunctioncanbefoundviao s audioutility 14
Sata1 sata4 serial ata 3 gb s connectors 14
These connectors connect to sata hard disk drives via sata cables 14
This header allows user to add additional usb ports on the pc front panel and also can be connected with a wide range of external peripherals 14
This header allows user to connect the chassis mount front panel audio i o which supports hd and ac 97 audio standards 14
A960d v3 15
Chapter 2 hardware installation 15 15
Ide1 hard disk connector 15
J_print1 printer port connector 15
The motherboard has a 32 bit enhanced ide controller that provides pio mode 0 4 bus master multi word dma and ultra dma 33 66 100 133 functionality 15
This header allows you to connector printer on the pc 15
Bios update 16
Chapter 3 uefi bios software 16
Uefi bios setup 16
Installing software 20
Launching software 20
Software 20
Chapter 3 uefi bios software 22
Enter the file name and then click save your system information will be saved to a txt file 22
Open the saved txt file you will see your system information including motherboard bios cpu video device os information this information is also concluded in the sent mail 22
Chapter 4 useful help 23
Driver installation 23
Ami bios beep code 24
Boot block beep codes 24
Chapter 4 useful help 24
Post bios beep codes 24
Troubleshooting 24
Raid definitions 25
Raid functions 25
A960d v3 27
Appendix i specifications in other languages 27
Appendix i specifications in other languages 27 27
Arabic 27
Appendix i specifications in other languages 28
German 28
A960d v3 29
Appendix i specifications in other languages 29 29
Russian 29
Спецификации 29
Appendix i specifications in other languages 30
Spanish 30
A960d v3 31
Appendix i specifications in other languages 31 31
Fcc条款 33
免责说明 33
防静电操作规则 33
目录 34
第一章主板介绍 3 34
第三章 uefi bios和软件 16 34
第二章硬件安装 7 34
第四章帮助信息 23 34
附录i 产品中有毒有害物质或元素的名称及含量 27 34
1 前言 35
第一章主板介绍 35
3 主板特性 36
第一章主板介绍 36
4 后置面板接口 37
A960d v3 37
第一章主板介绍 5 37
5 主板布局图 38
第一章主板介绍 38
1 中央处理器 cpu 39
第二章硬件安装 39
2 散热片 40
步骤 1 将散热片和风扇组件放置在支架上散热片夹对准插座固定凸耳再将弹簧夹扣到固定凸耳上 40
步骤2 将另一边的固定夹向下压扣住支架上的塑胶凸耳然后固定使风扇和散热片扣住支架底座 40
步骤4 固定cpu 将拉杆闭合 40
第二章硬件安装 40
3 风扇接头 41
4 系统内存 41
A960d v3 41
Cpu_fan1 cpu 风扇接头 41
Cpu_fan1 sys_fan1支持4针脚和3针脚接口接线时请注意红线是正极需接到第二个针脚黑线接地需接到gnd针脚 41
Ddr3内存模组 41
Sys_fan1 系统风扇接头 41
此风扇接头支持电脑内置的冷却风扇风扇引线和插头可能因制造商而异 41
第二章硬件安装 9 41
O 表示内存已安装 x 表示内存未安装 42
为激活主板双通道功能使用内存模组必须符合以下要求成对安装相同密度的内存模组如下表所示 42
内存容量 42
双通道内存安装 42
步骤1 向外推开固定夹打开dimm插槽将dimm按顺序放在插槽上 dimm上的切口须与插槽凹口匹配 42
步骤2 垂直插入dimm并固定好直到固定夹跳回原位 dimm就位 42
第二章硬件安装 42
5 扩展槽 43
Pci1 外围设备互联插槽 43
Pex16_1 pci express gen2 x16 插槽 43
Pex1_1 pci express gen2 x1 插槽 43
安装扩展卡 43
6 跳线设置 44
Jcmos1 清空cmos 跳线 44
7 接口和插槽 45
A960d v3 45
Atxpwr1 atx电源接口 45
Atxpwr2 atx电源接口 45
Panel1 前置面板接头 45
为了更好的兼容性我们建议使用标准的atx24 pin电源供应此接口的电源 45
开机前请确保atxpwr1和atxpwr2接口都已插上电源电压不足可能导致系统不稳或者外围设备不能正常运行当配置使用大功率设备的系统时建议您使用带有大功率输出的电源 45
此16针脚接口包含开机重启硬盘指示灯电源指示灯和扬声器接口 45
此接口给cpu电路提供 12v电压 45
第二章硬件安装 13 45
F_audio1 前置面板音频接头 46
F_usb1 2 前置面板usb 2 0接头 46
Pc前置面板支持附加的usb数据线也可连接即插即用外围设备 46
Sata1 sata4 串行ata 3 0 gb s 接口 46
建议您连接前置高清音频插孔享用主板高清音频功能如果要连接ac 97前置音频输出数据线请关闭前置面板插孔检测功能此功能在系统音频工具中可见 46
此接口通过sata数据线连接sata硬盘 46
此接头可连接音频输出数据线支持hd 高清音频和ac 97 46
第二章硬件安装 46
A960d v3 47
Ide1 硬盘连接器 47
J_print1 打印机端口 47
主板有一个32位增强型ide控制器提供pio模式0 4 总线主控多字dma以及ultra dma 33 66 100 133功能 47
此接头可连接打印机端口 47
第二章硬件安装 15 47
1 uefi bios设置 48
2 刷新bios 48
第三章 uefi bios和软件 48
3 软件 52
启动软件 52
安装软件 52
打开已保存的文本文件显示相关系统信息包括主板 bios cpu 视频设备 os 这些信息当然也在已发送的邮件里 54
第三章 uefi bios和软件 54
输入文件名点击 save 系统信息将被保存至文本文件里 54
1 驱动程序安装注意事项 55
第四章帮助信息 55
2 ami bios 哔声代码 56
3 问题解答 56
Bios 开机自检哔声代码 56
引导模块哔声代码 56
4 raid 功能 57
Raid 定义 57
A960d v3 59
第四章帮助信息 27 59
附录i 产品中有毒有害物质或元素的名称及含量 59
