Biostar A960D+V3 Версия 6.x [47/59] Ide1 硬盘连接器

第二章: 硬件安装 | 15

A960D+V3

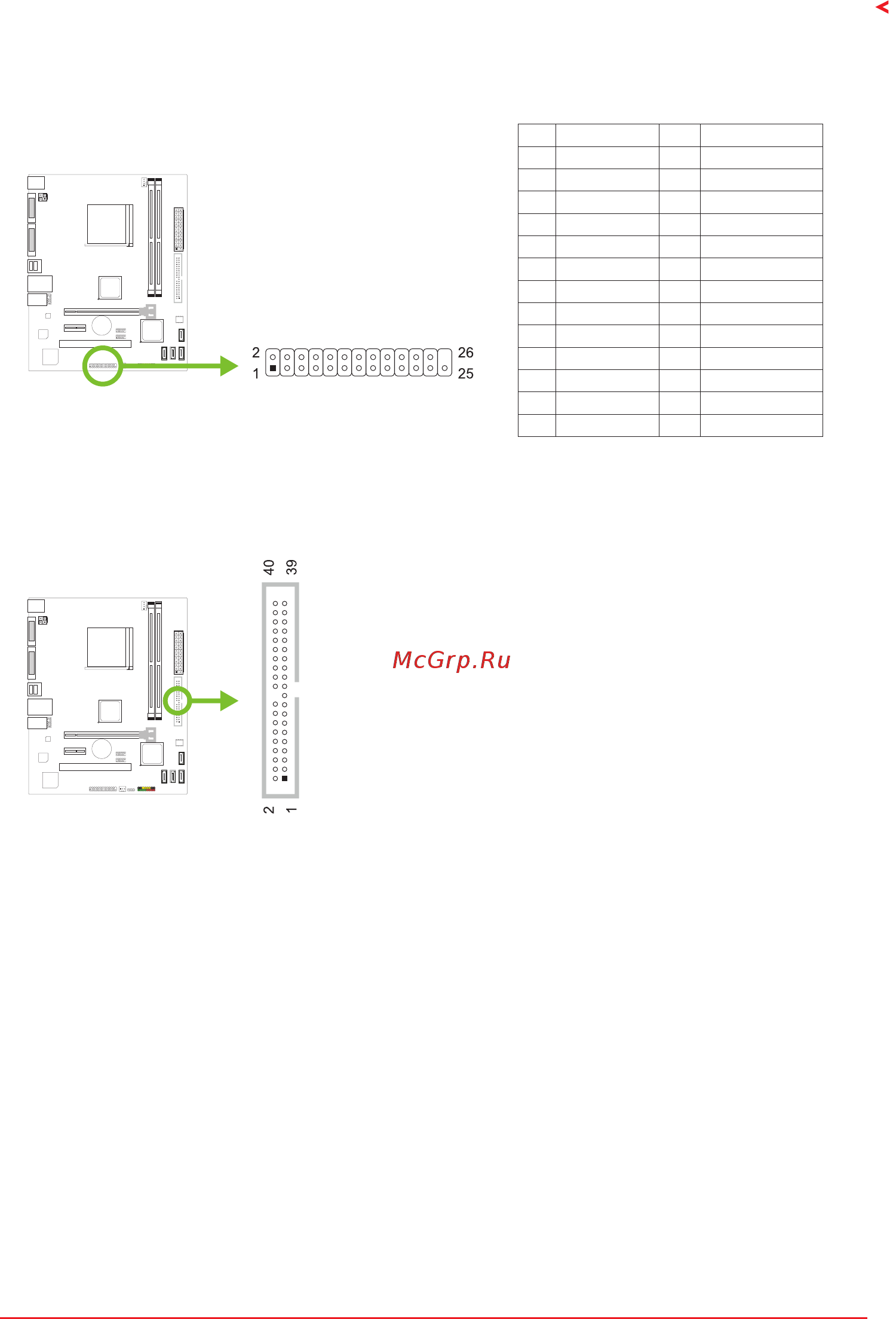

J_PRINT1: 打印机端口

此接头可连接打印机端口。

针定义针定义

1 -Strobe 14 接地

2 -ALF 15 Data 6

3 Data 0 16 接地

4 -Error 17 Data 7

5 Data 1 18 接地

6 -Lnit 19 -ACK

7 Data 2 20 接地

8 -Scltin 21 Busy

9 Data 3 22 接地

10 接地 23 PE

11 Data 4 24 接地

12 接地 25 SCLT

13 Data 5 26 Key

IDE1: 硬盘连接器

主板有一个32位增强型IDE控制器，提供PIO模式0〜4，总线主控，多字DMA以及Ultra

DMA 33/66/100/133功能。
