Motherboard Manual

2.4 CONNECTORS AND SLOTS

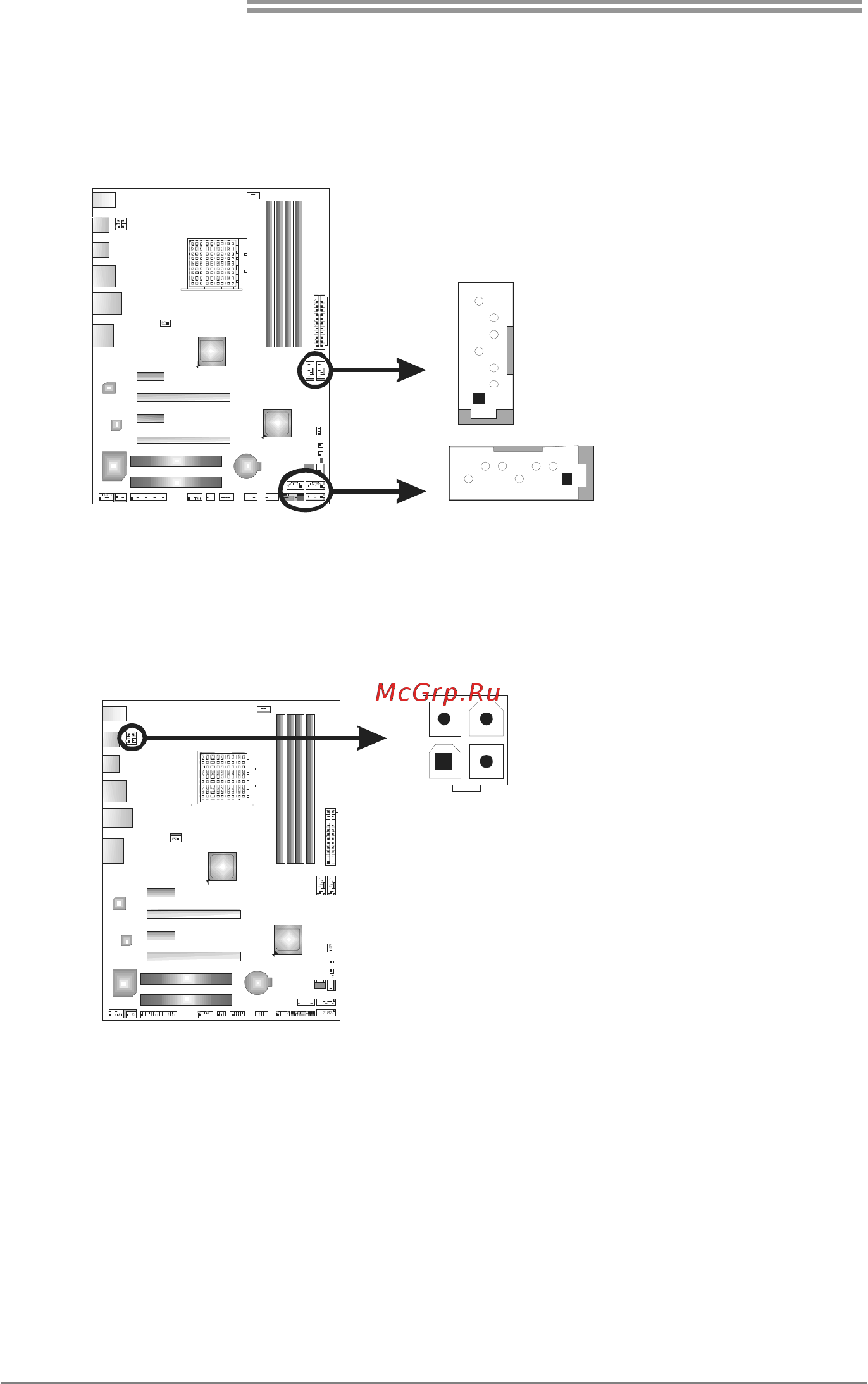

SATA1~SATA5: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 5 channels SATA interface,

it satisfies the SATA 3.0 spec and with transfer rate of 6.0Gb/s.

Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

SATA1 SATA3

SATA2

S ATA5 SATA 4

7 Ground

ATXPWR2: ATX Power Source Connector

This connector provides +12V to CPU power circuit.

Assignment

1 +12V

2 +12V

3 +12V

4 +12V

5 Ground

6 Ground

7 Ground

8 Ground
