Motherboard Manual

4.3 AMD DUAL GRAPHICS SETUP

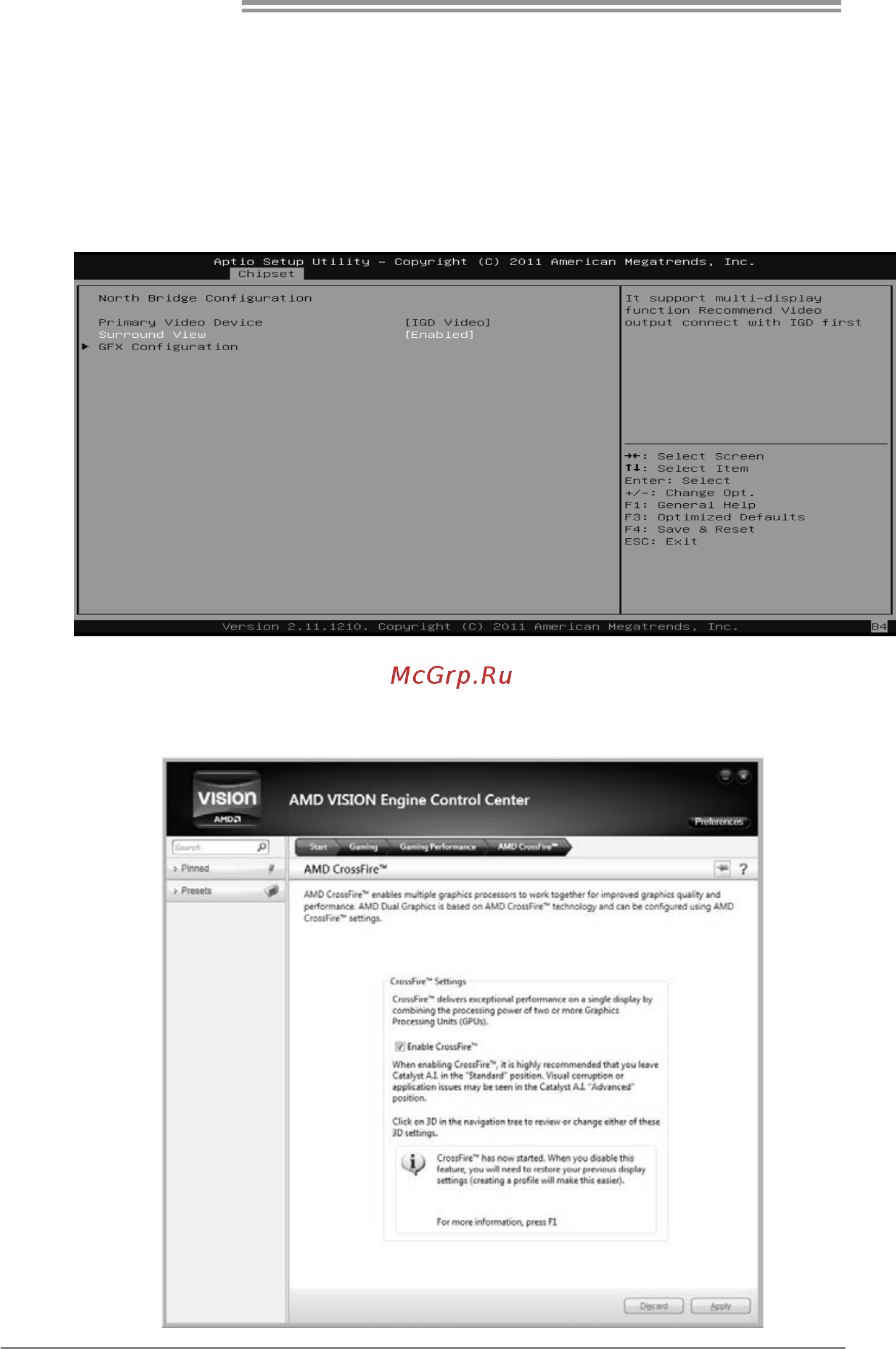

Step 1: Insert Dual Graphics-Ready graphics card into PEX16_1 slot.

Step 2: Set the BIOS setting as follows:

[Chipset]→[North Bridge]→[Surround View]→[Enabled]

Step 3: Install Driver CD Chipset Driver, and reboot the system. Activate AMD

VISION Engine Control Center to make sure CrossFire has been

enabled.
