Biostar A55MLC Версия 6.x [5/53] A55mlv a55mlc

A55MLV & A55MLC

SPEC

Printer Port Connector x1 Each connector supports 1 Printer port

Serial Port Connector x1 Connects to RS-232 Port

Power Connector (24-Pin) x1 Connects to Power supply

Power Connector (4-Pin) x1 Connects to Power supply

Rear Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

VGA Port x1

LAN port x1

USB2.0 Port x4

Audio Jack x3

Connects to PS/2 Keyboard

Connects to PS/2 Mouse

Connect to D-SUB monitor

Connect to RJ-45 ethernet cab le

Connect to USB2.0 devices

Provide Audio-In/Out and Mic. connection

Board Size

182.5 mm (W) x 230 mm (L) uATX

OS Support

Windows XP / Vista / 7

Biostar reserves the right to add or remove support

for any OS With or without notice.

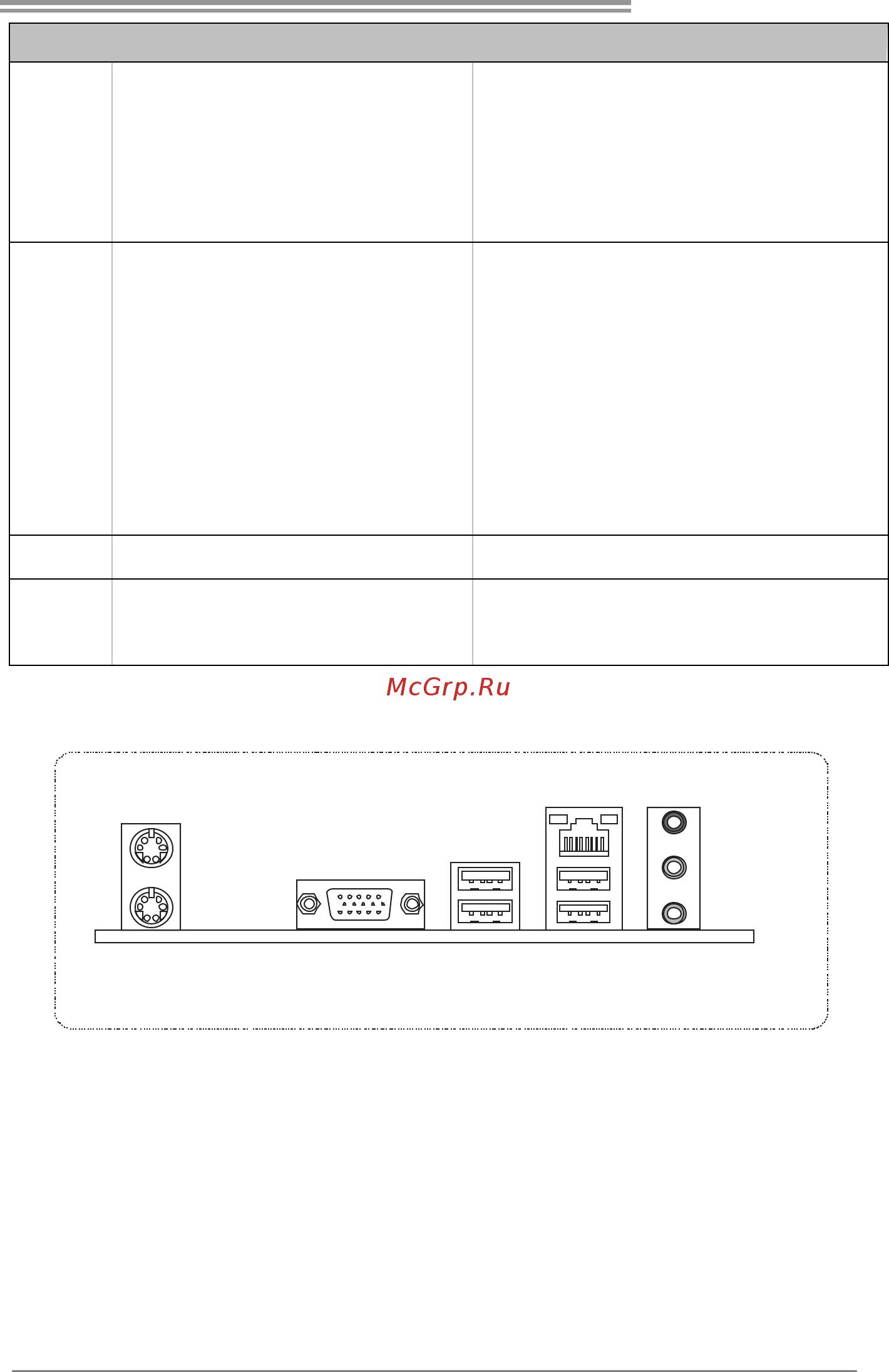

1.4 REAR PANEL CONNECTORS

USB2.0X2

LAN

Line In/

Surround

Line Out

Mic In 1/

Bass/ Center

VGA

PS/2

Mouse

PS/2

Keyboard

US B2.0X 2

NOTE: Maximum resolution:

VGA: 1920 x 1600 @75Hz
