Biostar TA790GX A2+ Версия 5.x [10/71] Eaders

Motherboard Manual

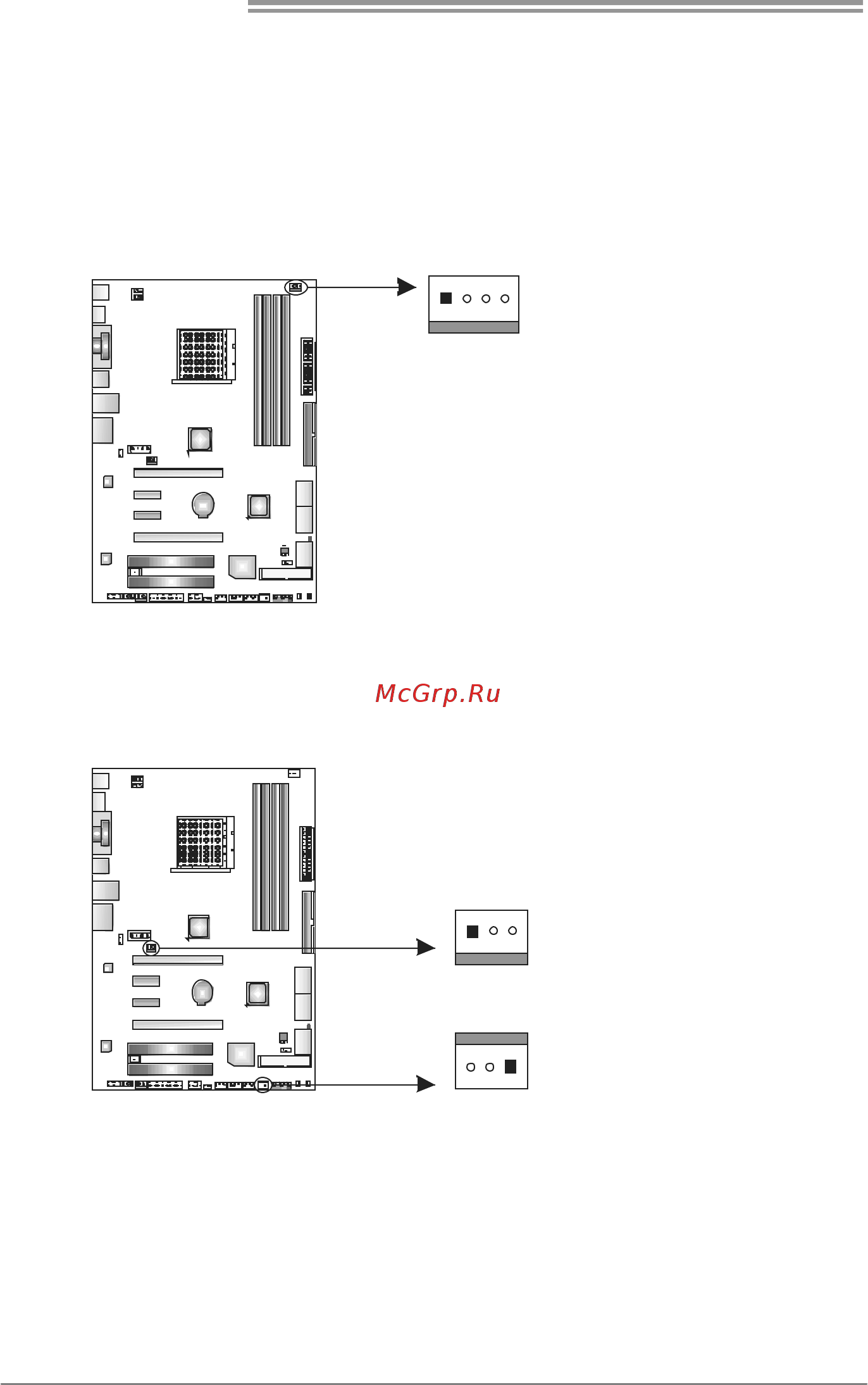

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan

cable and connector may be different according to the fan manufacturer.

Connect the fan cable to the connector while matching the black wire to

pin#1.

JCFAN1: CPU Fan Header

Assignment

1 Ground

2 +12V

FAN RPM rate

sense

4 Smart Fan

Control (By Fan)

JNFAN1: NorthBridge Fan Header

JSFAN1: System Fan Header

Pin Assignment

1 Ground

2 +12V

JNFAN1

JSFAN1

FAN RPM

rate sense

Note:

The JCFAN1, JNFAN1, and JSFAN1 support 4-pin and 3-pin head connectors. When

connecting with wires onto connectors, please note that the red wire is the positive and

should be connected to pin#2, and the black wire is Ground and should be connected to

GND.
