Planet FT-802S50 [10/18] Installing the converter

Chapter 6

Installing the Converter

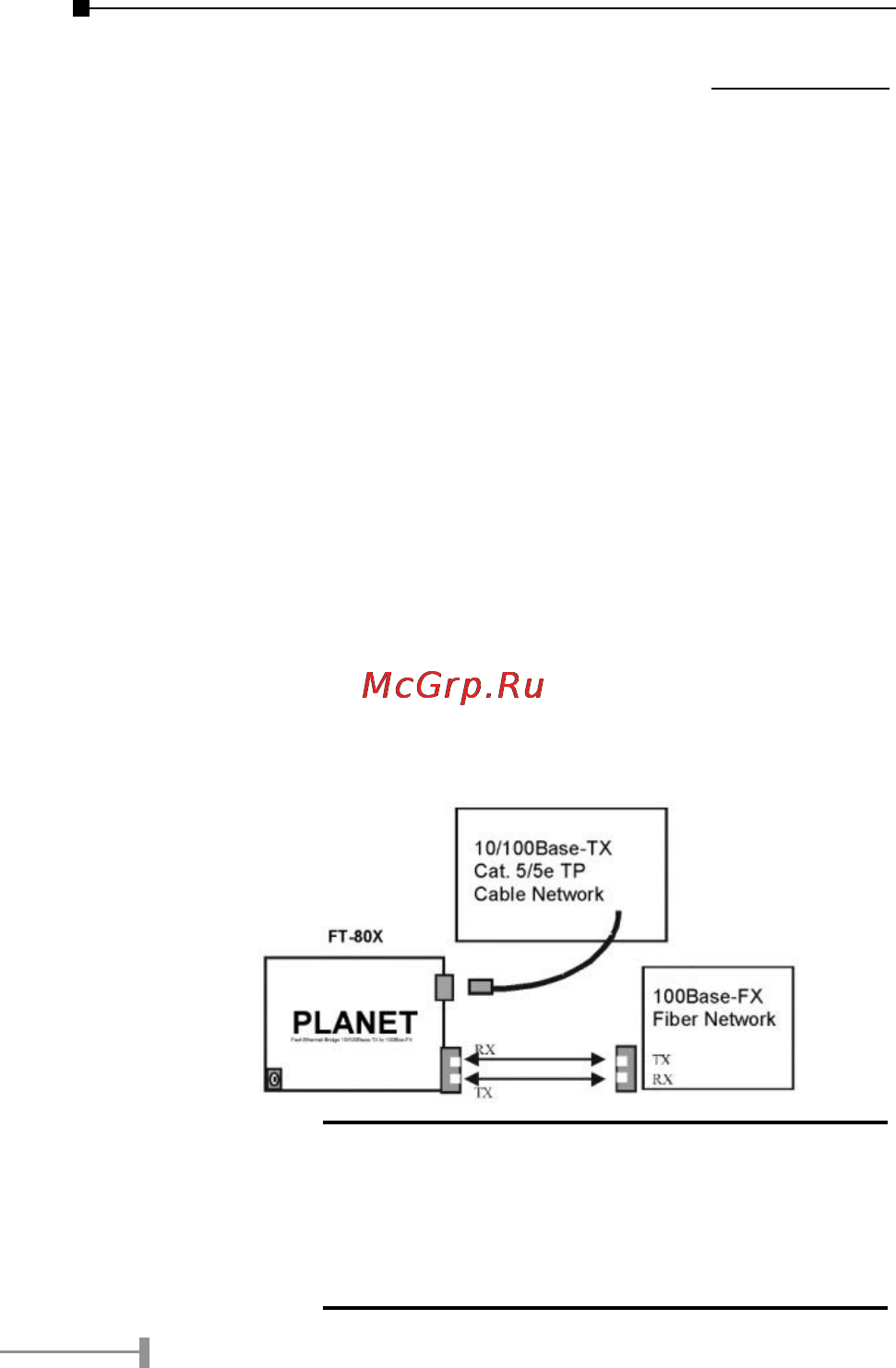

Please follow these steps to install the converter:

• Turn off the power of the device/station in a network to

which the FT-80X will be attached

• Ensure that there is no activity in the network

• Attach fiber cable from the FT-80X to the fiber network.

TX, RX must be paired at both ends

• Attach a Cat. 5 UTP cable from the 10/100Base-TX net-

work to the RJ-45 port on the FT-80X.

• Connect the 5VDC power adapter to the FT-80X and

verify that the Power LED lights up.

• Turn on the power of the device/station, the TX Link and

FX Link LEDs should light when all cables are attached

• Turn on the power of the device/station, the TX Link and

FX Link LEDs should light when all cables are attached

 NOTE:

• RJ-45/STP, UTP Cat 5, straight/crossover

cable is accepted

• Please refer to section 8 for more about

the wiring distance of your TP, Optic-ber

networks.
