MCP6P M2+/N68S+ BIOS Setup

CPU Internal Cache

Depending on the CPU/chipset in use, you may be able to increase memory

access time with this opt ion.

Enabled (default) Enable cache.

Disabled Disable cache.

External Cache

This option enables or disables “Level 2” secondary cache on the CPU, which

may improve performance.

Enabled (default) Enable cache.

Disabled Disable cache.

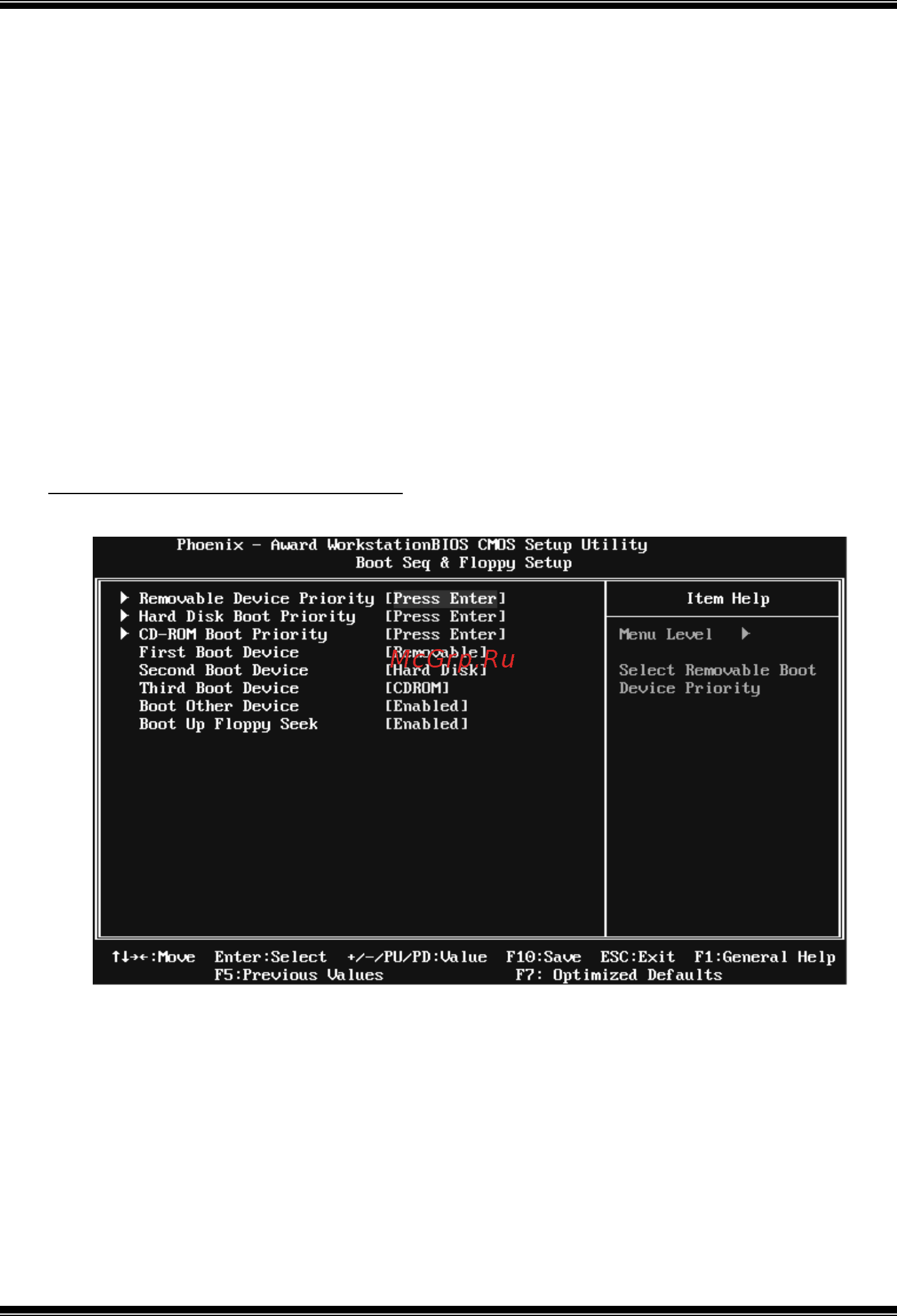

Boot Seq & Floppy Setup

This item allows you to setup boot sequence & Floppy.
