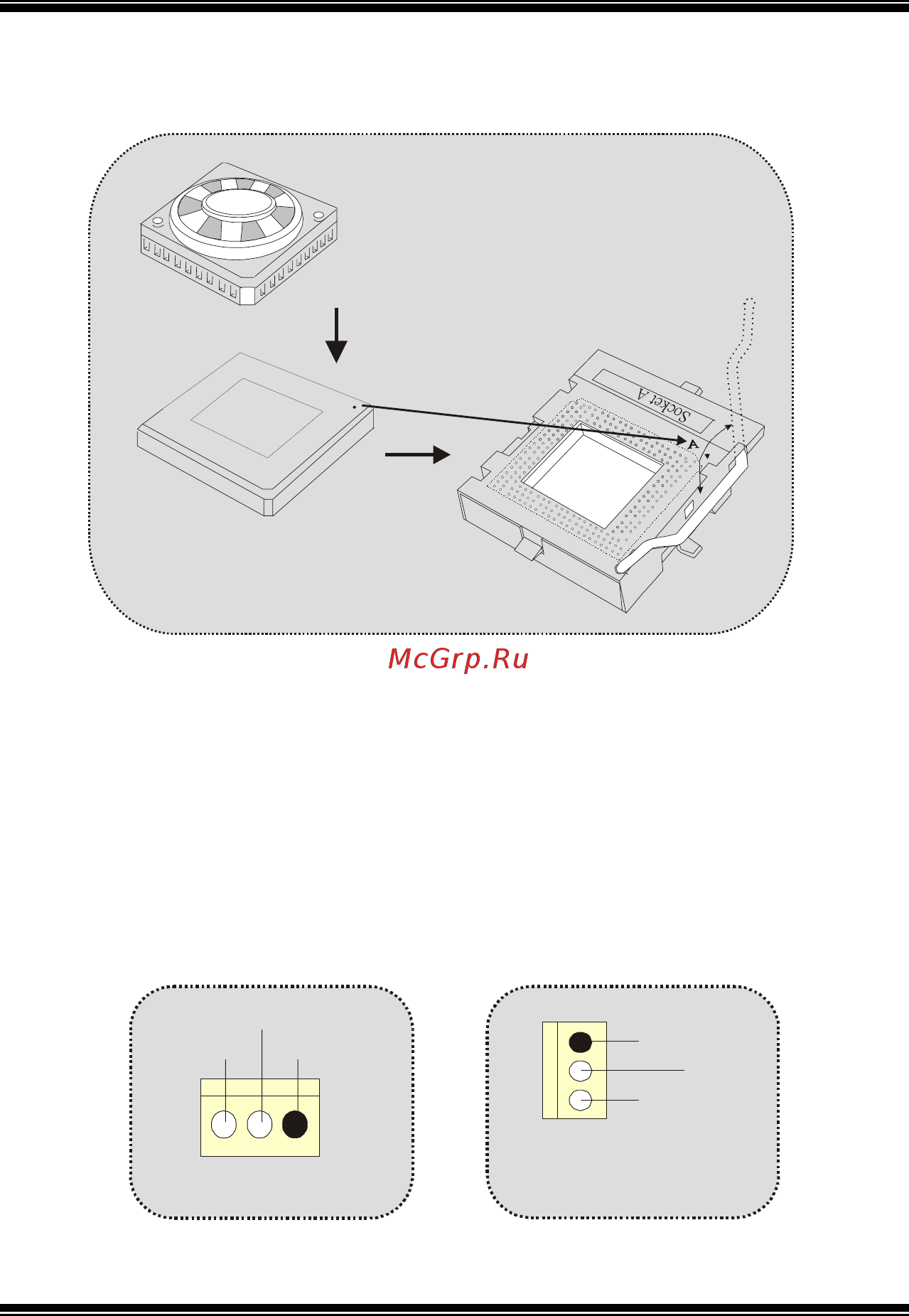

CPU Installation
1. Pull the lever sideways away from the socket then raise the lever up to
90-degree angle.
2. Locate Pin A in the socket and lock for the white dot or cut edge in the
CPU. Match Pin A with the white dot/cut edge then insert the CPU.
3. Press the lever down. Then Put the fan on the CPU and buckle it and
put the fan’s power port into the JCFAN1, then to complete the
installation.
CPU/ System Fan Headers: JCFAN1/ JSFAN1
C
P
U
JSFAN1
Ground
12V
Sense
1
JCFAN1
1
Ground
12V
Sense
