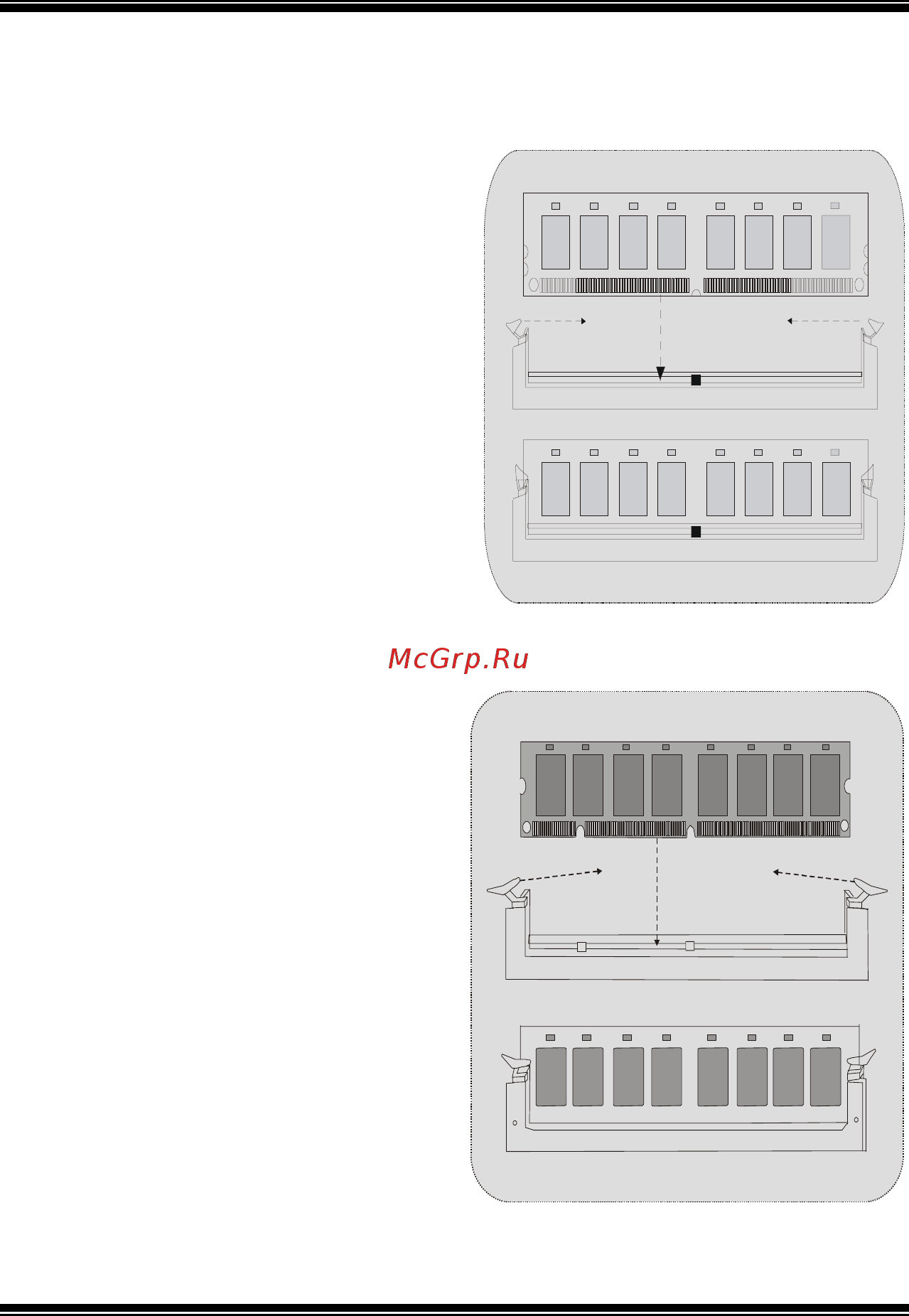

How to install a DIMM Module

DDR DIMM Module

1. The DIMM socket has a “ Plastic

Safety Tab”, and the DIMM memory

module has an “Asymmetrical

notch”, so the DIMM memory

module can only fit into the slot in

one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will fit

into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM memory modules in

place.

SDRAM DIMM Module

1. The DIMM socket has a “ Plastic

Safety Tab”, and the DIMM

memory module has an

“Asymmetrical notch”, so the

DIMM memory module can only fit

into the slot in one direction.

2. Push the tabs out. Insert the

DIMM memory modules into the

socket at a 90-degree angle, then

push down vertically so that it will

fit into the place.

3. The Mounting Holes and plastic

tabs should fit over the edge and

hold the DIMM

memory modules in place.
