There are 8 wires on a standard UTP/STP cable and each wire is

color-coded. The following shows the pin allocation and color of

straight cable and crossover cable connection:

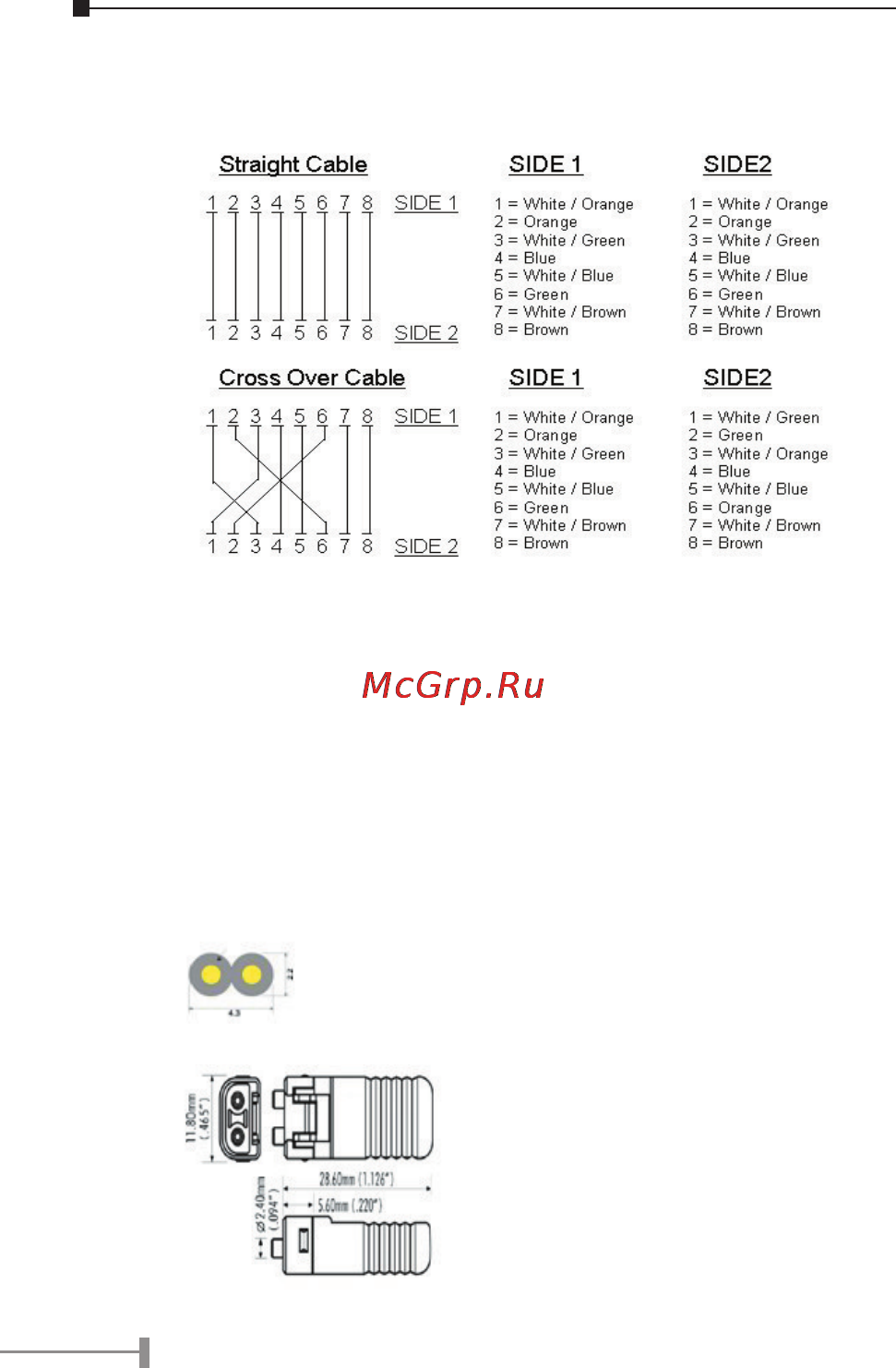

Figure A-1: Straight-Through and Crossover Cable

Please make sure your connected cables are with same pin

assignment and color as above picture before deploying the cables

into your network.

A.2 100Mbps, 100Base-FX, SMI type connector

FT-807 is using POF SMI type connector that is mostly being

used for IEEE1394 transmission. The followings show the basic

information.

The POF Cable should be a dual wire cable with

0.98mm optic core with cladding diameter 1mm.

Also with jacket in diameter: 2.2 mm.

The SMI connector will as like the ﬁgure

left. You can check with your network

device dealer or administrator for the

availability of the cable and connector.
