APPENDEX A

Appendix A: RJ-45 pin assignment and

cable system

A.1 10/100Mbps, 10/100Base-TX

When connecting your 10/100Mbps Ethernet Switch to another

switch, a bridge or a hub, a straight or crossover cable is

necessary. Each port of the Switch supports auto-MDI/MDI-X

detection. That means you can directly connect the Switch to any

Ethernet devices without making a crossover cable. The following

table and diagram show the standard RJ-45 receptacle/ connector

and their pin assignments:

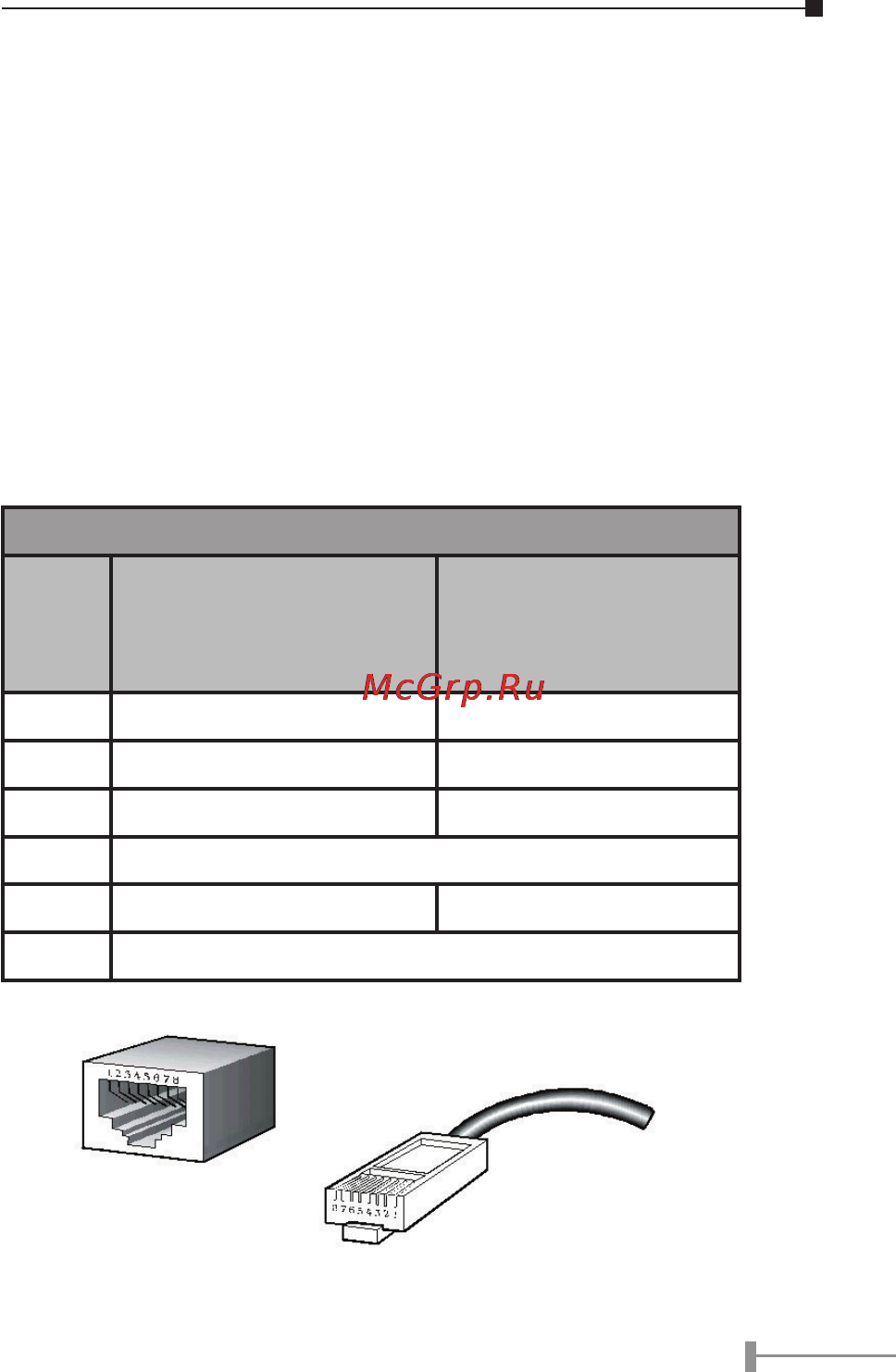

RJ-45 Connector pin assignment

Con-

tact

MDI

Media Dependant

Interface

MDI-X

Media Dependant

Interface -Cross

1 Tx + (transmit) Rx + (receive)

2 Tx - (transmit) Rx - (receive)

3 Rx + (receive) Tx + (transmit)

4, 5 Not used

6 Rx - (receive) Tx - (transmit)

7, 8 Not used

The standard cable, RJ-45 pin assignment

The standard RJ-45 receptacle/connector
